Pinpoint Test L: The Stability Assist Indicator Does Not Self-Check

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

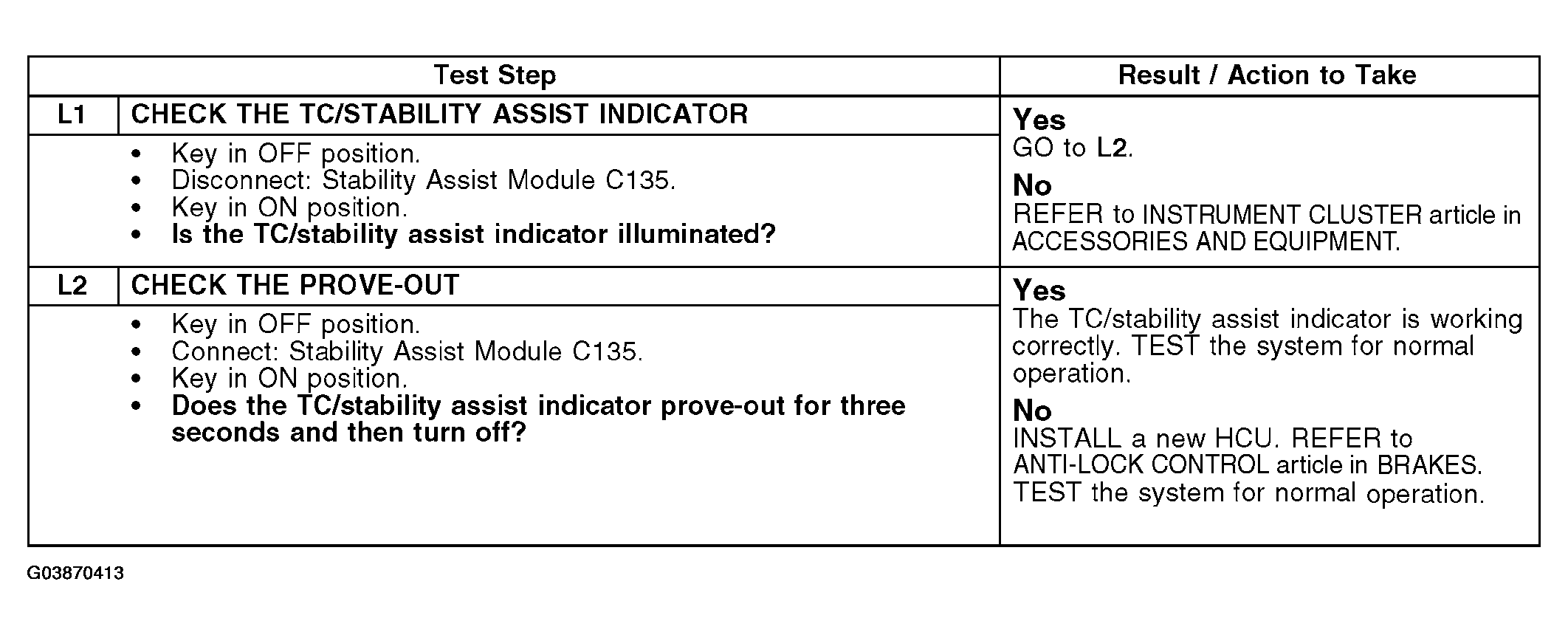

Fig 1: Pinpoint Test L: Stability Assist Indicator Does Not Self-Check (Step L1-L2)
G03870413Courtesy of FORD MOTOR CO.
