Pinpoint Test N: The Stability Assist/Traction Control Indicator Is Never/Always On

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

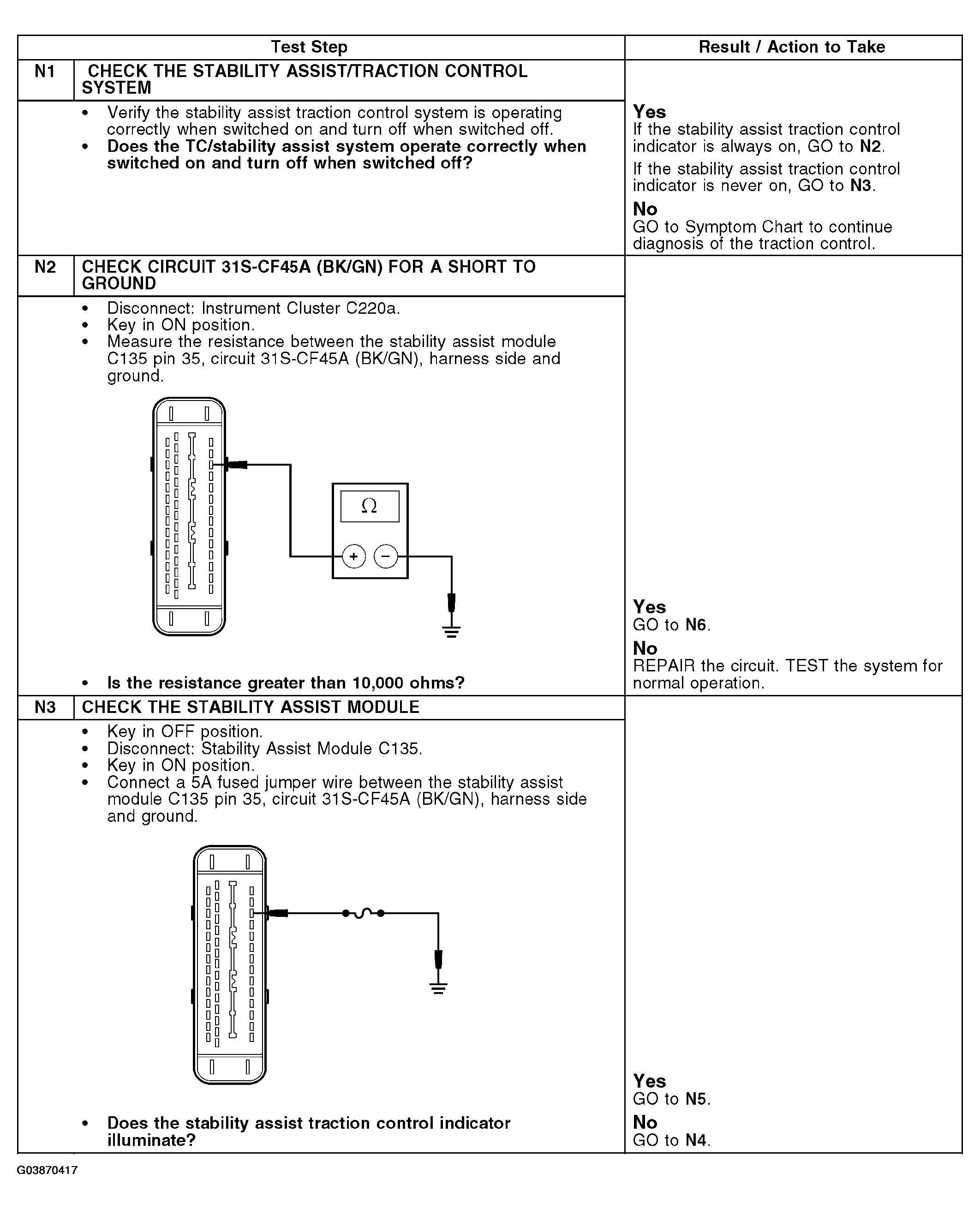

Fig 1: Pinpoint Test N: Stability Assist/Traction Control Indicator Is Never/Always On (Step N1-N3)
G03870417Courtesy of FORD MOTOR CO.

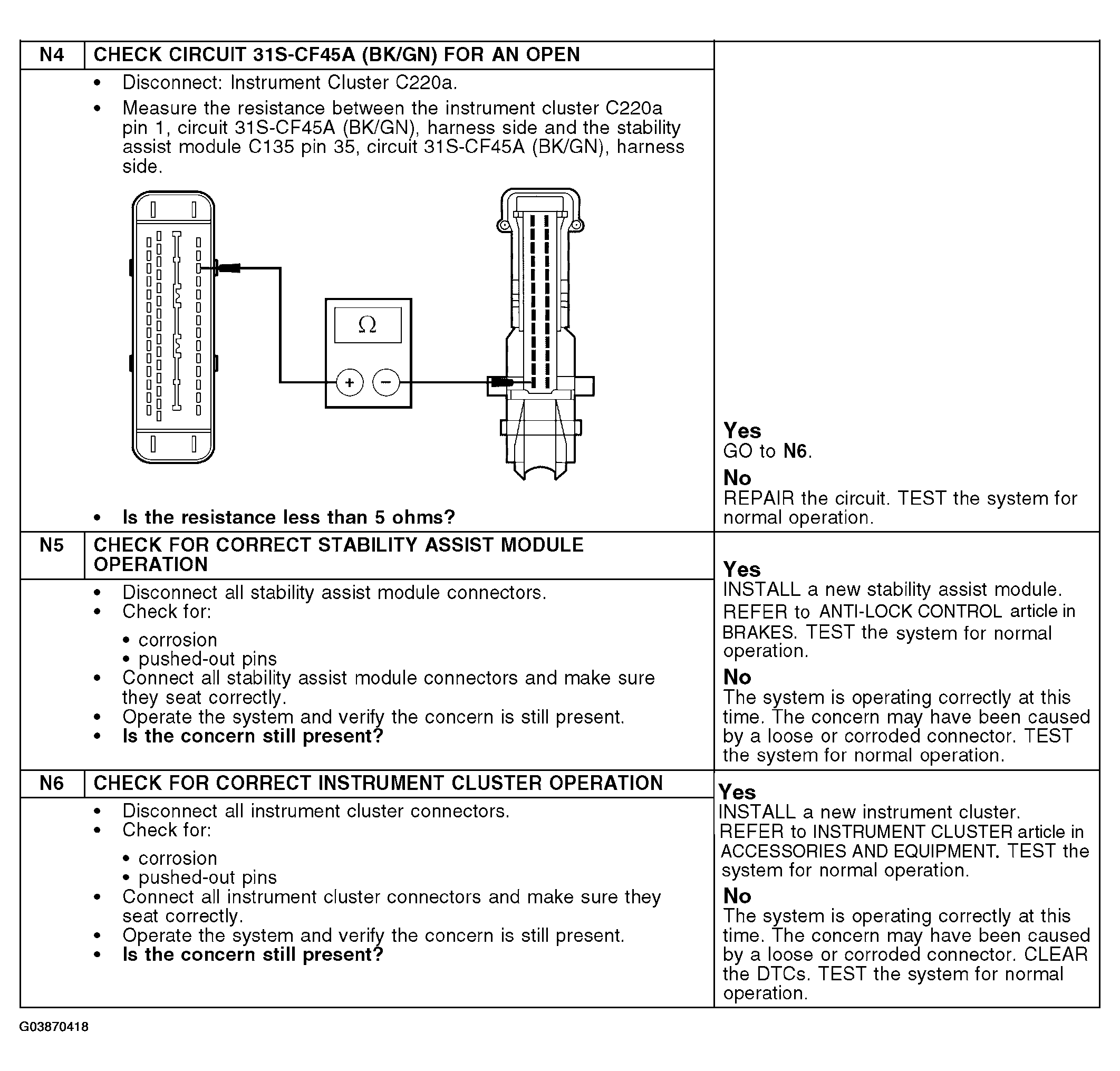

Fig 2: Pinpoint Test N: Stability Assist/Traction Control Indicator Is Never/Always On (Step N4-N6)
G03870418Courtesy of FORD MOTOR CO.
