Pinpoint Test A: No Communication With Traction Control Module

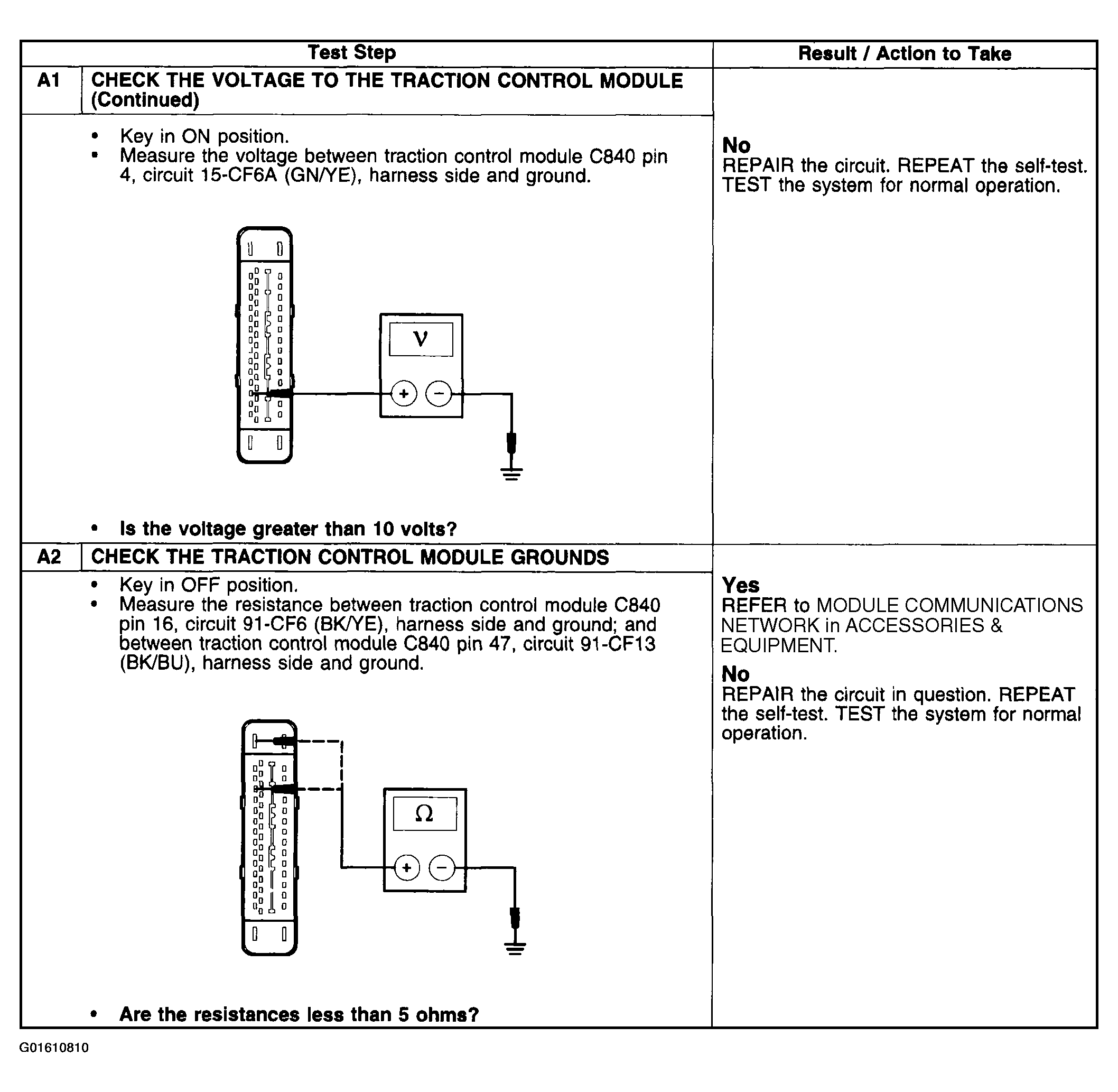

Fig 1: Pinpoint Test A: No Communication With Traction Control Module (A1)

Courtesy of FORD MOTOR CO.

Fig 2: Pinpoint Test A: No Communication With Traction Control Module (A1 Cont.-A2)

Courtesy of FORD MOTOR CO.
