Pinpoint Test B: Brake Pedal Position Input Circuit

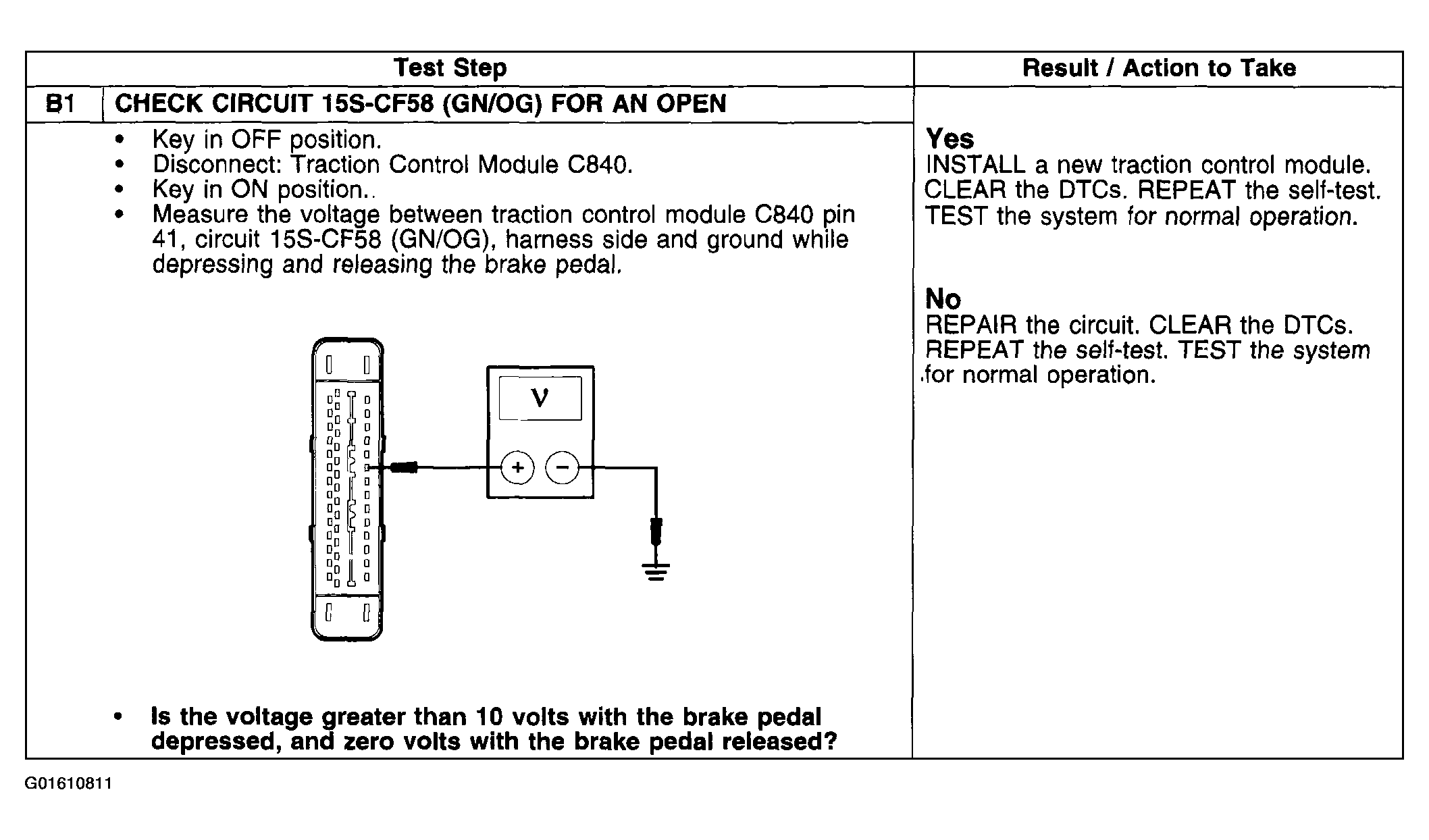

Fig 1: Pinpoint Test B: Brake Pedal Position Input Circuit (B1)
G01610811Courtesy of FORD MOTOR CO.
