Traction Control Module Parameter Identification (PID) Index

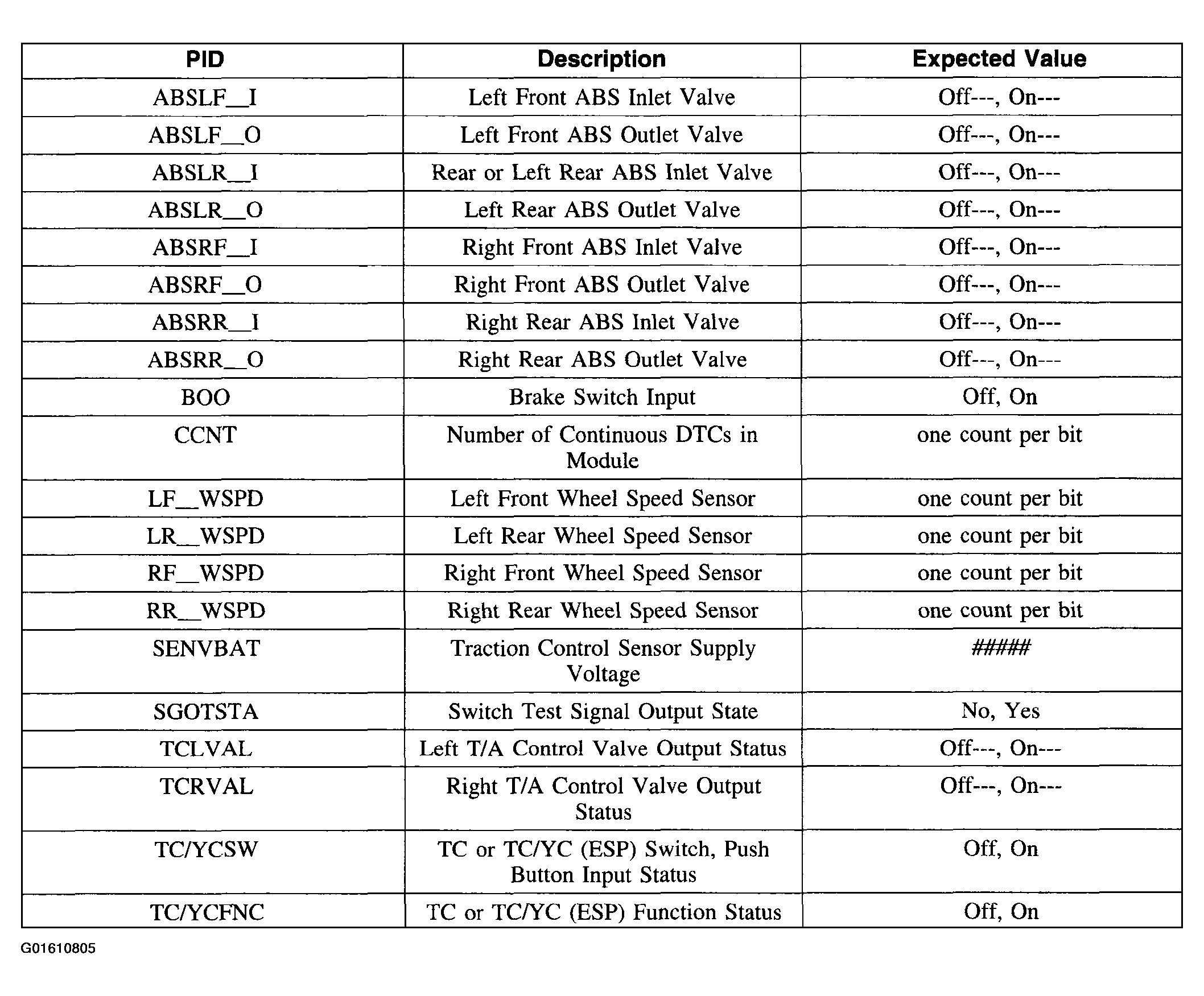

Fig 1: Traction Control Module Parameter Identification Index
G01610805Courtesy of FORD MOTOR CO.
