Central Junction Box

NOTE: Central junction box may also be referred to as passenger compartment fuse panel.

NOTE: Central junction box is located under driver's side of instrument panel. See Fig 1.

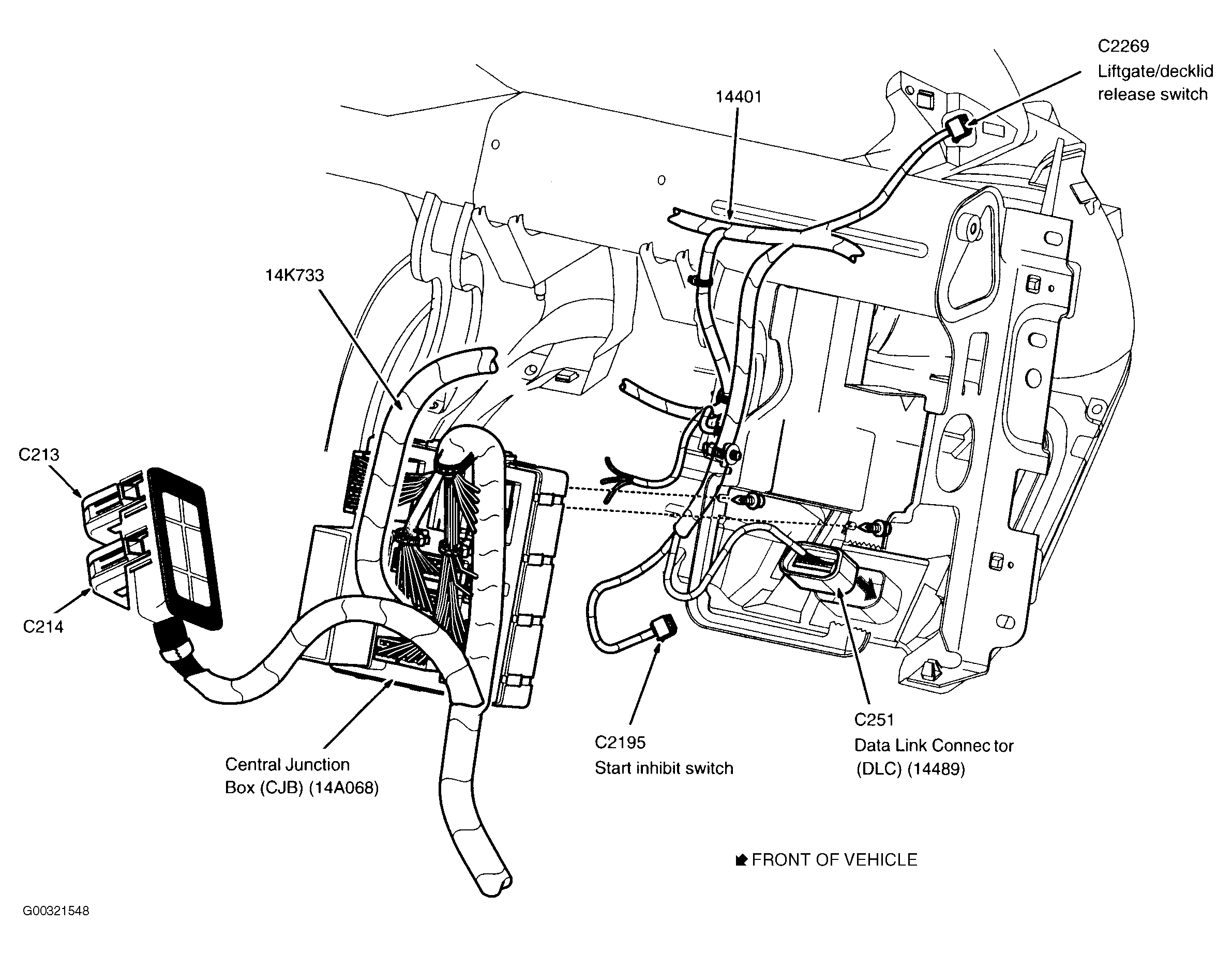

Fig 1: Locating Central Junction Box

Courtesy of FORD MOTOR CO.

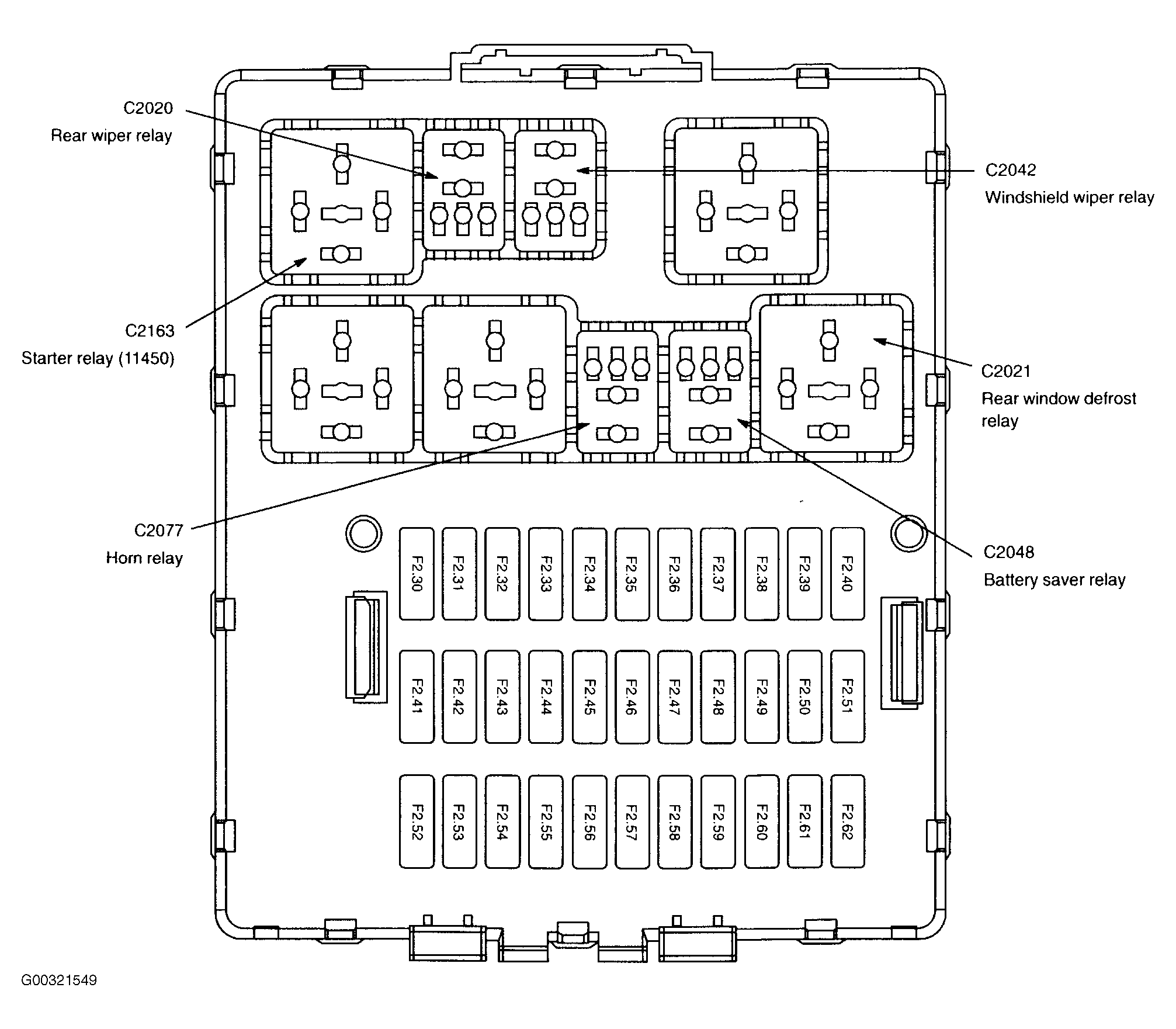

Fig 2: Identifying Central Junction Box Components, Fuses And Relays

Courtesy of FORD MOTOR CO.

CENTRAL JUNCTION BOX RELAY IDENTIFICATION

CENTRAL JUNCTION BOX FUSE IDENTIFICATION LEGEND

Fuse	Amps	Circuits protected
F2.30	10	Light switch
F2.31	15	Radio (18806)
F2.32	15	Generic Electronic Module (GEM) (14B205)
F2.33	20	Power seats, Horn
F2.34	20	Roof opening panel unit
F2.35	7.5	Battery saver
F2.36	7.5	Instrument cluster, Heater control module (19980), Hazard flasher switch, Battery saver relay
F2.37	-	not used
F2.38	-	not used
F2.39	-	not used
F2.40	10	Reversing lamps
F2.41	7.5	Radio (18806), Instrument cluster
F2.42	15	Stoplamps, speed control
F2.43	15	Wiper/washer, Rear, Power sliding roof
F2.44	20	Light switch
F2.45	7.5	Heater control module (19980)
F2.46	7.5	ABS control module (2C219)
F2.47	20	Power point (19N236), Cigar lighter, front (15055)
F2.48	10	Data Link Connector (DLC) (14489)
F2.49	25	Rear window defrost grid (18C618)
F2.50	7.5	Power mirrors
F2.51	-	not used
F2.52	15	Heated seats
F2.53	10	speed control, Park/neutral position (PNP) switch
F2.54	25	Master window adjust switch (14529)
F2.55	25	Power Windows
F2.56	20	Wiper and Washer
F2.57	7.5	Exterior lamps, Right
F2.58	7.5	Exterior lamps, Left
F2.59	7.5	Headlamps
F2.60	7.5	Restraints control module (14B321)
F2.61	7.5	Passive anti-theft transceiver module (15607), Instrument cluster
F2.62	7.5	License plate lamps
F2.63	20	Generic Electronic Module (GEM) (14B205)
