Catalytic Converter-2.0L SPI: Installation

Position and support the catalytic converter.
Loosely install the lower clamp.

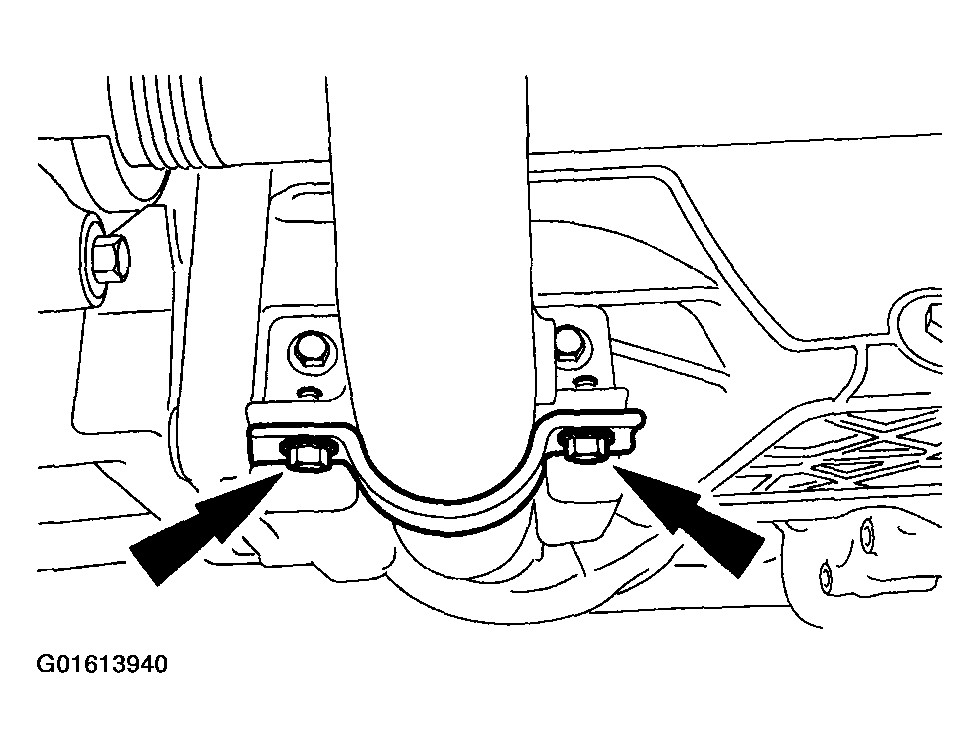

Fig 1: Loosening Lower Clamp
Courtesy of FORD MOTOR CO.
Remove the support.
Lower the vehicle.

CAUTION: Never use jointing compound forward of the catalytic converter.

Install the catalytic converter to the manifold.
- Use a new gasket and nuts.

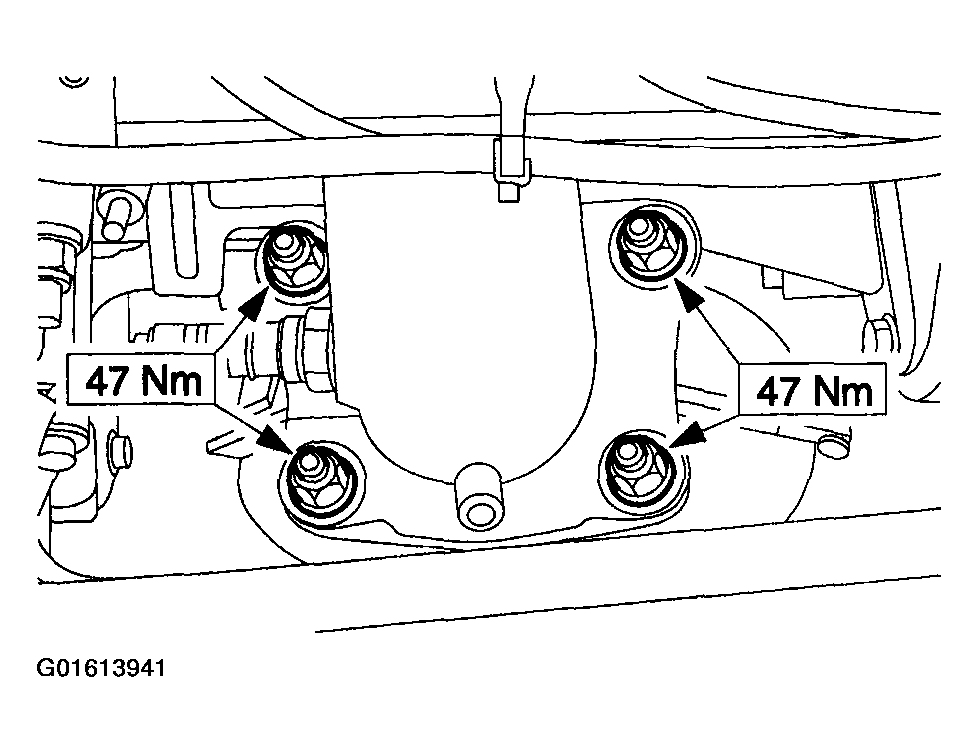

  Fig 2: Installing Catalytic Converter To Manifold
  Courtesy of FORD MOTOR CO.
Install the heat shield.

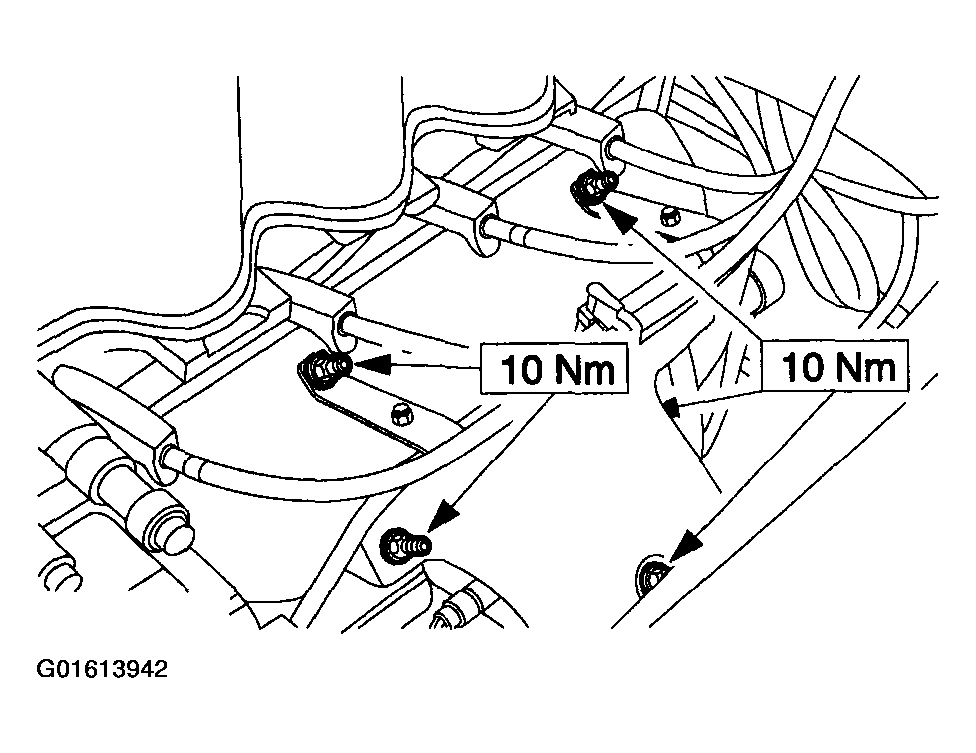

Fig 3: Installing Heat Shield
Courtesy of FORD MOTOR CO.
Raise and support the vehicle. For additional information, refer to JACKING & HOISTING .
Connect the catalytic converter to the flexible pipe.
- Use a new gasket and nuts.

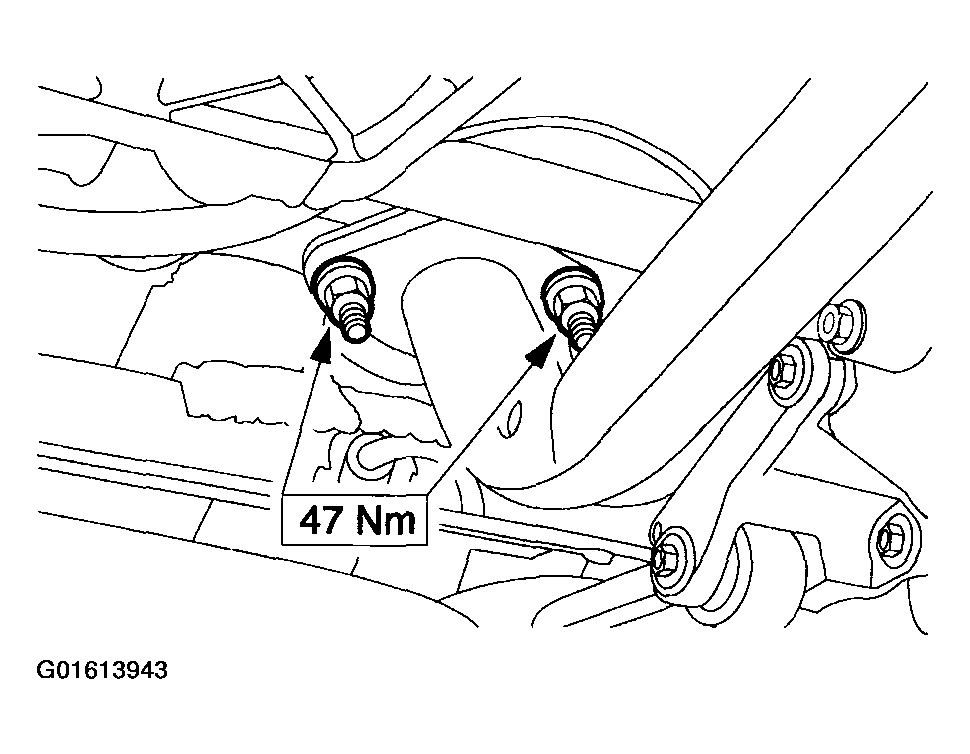

  Fig 4: Connecting Catalytic Converter To Flexible Pipe
  Courtesy of FORD MOTOR CO.
Install the bracket.
- Tighten the bolts.

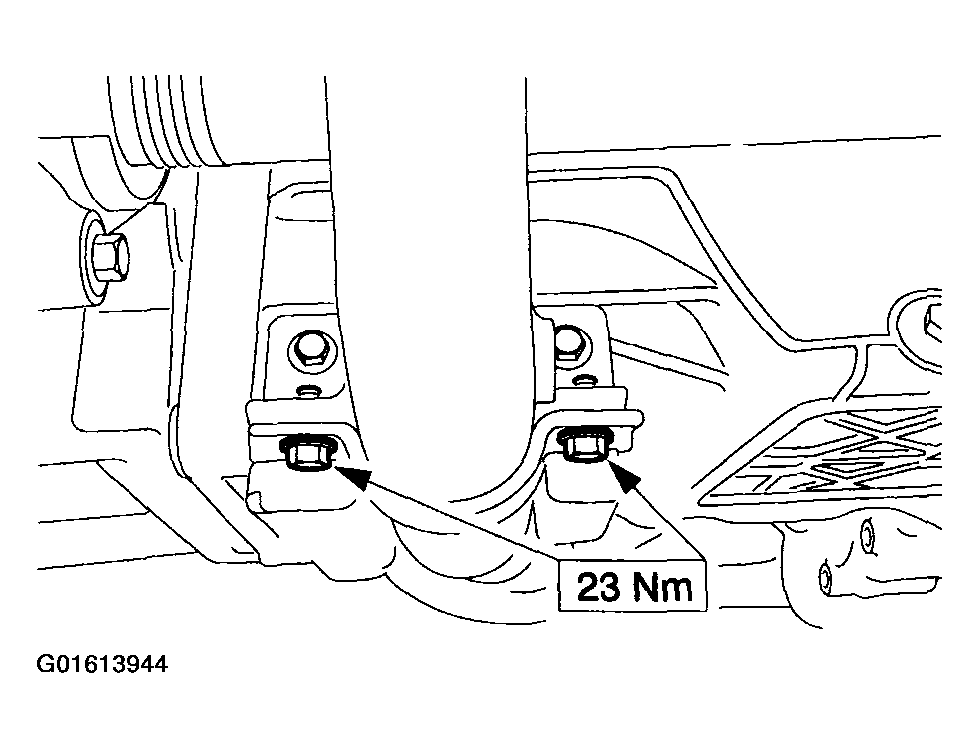

  Fig 5: Bracket Bolts Tightening Torque
  Courtesy of FORD MOTOR CO.
Tighten the bracket adjusting bolts.

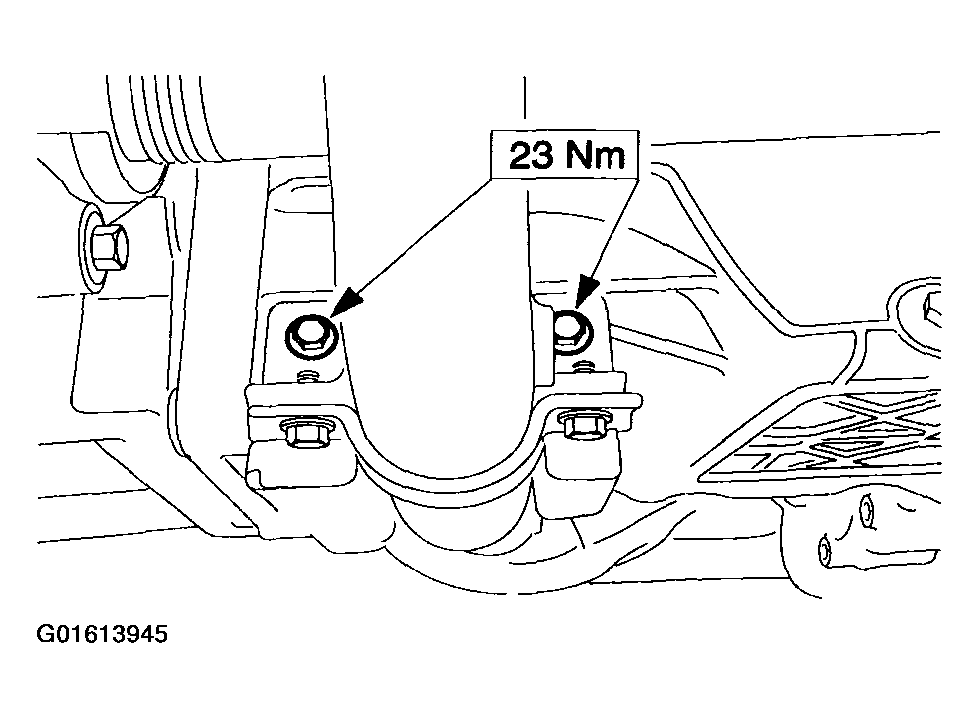

Fig 6: Tightening Bracket Adjusting Bolts
Courtesy of FORD MOTOR CO.
Install the catalyst monitor sensor.

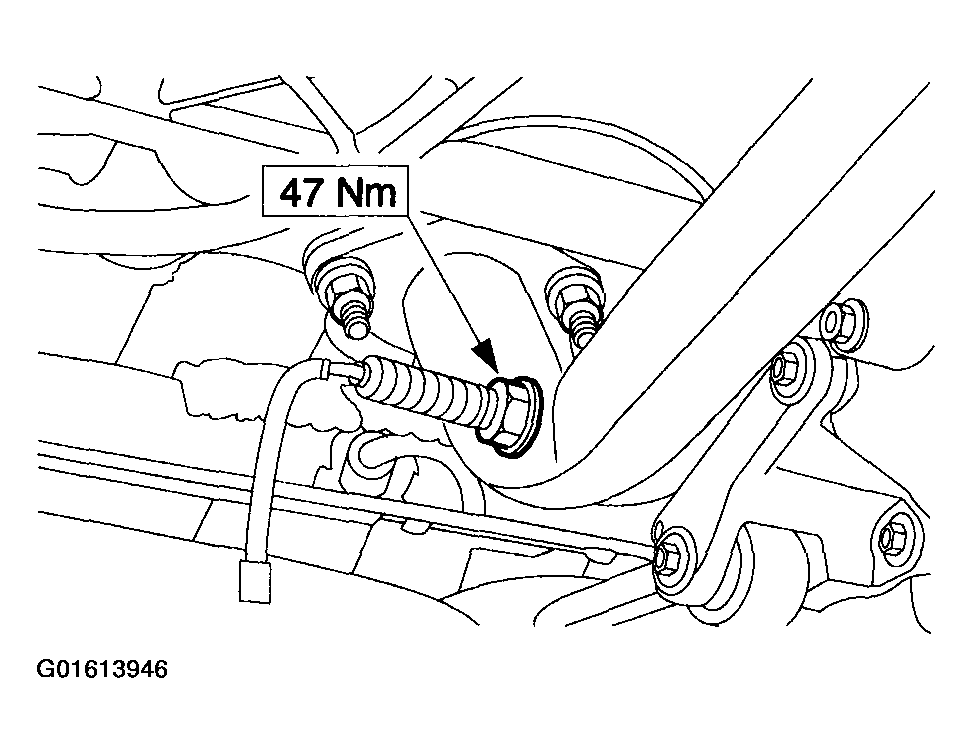

Fig 7: Installing Catalyst Monitor Sensor
Courtesy of FORD MOTOR CO.
Connect the catalyst monitor sensor electrical connector.

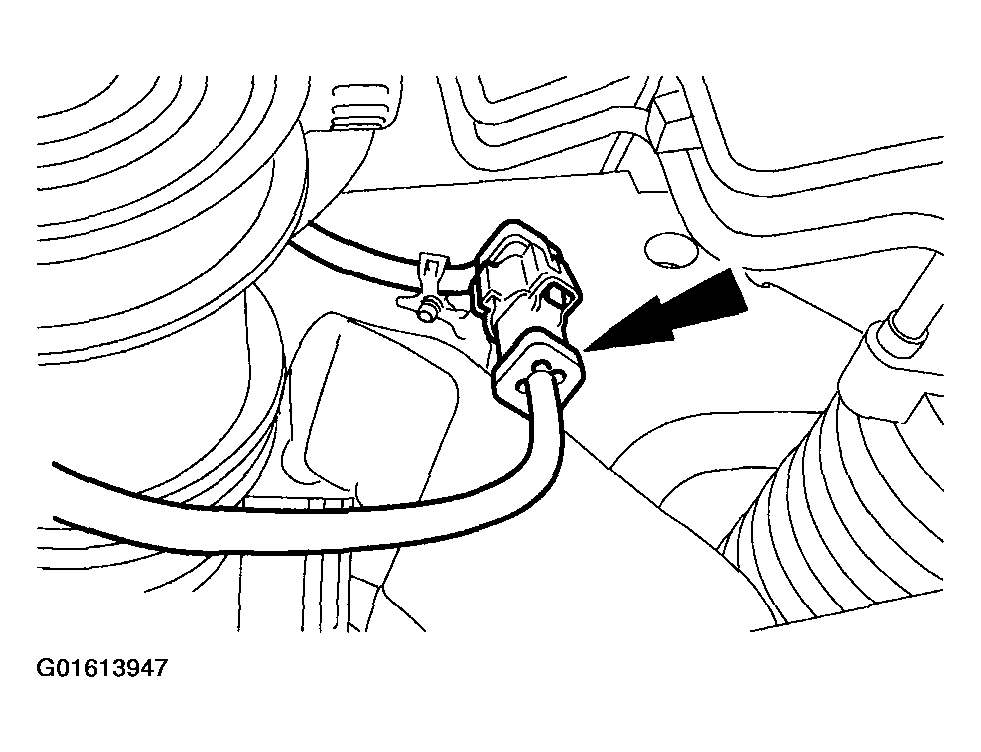

Fig 8: Connecting Catalyst Monitor Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Lower the vehicle.
