Oil Pan: Removal

  1. Remove the catalytic converter. For additional information, refer to EXHAUST SYSTEM .
  2. Drain the engine.
  3. Remove the oil pan retaining bolts.

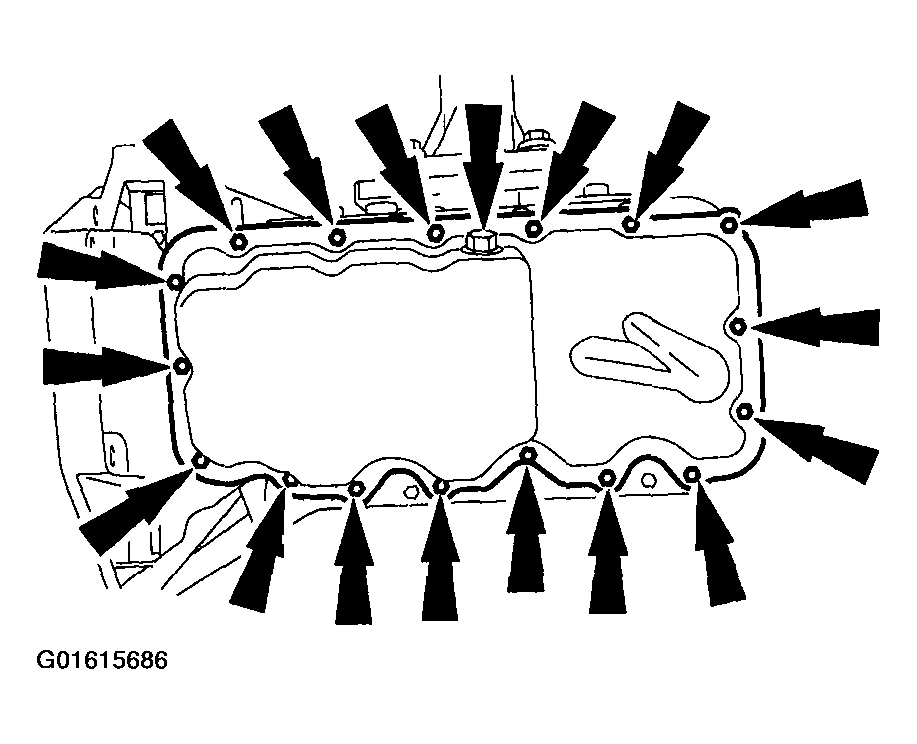

    Fig 1: Removing Oil Pan Retaining Bolts
    G01615686Courtesy of FORD MOTOR CO.
    4. CAUTION: To prevent damage to the sealing surface, only use the special tool shown to remove the oil pan.
    NOTE: Tighten the locknut against the oil pan and tap the special tool several time to release the oil pan from the lower crankcase.

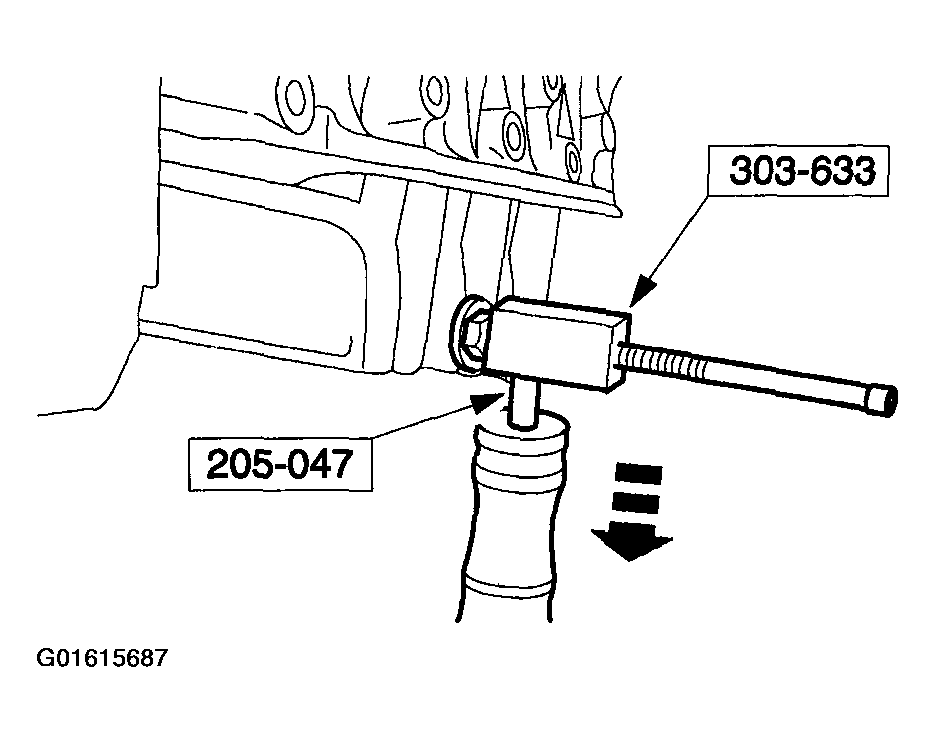

    Fig 2: Removing Oil Pan
    G01615687Courtesy of FORD MOTOR CO.
  4. Using the special tool, remove the oil pan.
