Cylinder Block

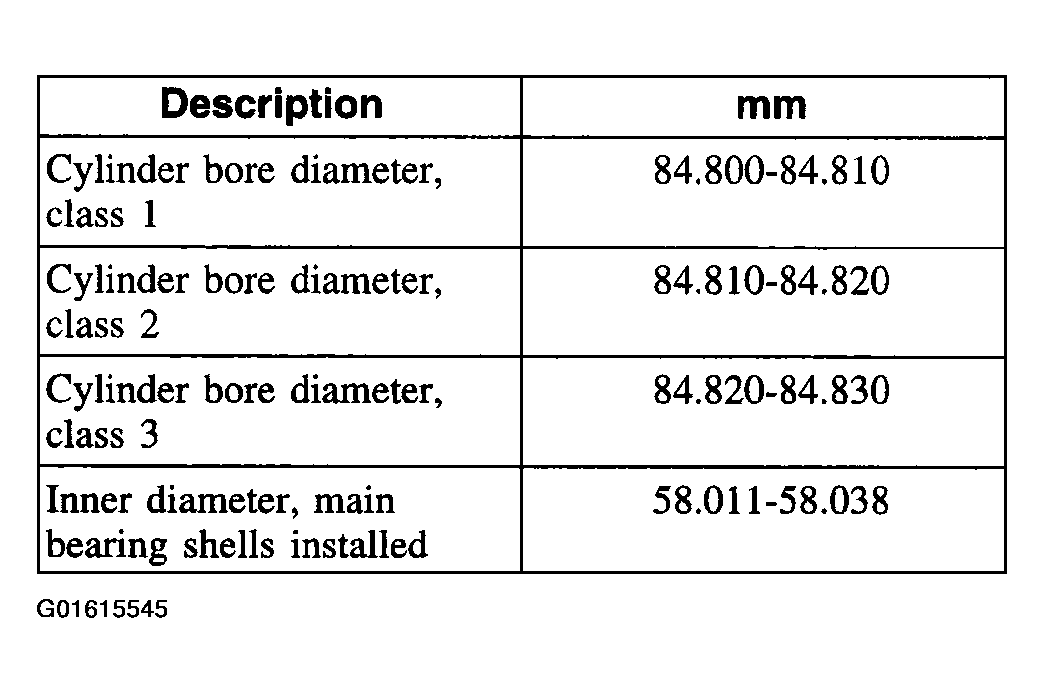

Fig 1: Cylinder Block Specifications Chart (1 Of 2)
G01615545Courtesy of FORD MOTOR CO.

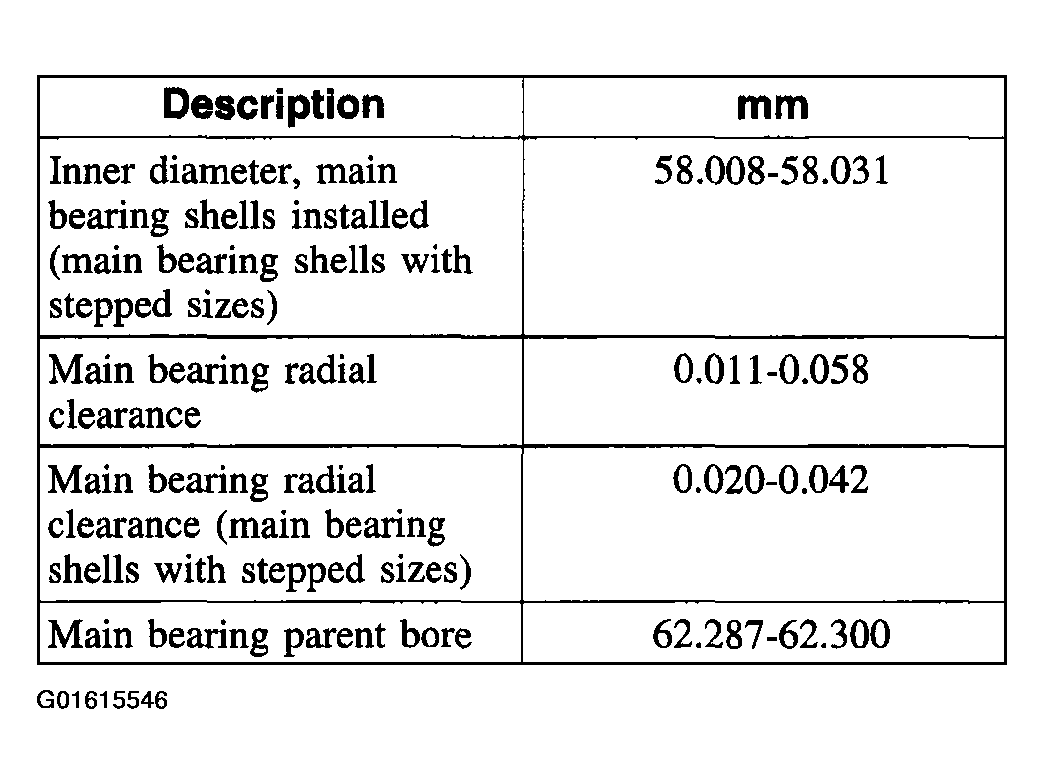

Fig 2: Cylinder Block Specifications Chart (2 Of 2)
G01615546Courtesy of FORD MOTOR CO.
