Engine Mechanical: Mechanical: Engine-SVT: Specifications: Pistons

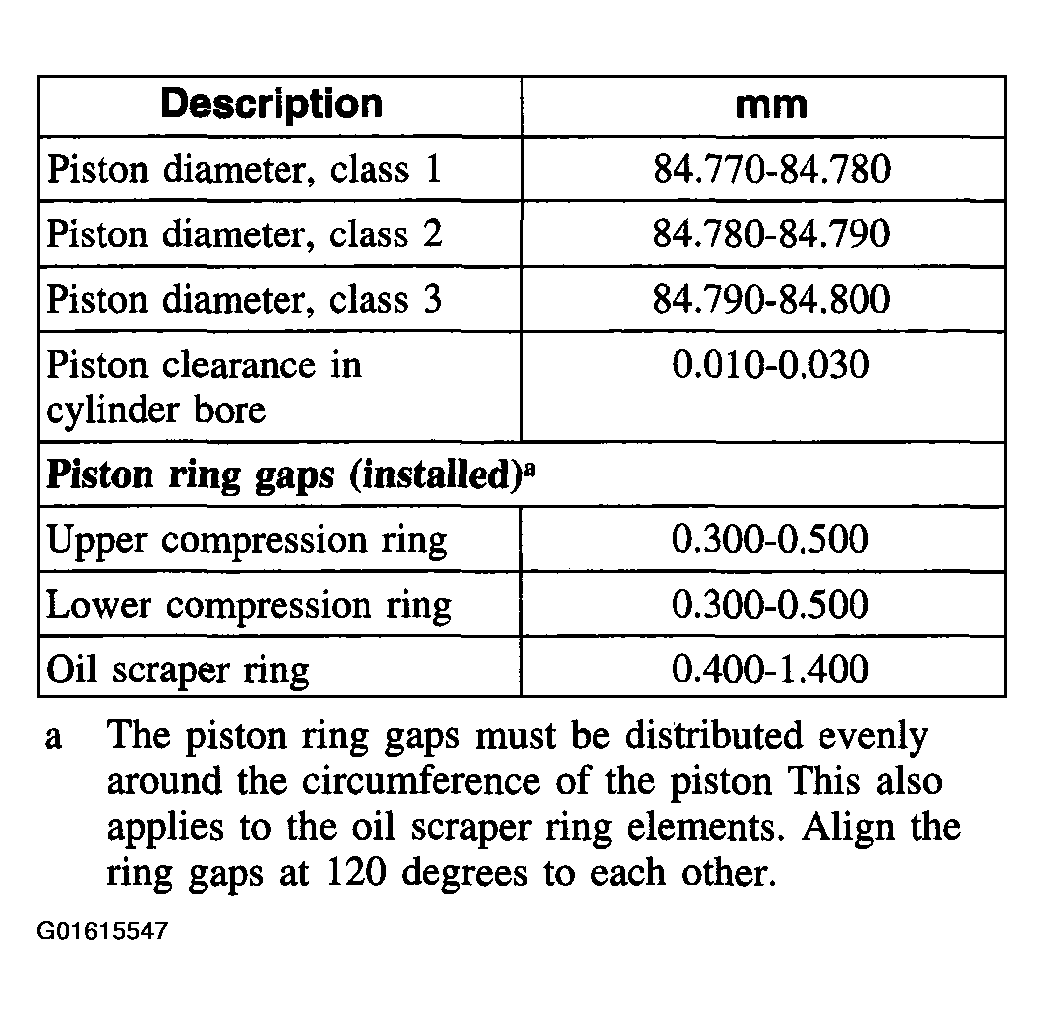

Fig 1: Pistons Specifications Chart
G01615547Courtesy of FORD MOTOR CO.
