Home › Ford › 2003 › Focus SVT, 2D Hatchback › Repair and Diagnosis › Engine Mechanical › Mechanical › Engine-SVT › Specifications › Valves

Engine Mechanical: Mechanical: Engine-SVT: Specifications: Valves

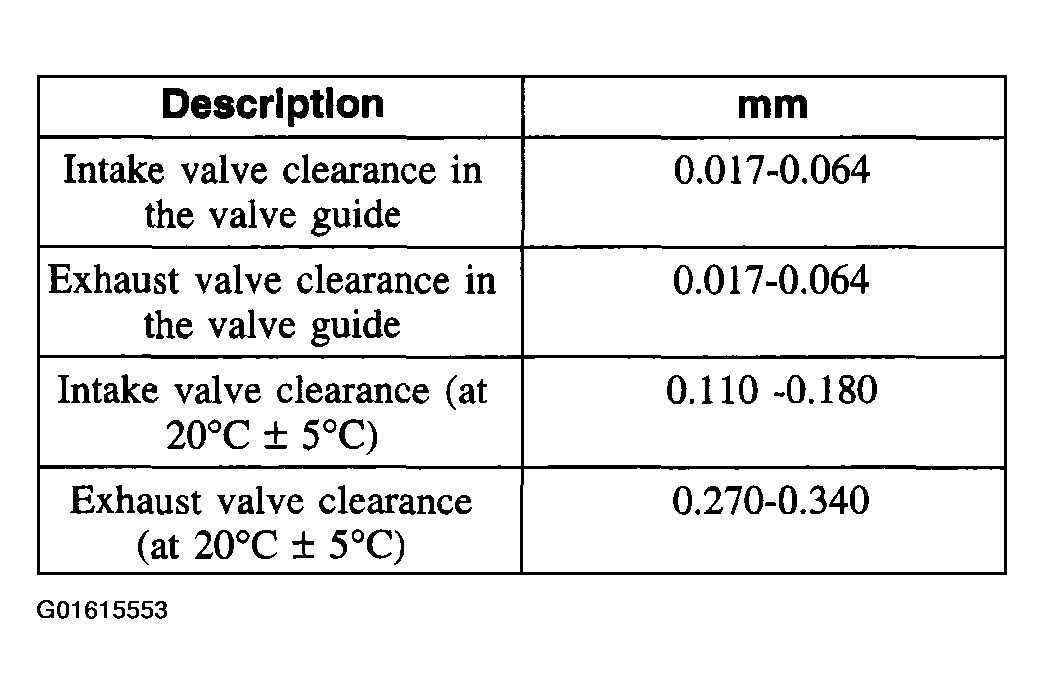

Fig 1: Valves Specifications Chart
G01615553Courtesy of FORD MOTOR CO.
