Oil Pan: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the catalytic converter. For additional information, refer to EXHAUST SYSTEM .

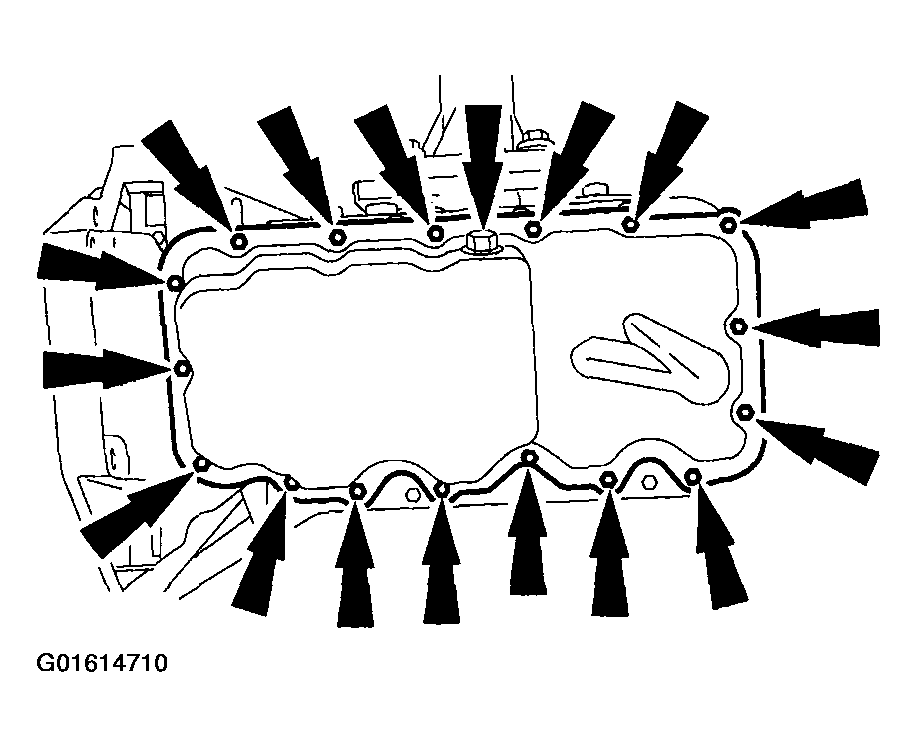

Drain the engine oil at the drain plug and remove the oil pan bolts (shown with engine removed).

Fig 1: Removing Oil Pan Bolts
Courtesy of FORD MOTOR CO.

CAUTION: Do not damage the mating faces.

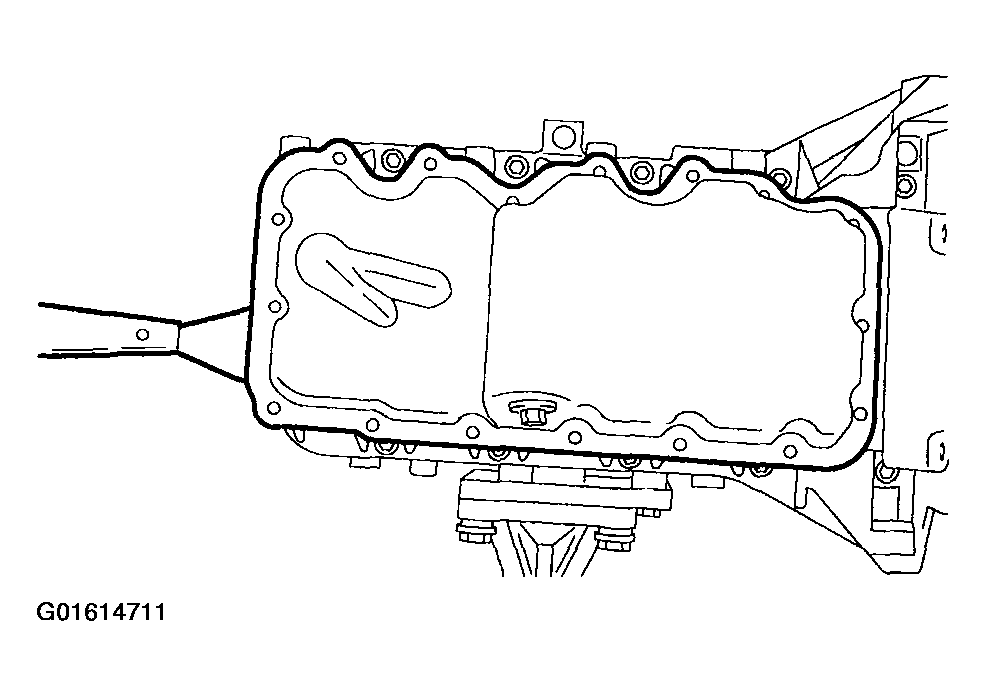

Remove the oil pan (shown with engine removed).
- Separate the oil pan from the lower crankcase using a sharp spatula. Release the oil pan from the lower crankcase by tapping slightly against the tightened drain plug with a rubber hammer.

  Fig 2: Removing Oil Pan
  Courtesy of FORD MOTOR CO.
