Valve Springs: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the valve tappets. .

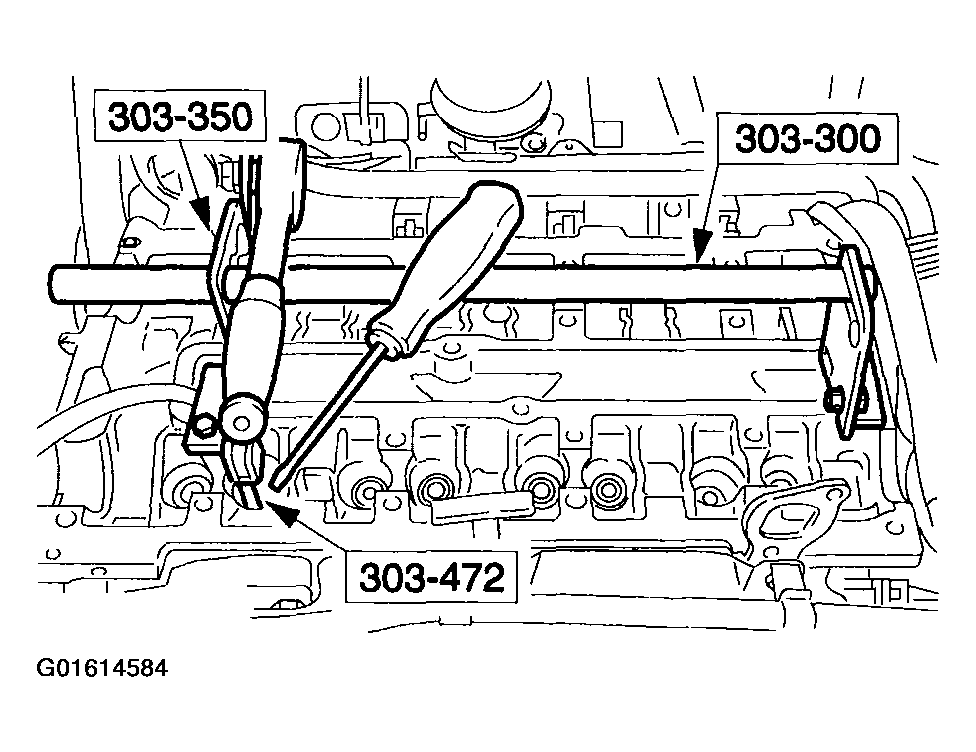

- Using special tools, remove the valve springs.
- Apply compressed air to the cylinders.
- Compress the valve springs and remove the valve collets.
- Remove the valve spring retainers and the valve springs and place them in order to one side. To remove the collets use some grease and a small screw driver.
WARNING:
Always wear protective goggles when working with compressed air. This can prevent injury. Failure to follow these instructions may result in personal injury.
