In-Vehicle Repair: Camshaft: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the battery. For additional information, refer to BATTERY, MOUNTING AND CABLES .

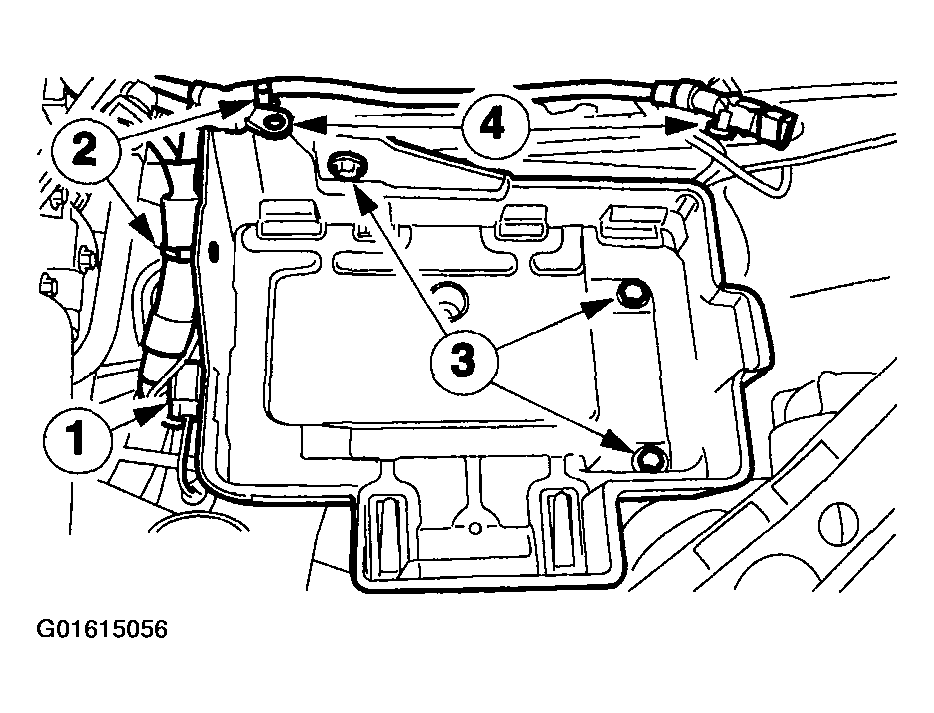

Remove the battery tray and detach the ground cable.
1. Unclip and disconnect the electrical connector.
2. Unclip the wiring harness.
3. Remove the bolts.
4. Detach the positive and negative cables.

  Fig 1: Removing Battery Tray And Detach Ground Cable
  Courtesy of FORD MOTOR CO.

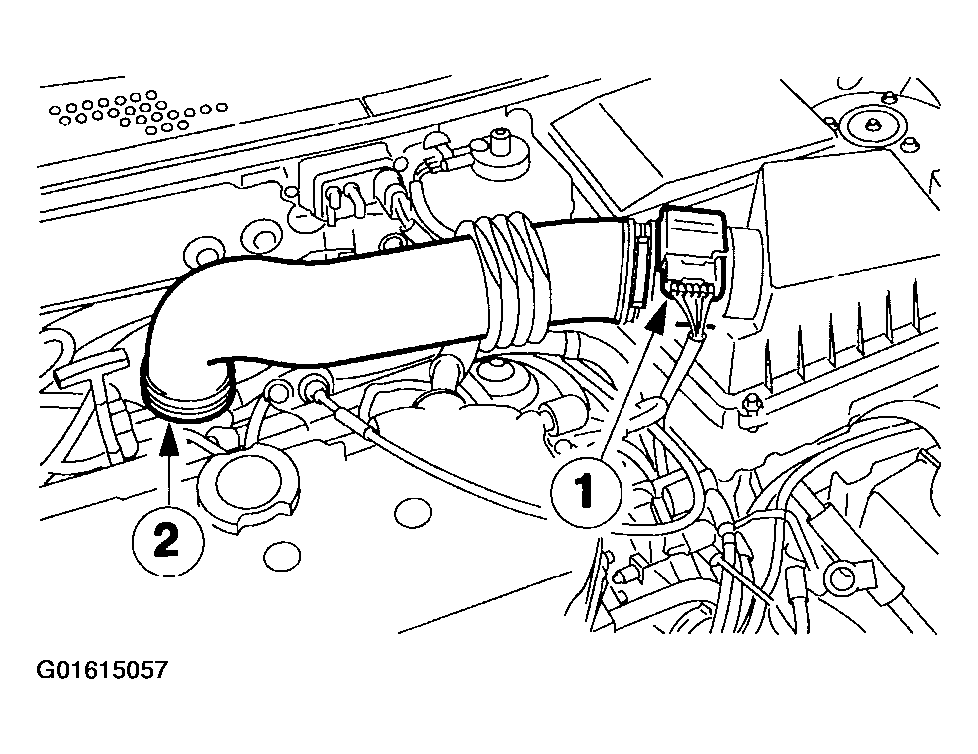

Remove the air cleaner housing.
1. Disconnect the mass air flow (MAF) sensor electrical connector.
2. Detach the air cleaner outlet pipe.
- Remove the air cleaner housing from the rubber bushing.

  Fig 2: Removing Air Cleaner Housing
  Courtesy of FORD MOTOR CO.
Remove the air cleaner intake pipe.

Fig 3: Removing Air Cleaner Intake Pipe
Courtesy of FORD MOTOR CO.

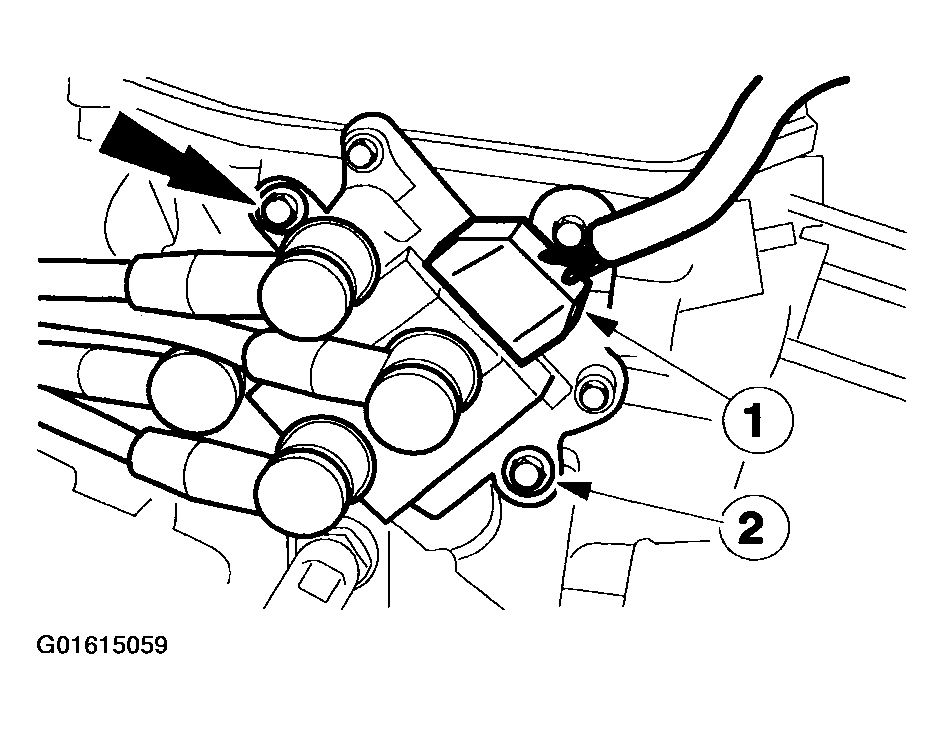

Remove the electrical ignition (EI) coil.
1. Disconnect the electrical connector.
2. Remove the bolts and position the EI coil.

  Fig 4: Removing Electrical Ignition Coil
  Courtesy of FORD MOTOR CO.

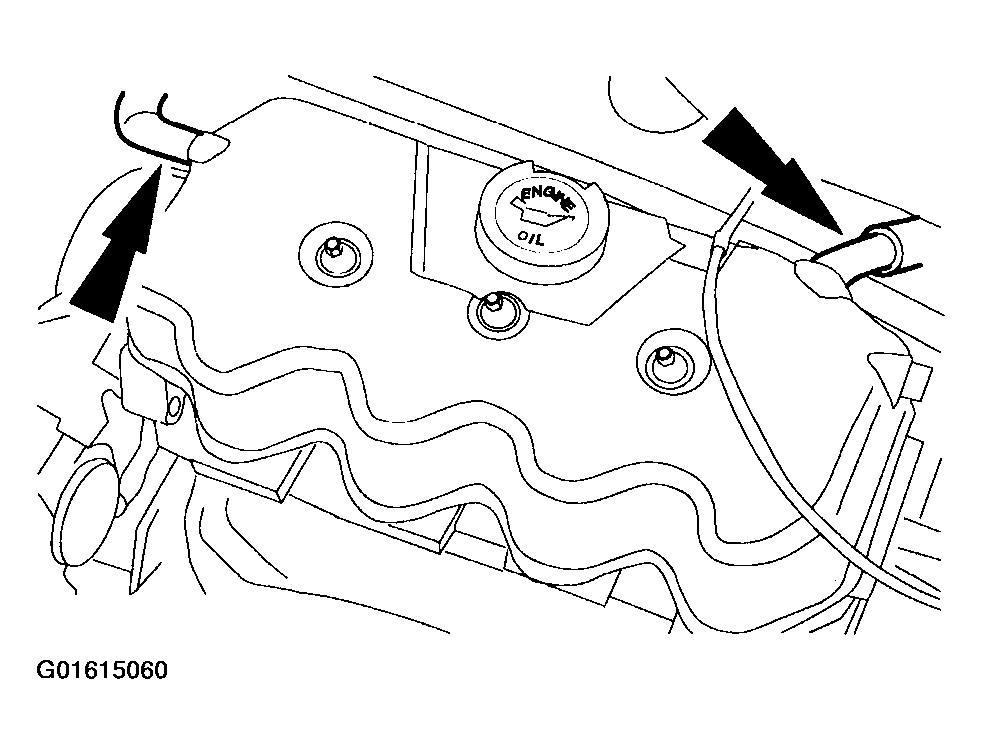

Disconnect the fresh air and positive crankcase ventilation hoses.

Fig 5: Disconnecting Fresh Air And Positive Crankcase Ventilation Hoses
Courtesy of FORD MOTOR CO.

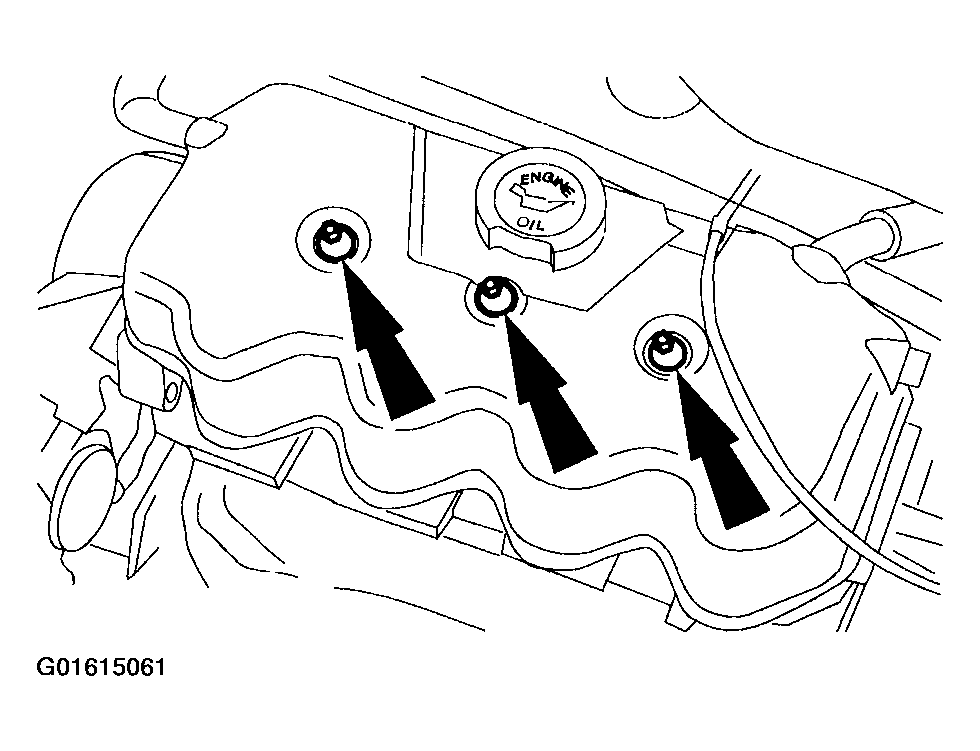

Remove the valve cover.

Fig 6: Removing Valve Cover
Courtesy of FORD MOTOR CO.

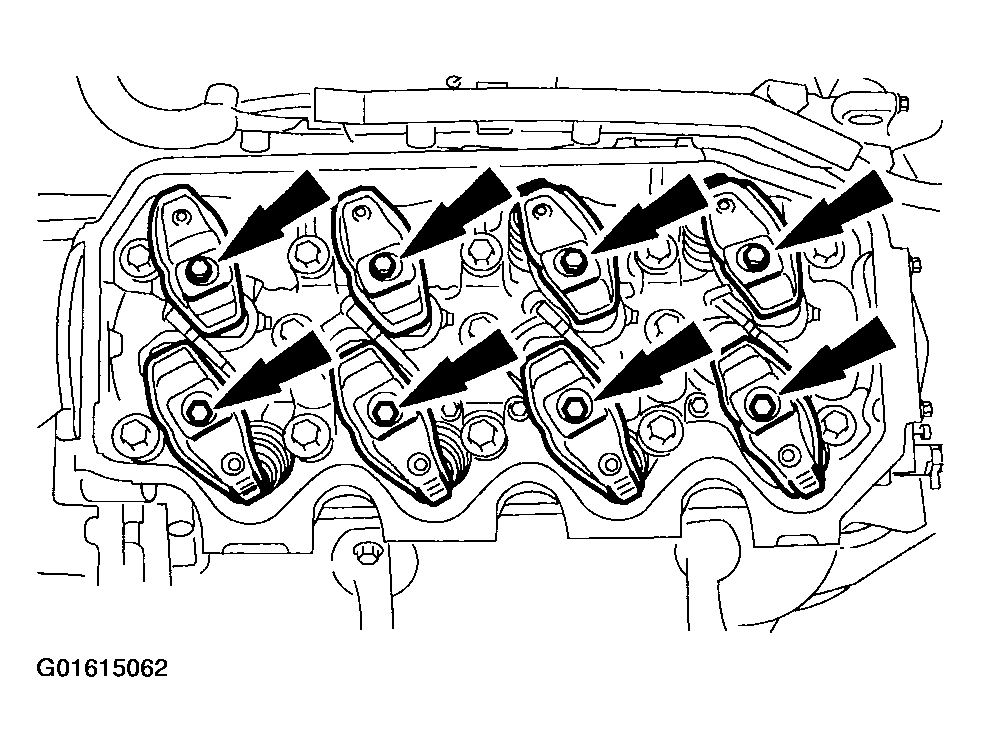

Remove the rocker arms.

Fig 7: Removing Rocker Arms
Courtesy of FORD MOTOR CO.

NOTE: Keep the valve tappets in order for reassembly.

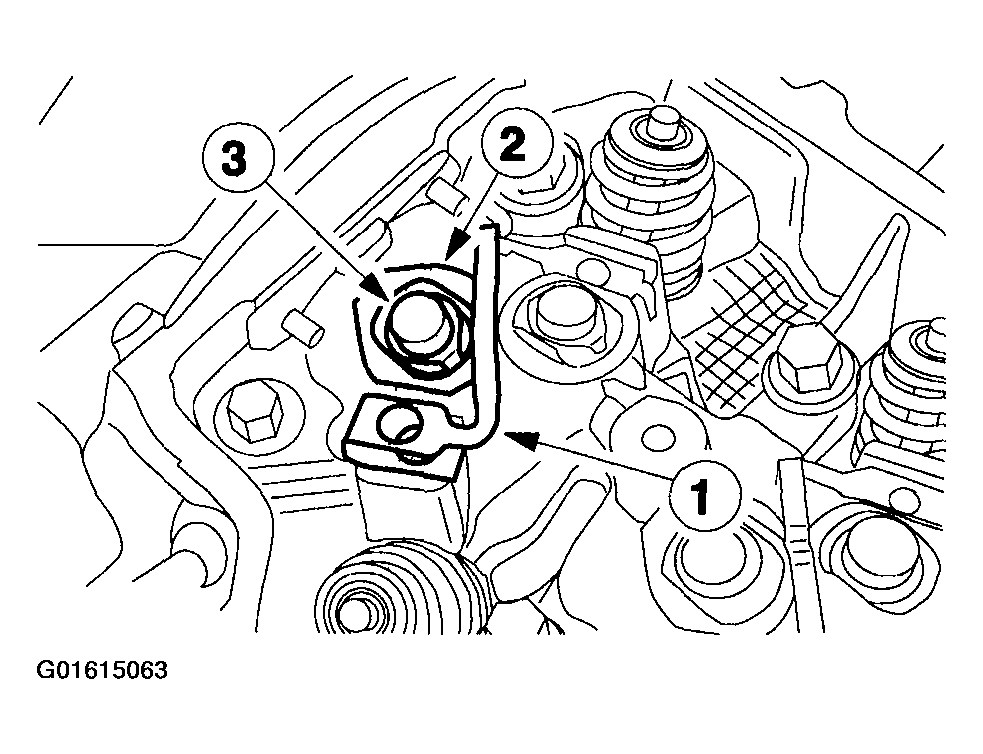

Remove the valve tappets.
1. Remove the valve tappet guide plate retainers.
2. Remove the valve tappet guide plates.
3. Remove the valve tappets.

  Fig 8: Removing Valve Tappets
  Courtesy of FORD MOTOR CO.
Remove the timing belt. For additional information, refer to TIMING BELT .
Remove the camshaft oil seal. For additional information, refer to CAMSHAFT SEAL .

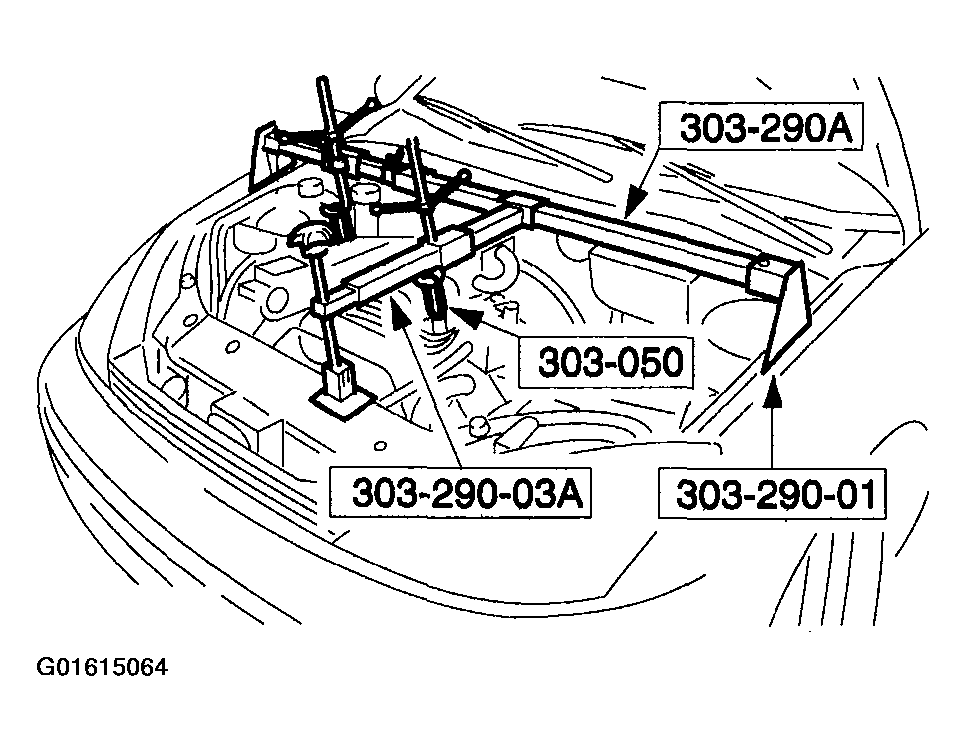

Using the special tools, support the engine.

Fig 9: Supporting Engine
Courtesy of FORD MOTOR CO.

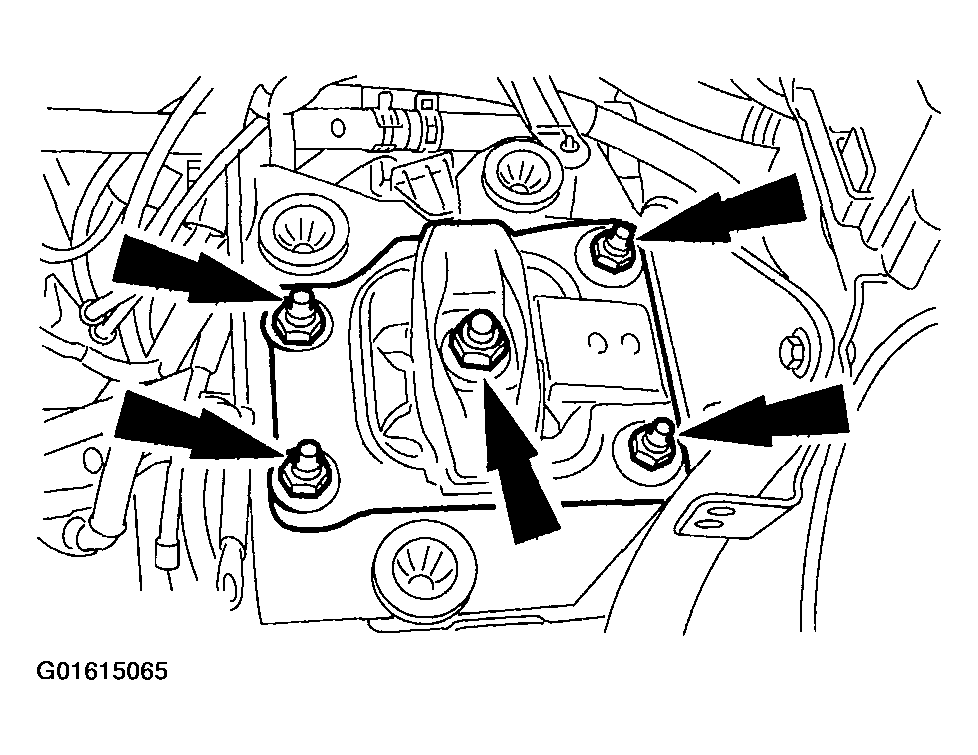

Remove the engine rear mounting.

Fig 10: Removing Engine Rear Mounting
Courtesy of FORD MOTOR CO.

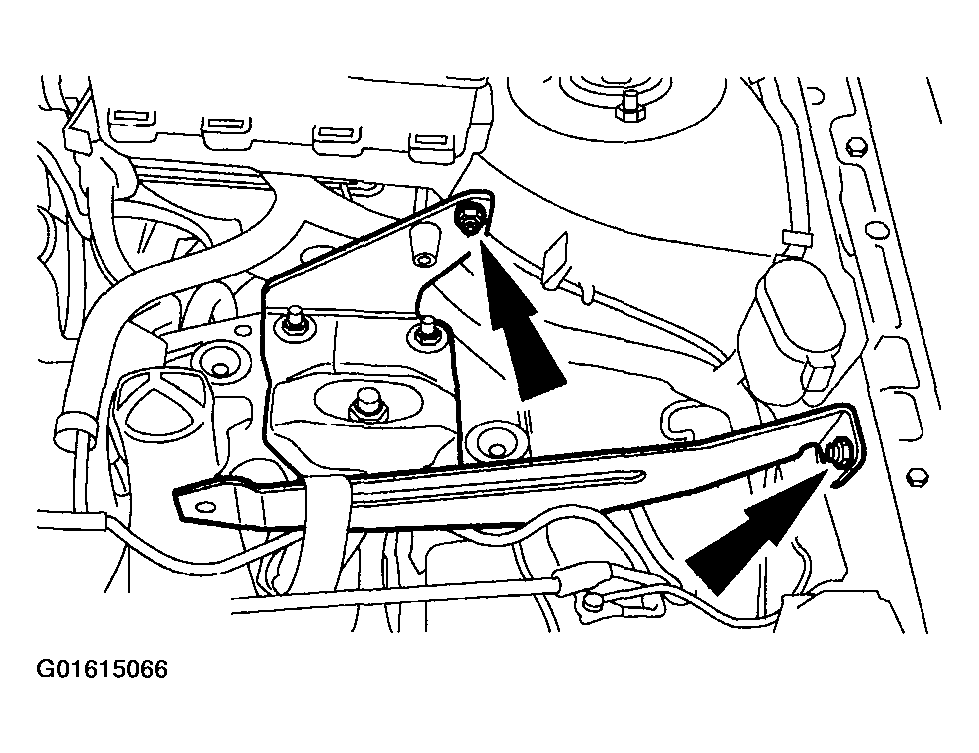

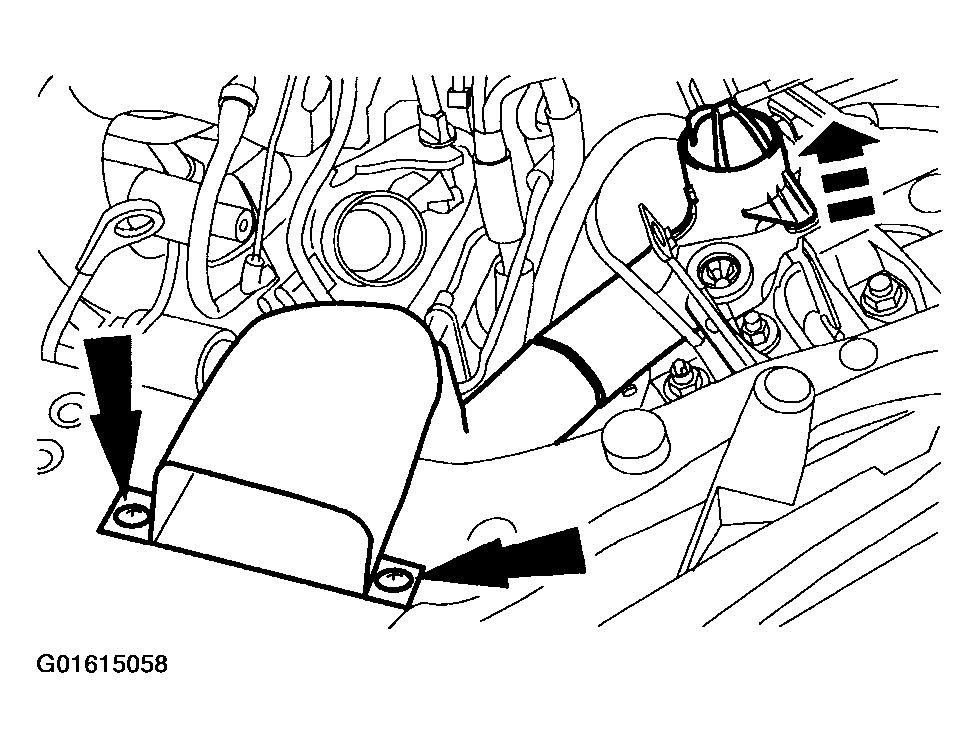

Detach the air cleaner housing bracket and position it to one side.

Fig 11: Detaching Air Cleaner Housing Bracket
Courtesy of FORD MOTOR CO.

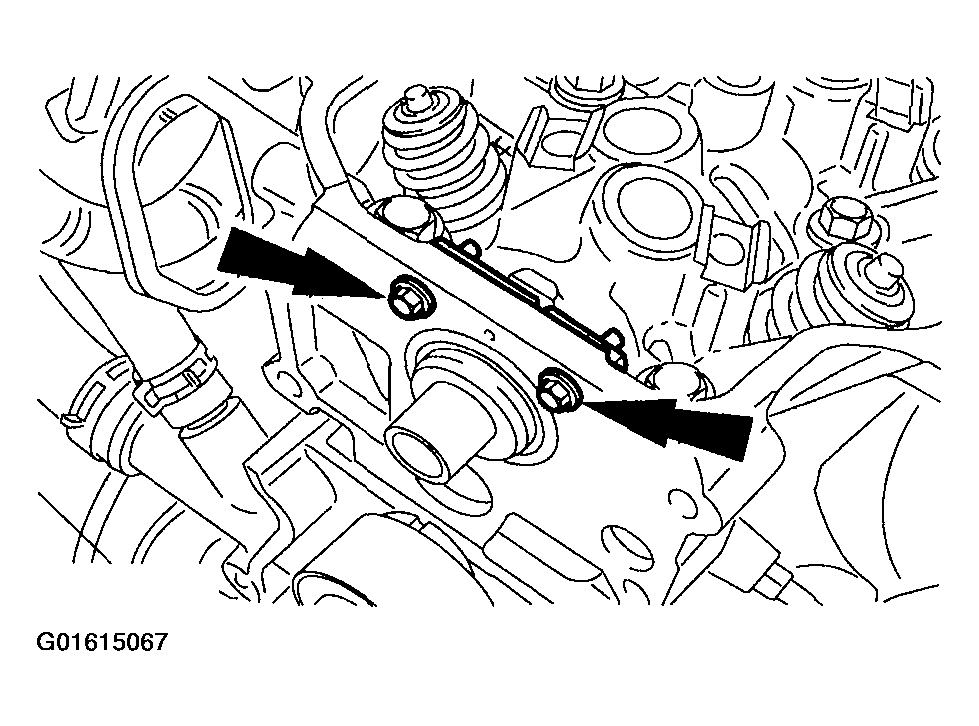

Remove the camshaft thrust plate.

Fig 12: Removing Camshaft Thrust Plate
Courtesy of FORD MOTOR CO.

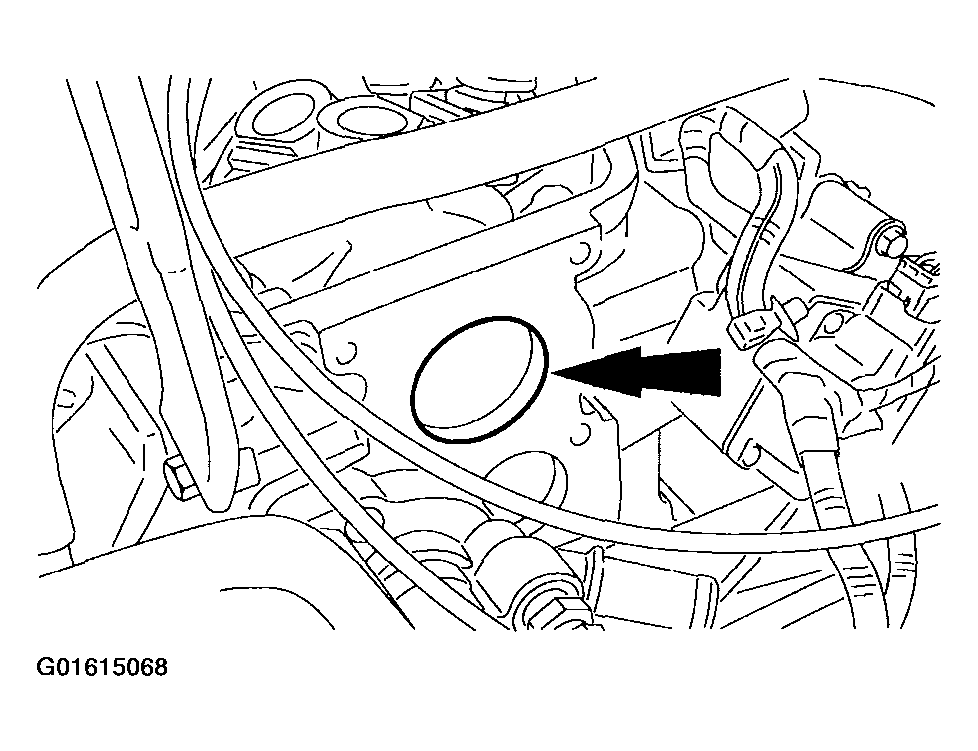

Remove and discard the blanking plug from the rear of the cylinder head.

Fig 13: Removing Blanking Plug From Rear Of Cylinder Head
Courtesy of FORD MOTOR CO.

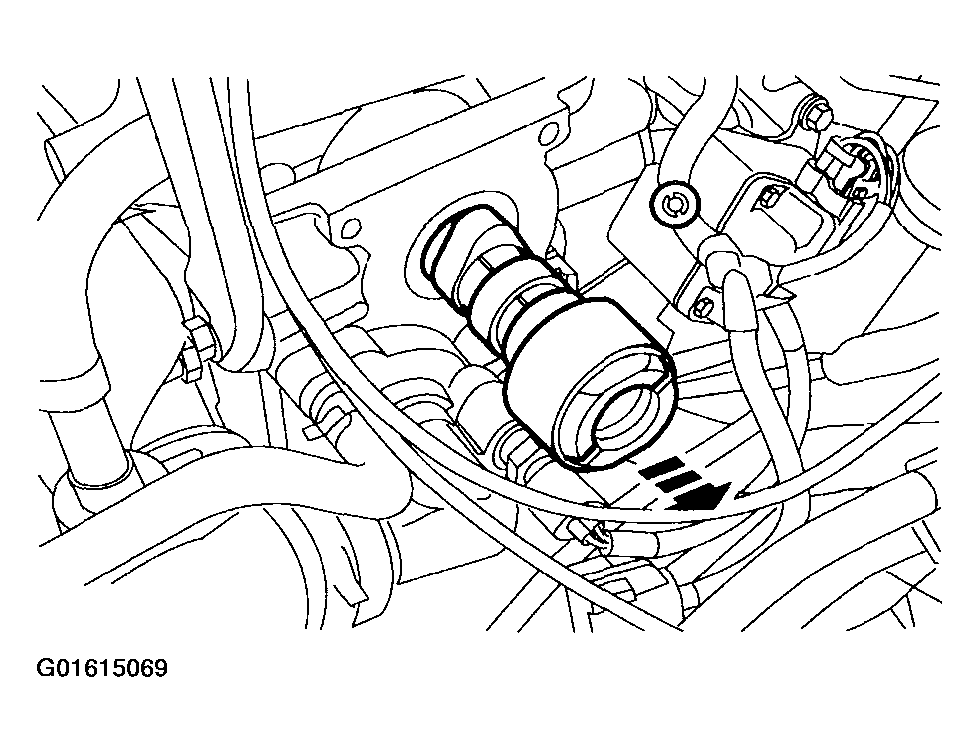

Remove the camshaft from the rear of the cylinder head.

Fig 14: Removing Camshaft From Rear Of Cylinder Head
Courtesy of FORD MOTOR CO.
