Output Shaft Speed (OSS) Sensor: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Apply a light coat of petroleum jelly to the O-ring before installation.

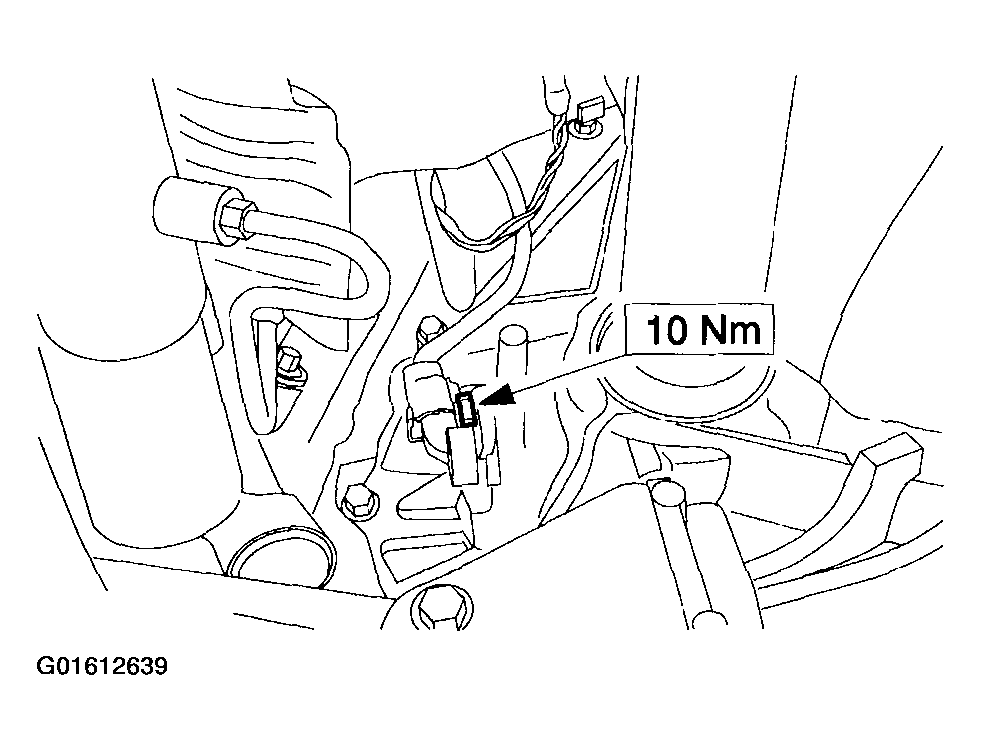

Fig 1: Installing OSS Sensor

Courtesy of FORD MOTOR CO.

Install the OSS sensor.
- Connect the electrical connector.
Lower vehicle.
Check the transmission fluid level and add automatic transmission fluid as necessary.

Fig 2: Identifying Transmission Fluid Level
Courtesy of FORD MOTOR CO.
Start the engine and move the transaxle range selector lever through all gear positions.
