Specifications
›
Torque Specifications
Torque Specifications

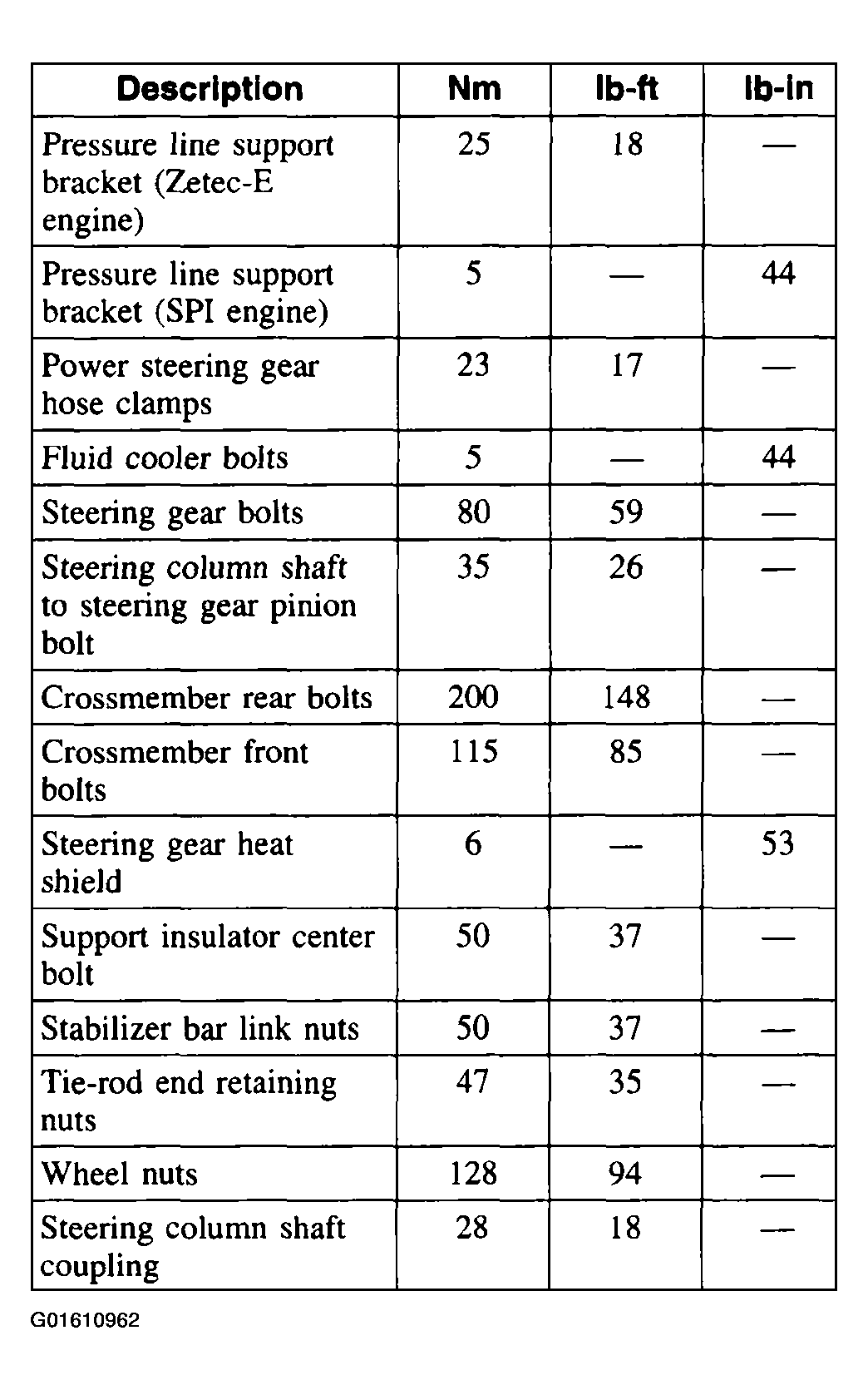

Fig 1: Power Steering Torque Specifications (1 Of 2)
Courtesy of FORD MOTOR CO.
Fig 2: Power Steering Torque Specifications (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
