Steering Gear Boot: Removal

  1. Remove the tie-rod end. For additional information, refer to TIE ROD END  .
  2. Remove the boot.
    1. Remove the clamps.
    2. Disconnect the breather pipe (if equipped).
    3. Remove the boot.

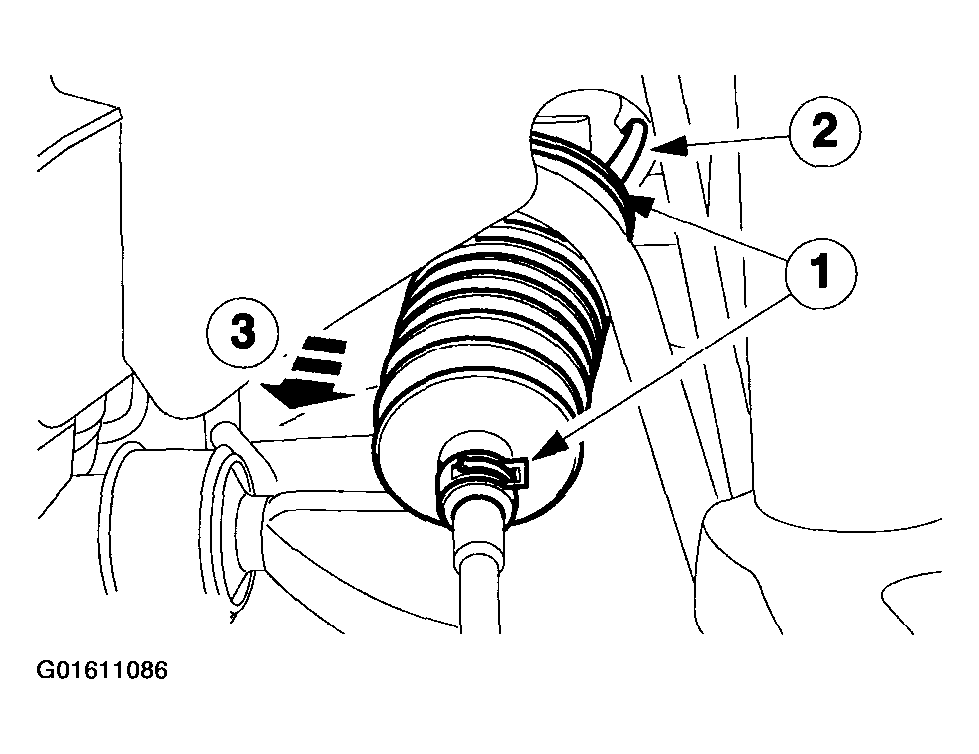

      Fig 1: Removing Boot
      G01611086Courtesy of FORD MOTOR CO.
