Tie Rod: Installation

    NOTE: Remove all traces of thread locking compound from the rack.
  1. Using a suitable wrench, install the tie-rod.
    • Apply Thread locking compound to the inner threads of the new tie-rod.
      Fig 1: Applying Thread Locking Compound To Inner Threads Of Tie-Rod
      G01611077Courtesy of FORD MOTOR CO.
    2. NOTE: Install the boot using new clamps.
  2. Install the boot.
    1. Install the boot.
    2. Install the clamps.
    • Connect the breather pipe (if equipped).

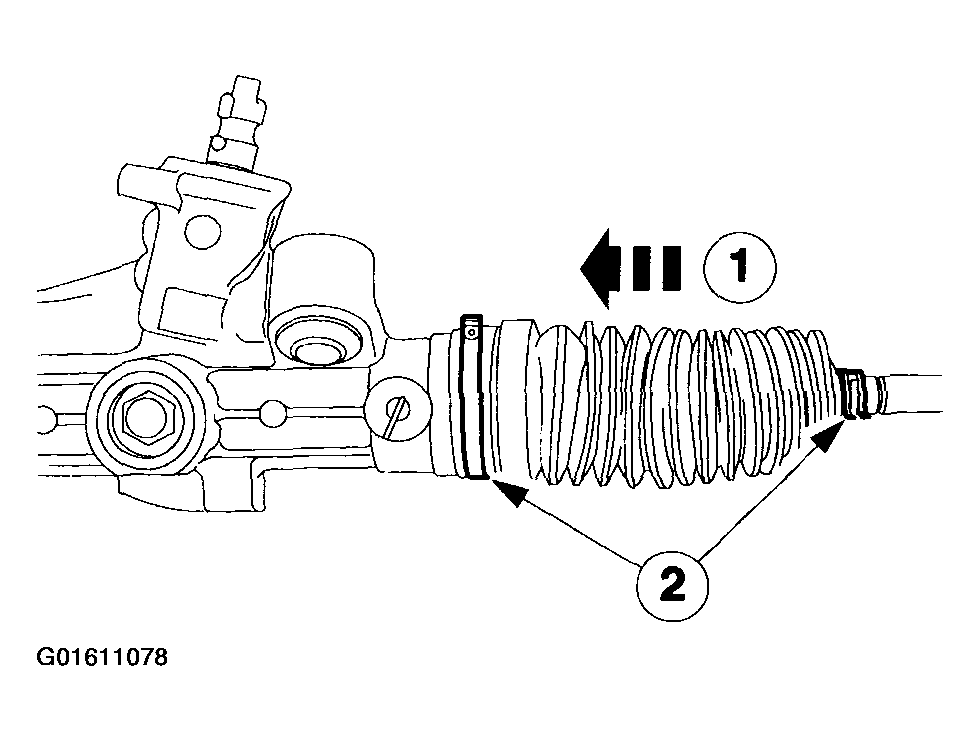

      Fig 2: Installing Boot
      G01611078Courtesy of FORD MOTOR CO.
    3. NOTE: Make sure the tie-rod end is secured by the same number of turns used to remove it.
    Fig 3: Installing Tie-Rod End And Locknut
    G01611079Courtesy of FORD MOTOR CO.
  3. Install the tie-rod end and locknut.
  4. Install the steering gear. For additional information, refer to POWER STEERING .
  5. Check the toe adjustment. For additional information, refer to SPECIFICATIONS & PROCEDURES .
