Pinpoint Test A: External Controls Do Not Operate Freely

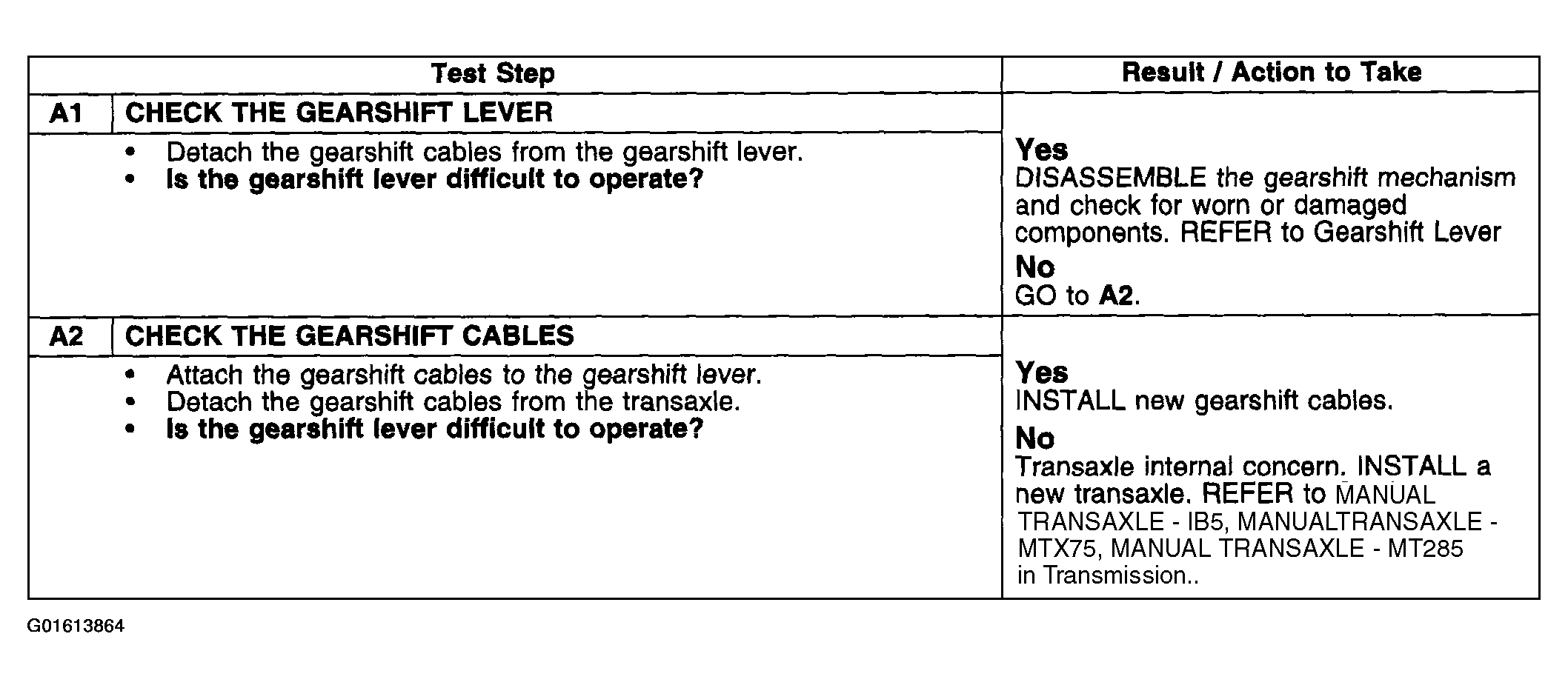

Fig 1: Pinpoint Test A: External Controls Do Not Operate Freely
G01613865Courtesy of FORD MOTOR CO.
