Pinpoint Test F: Wheel Speed Input Signal Missing

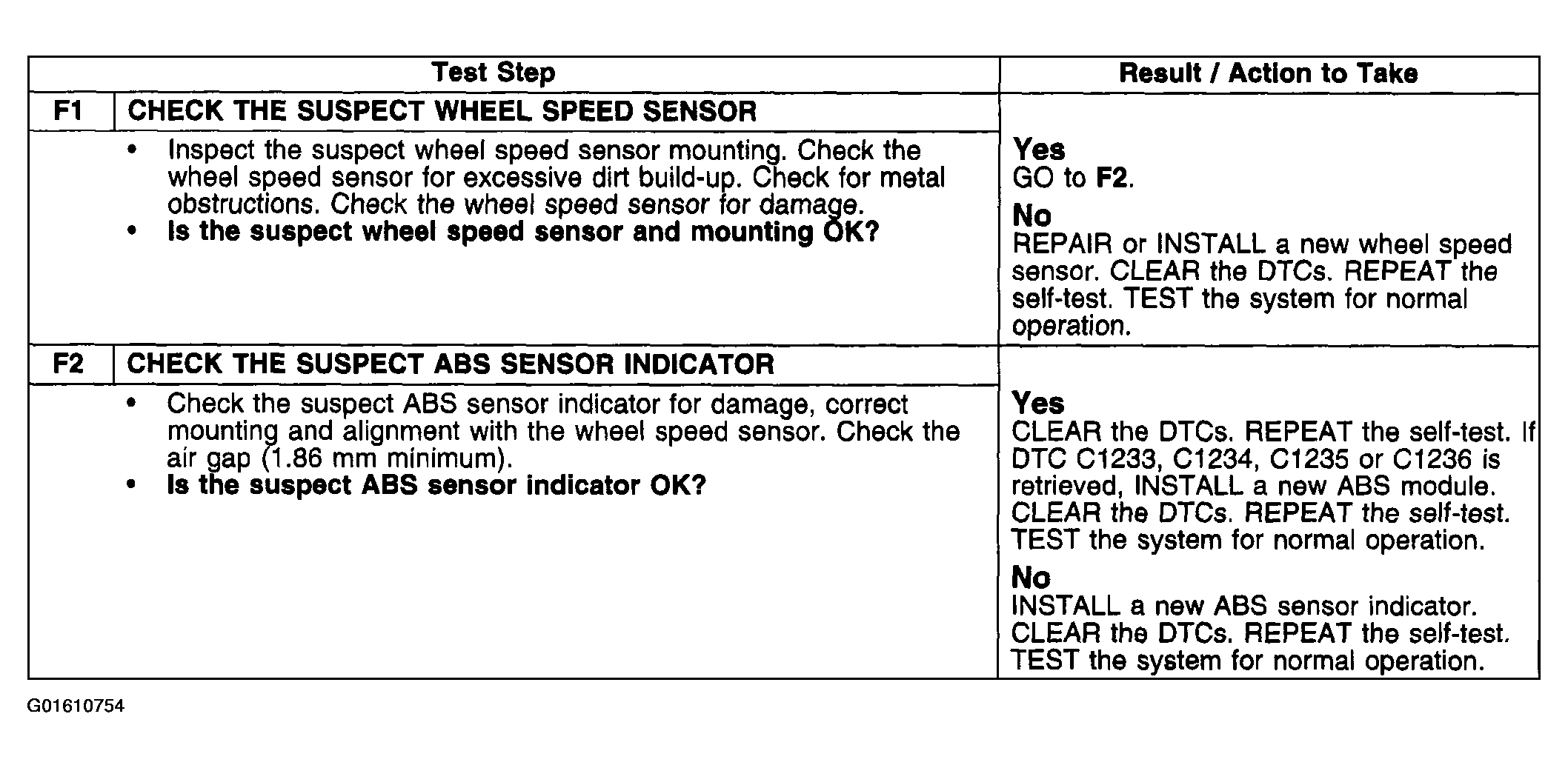

Fig 1: Pinpoint Test F: Wheel Speed Input Signal Missing (F1-F2)
G01610754Courtesy of FORD MOTOR CO.
