Pinpoint Test I: The Traction Control Is Inoperative

CAUTION: Use the correct probe adaptor(s) when making measurements. Failure to use the correct probe adaptor(s) may damage the connector.

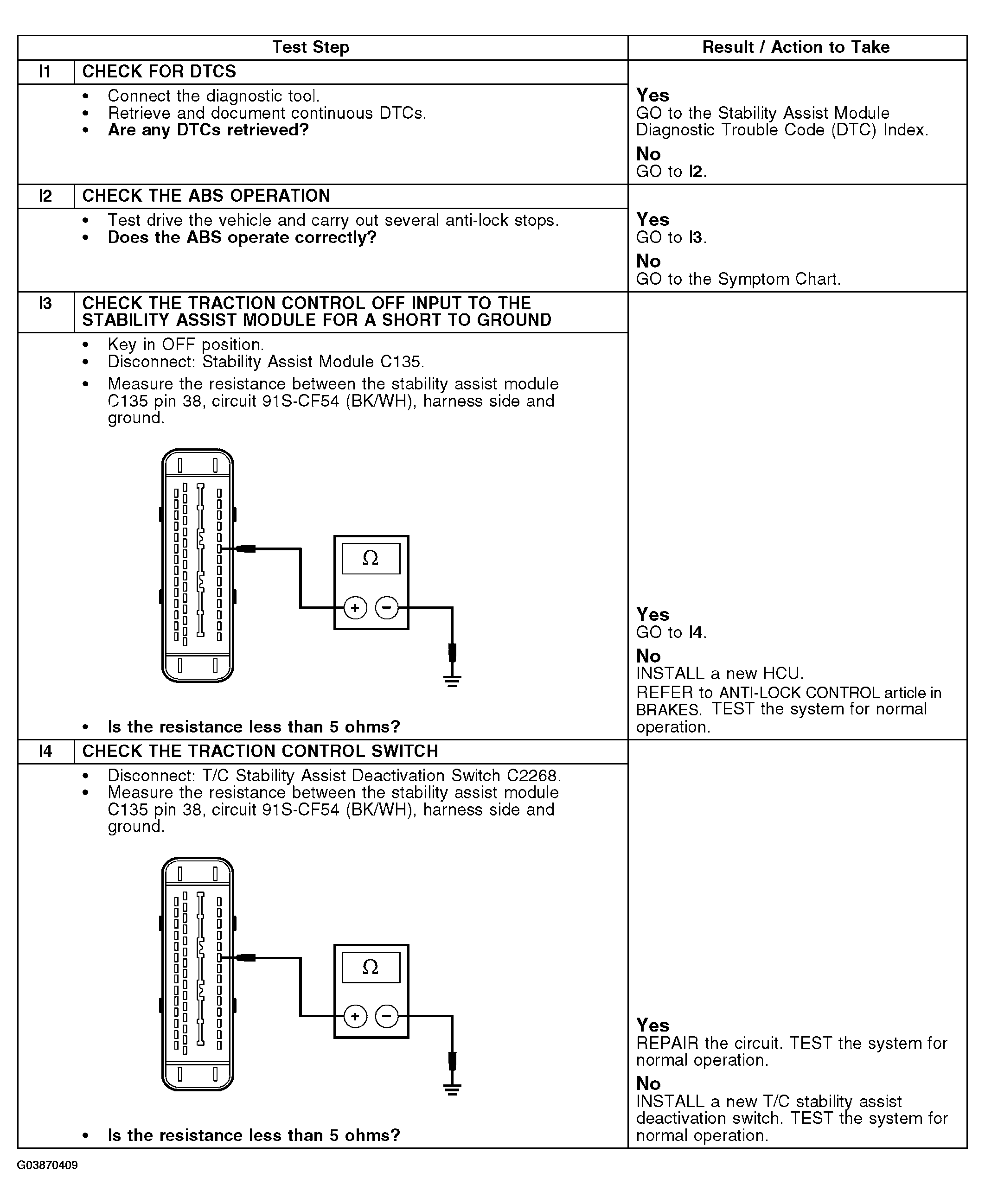

Fig 1: Pinpoint Test I: Traction Control Is Inoperative (Step I1-I4)
G03870409Courtesy of FORD MOTOR CO.
