Pinpoint Test M: Traction Control Indicator Is Never/Always On

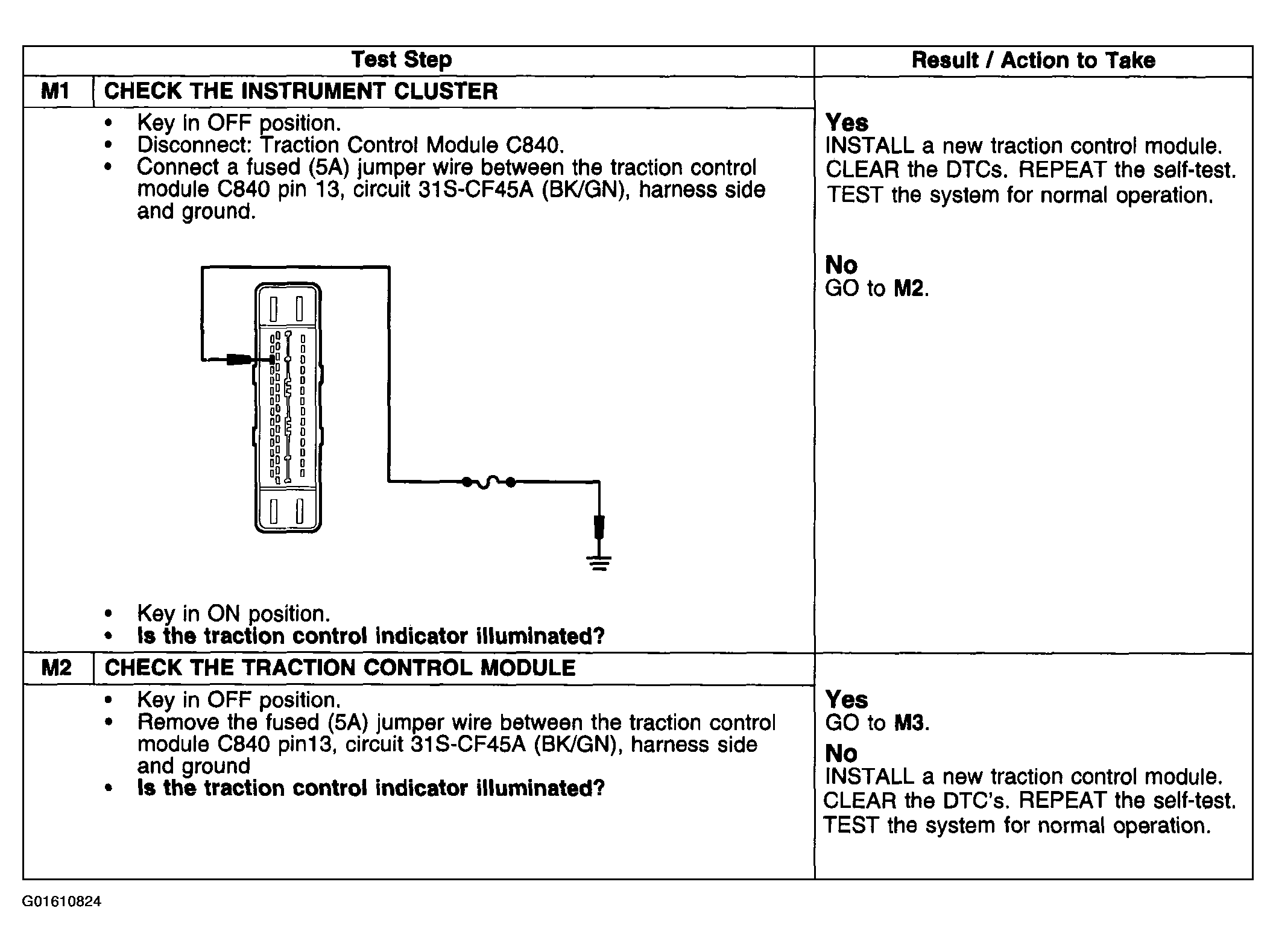

Fig 1: Pinpoint Test M: Traction Control Indicator Is Never/Always On (M1-M2)
G01610824Courtesy of FORD MOTOR CO.

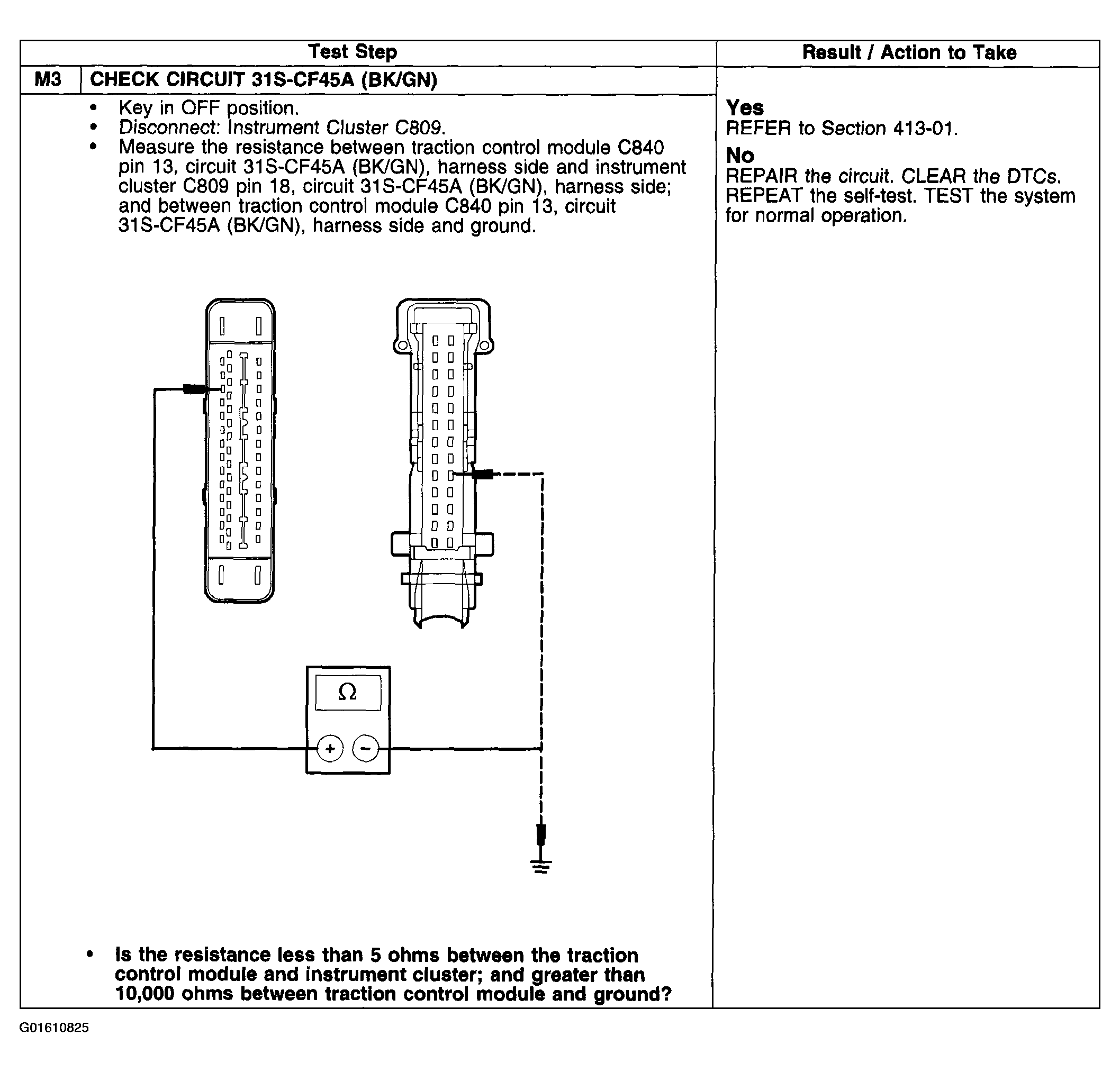

Fig 2: Pinpoint Test M: Traction Control Indicator Is Never/Always On (M3)
G01610825Courtesy of FORD MOTOR CO.
