Valve Springs: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Check that there is no dirt or particles within the valve stem grooves. Check the seating of the valve collets.

Using special tools install the valve springs.
- Insert the valve springs and the valve spring retainers.
- Compress the valve springs and install the valve collets.
- Disconnect and remove the air supply.

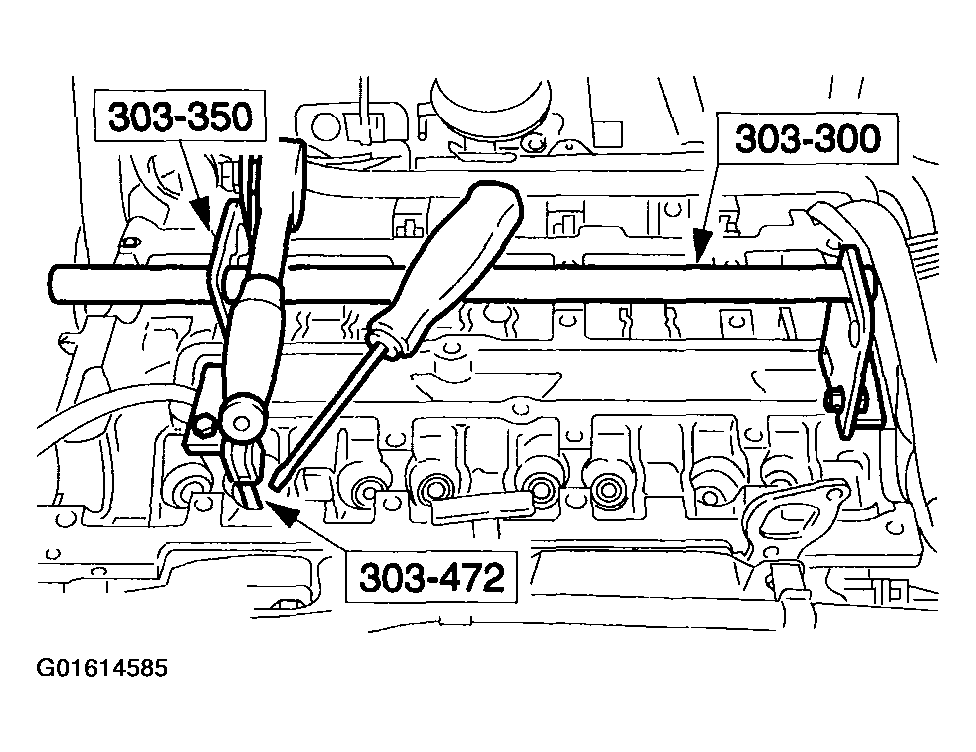

  Fig 1: Installing Valve Springs
  Courtesy of FORD MOTOR CO.
Install the valve tappets.
