Torque Specifications

Fig 1: Steering System Torque Specifications (1 Of 2)
G01610940Courtesy of FORD MOTOR CO.

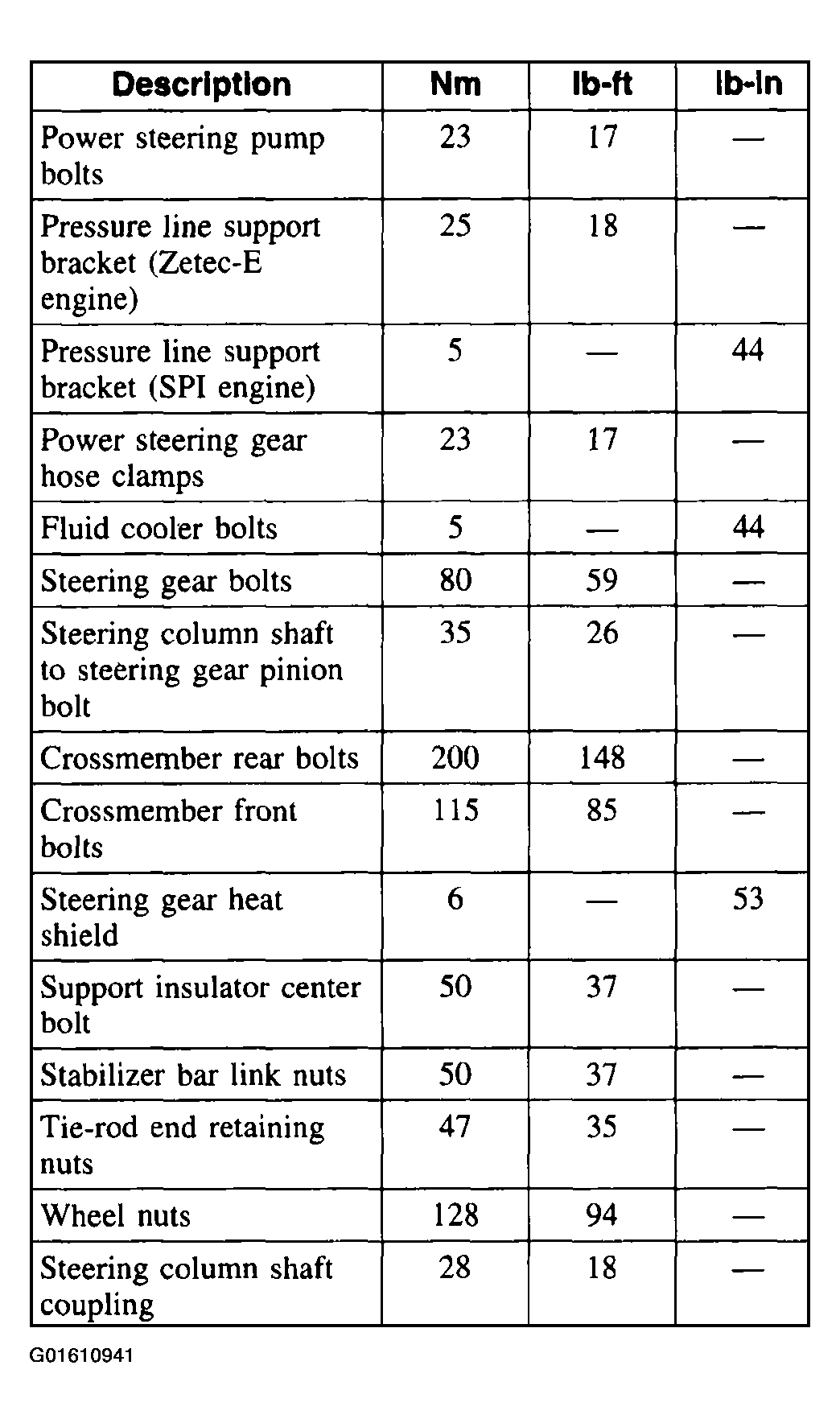

Fig 2: Steering System Torque Specifications (2 Of 2)
G01610941Courtesy of FORD MOTOR CO.
