Main Control Valve Body: Disassembly

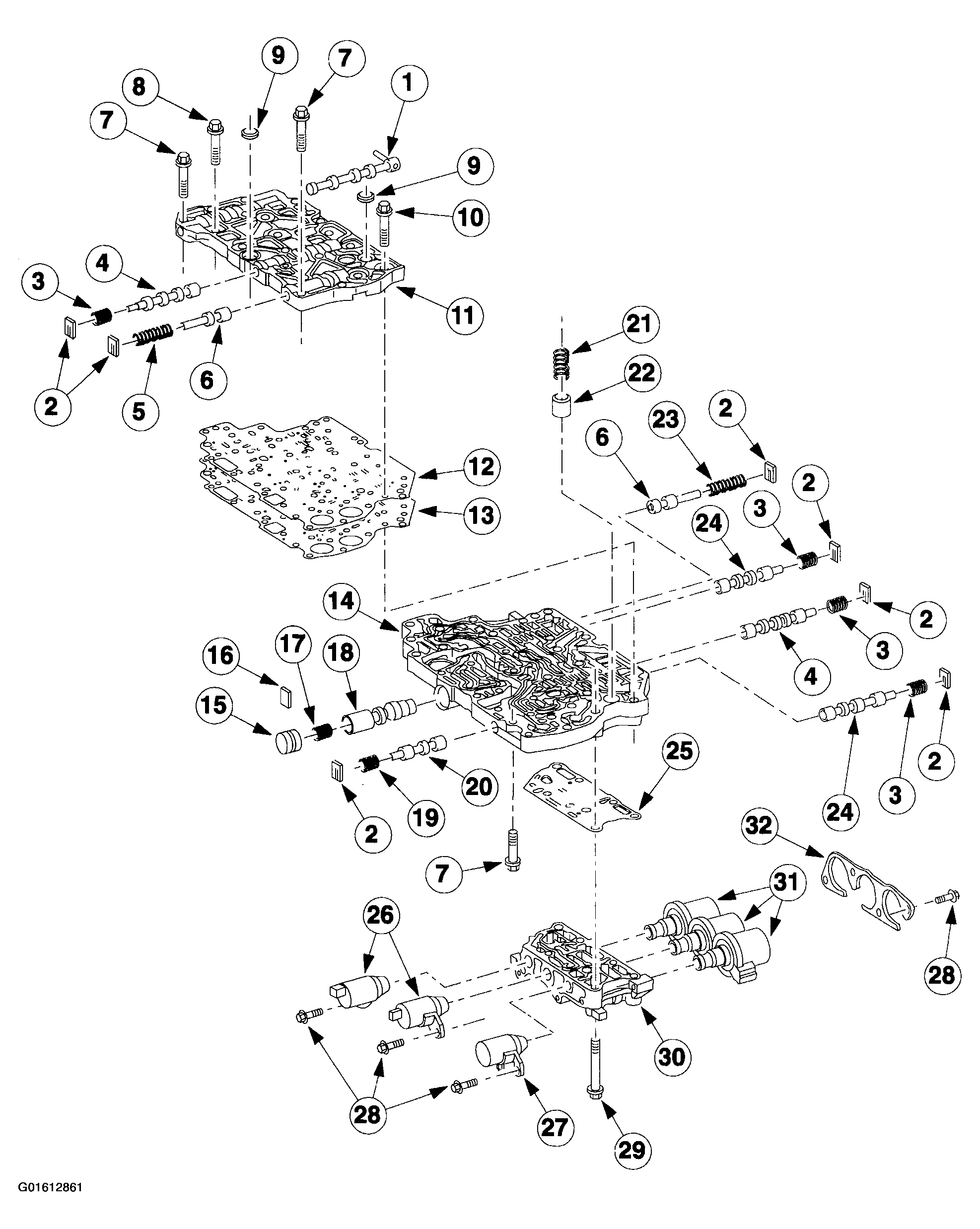

Fig 1: Identifying Components Of Main Control Valve Body

Courtesy of FORD MOTOR CO.

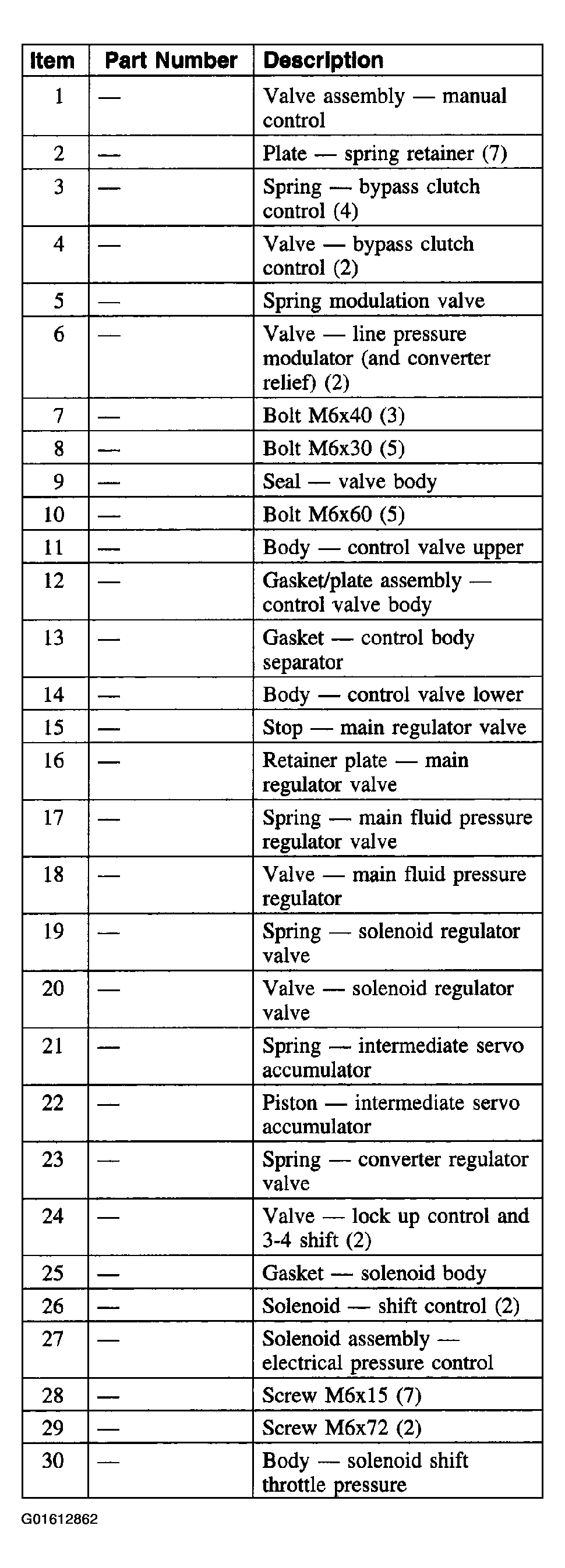

Fig 2: Main Control Valve Body Components Description (Items 1-30)

Courtesy of FORD MOTOR CO.

Fig 3: Main Control Valve Body Components Description (Items 31-32)

Courtesy of FORD MOTOR CO.

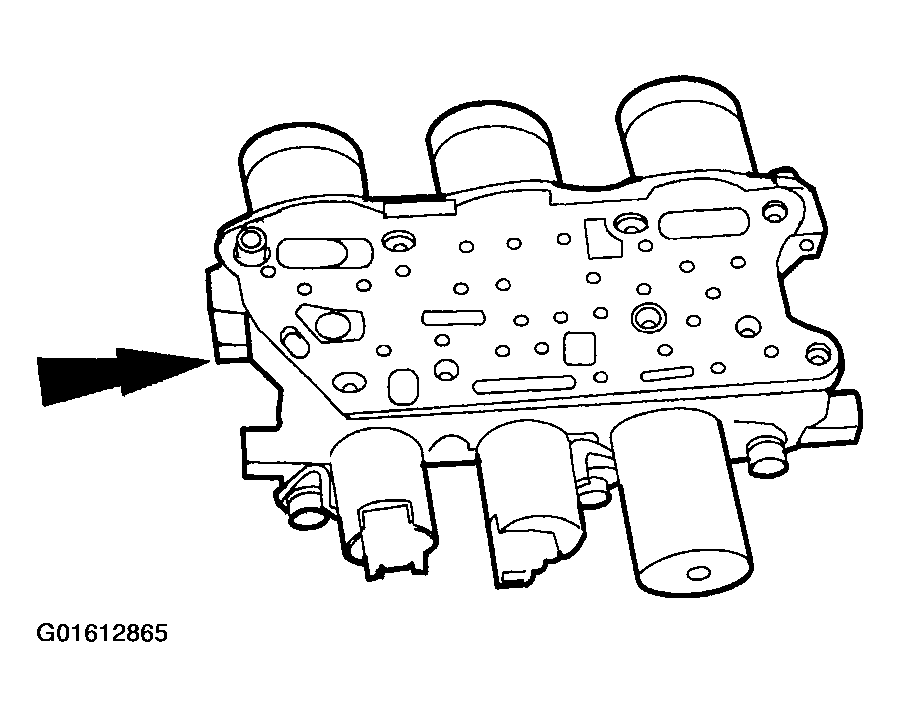

1. Remove the solenoid body bolts and the solenoid body.
   Fig 4: Removing Solenoid Body

   Courtesy of FORD MOTOR CO.

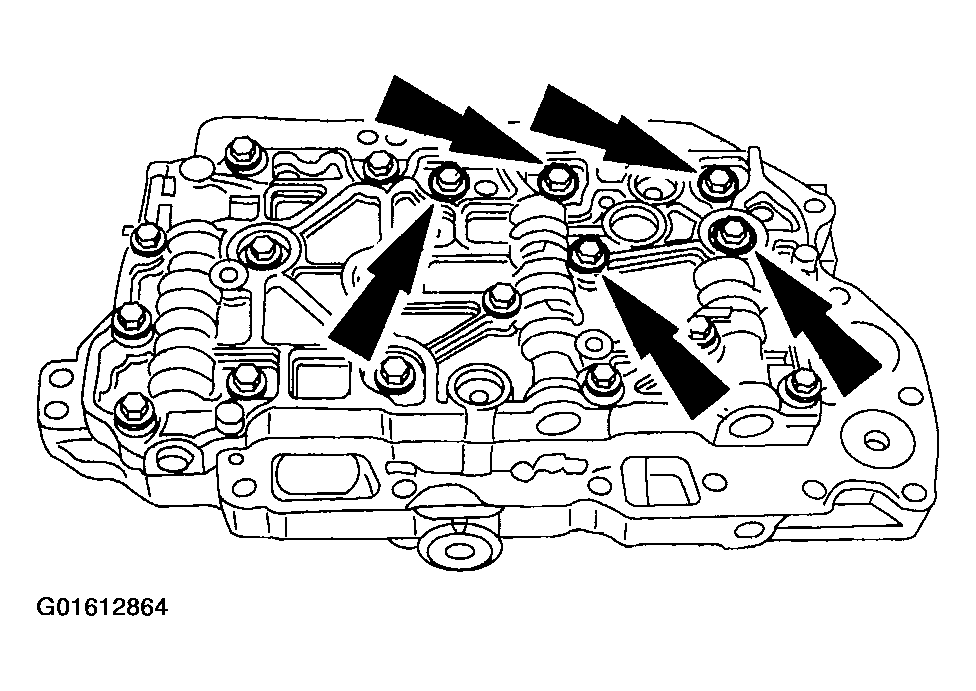

2. Remove and discard the solenoid body gaskets.
   Fig 5: Removing Solenoid Body Gaskets

   Courtesy of FORD MOTOR CO.

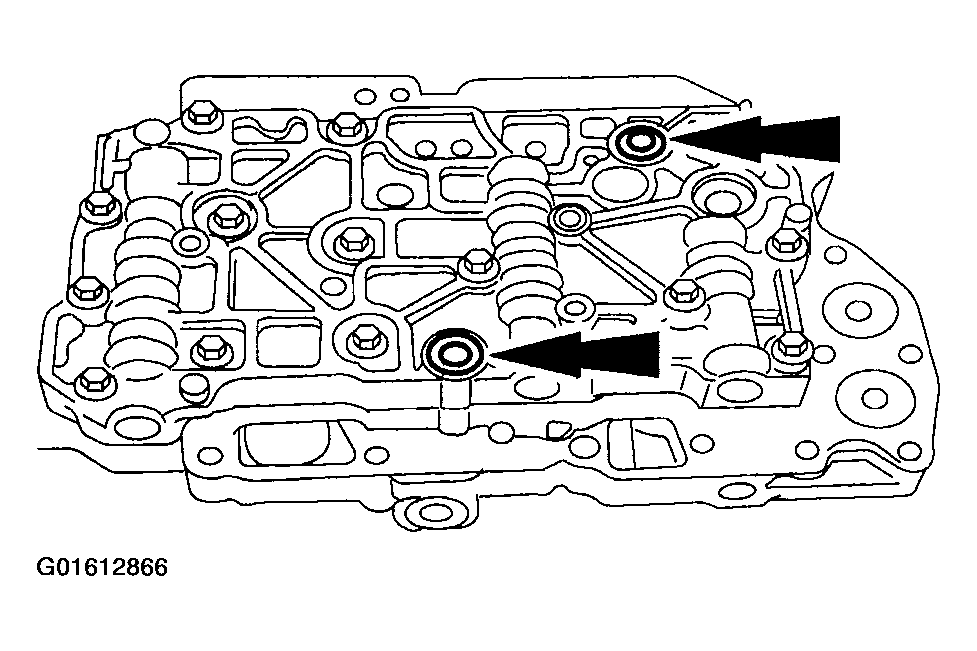

3. Remove and discard the seals.
   Fig 6: Removing Seals

   Courtesy of FORD MOTOR CO.

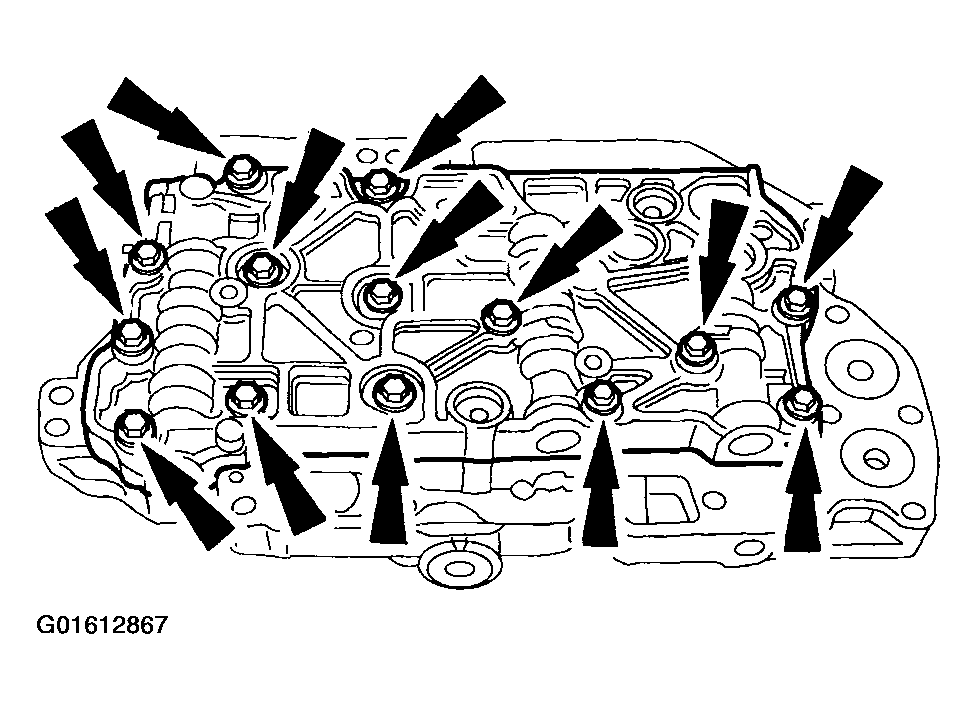

4. Disassemble the main control valve body.
   Fig 7: Disassembling Main Control Valve Body

   Courtesy of FORD MOTOR CO.
