Description And Operation
›
External Controls
›
Selector Lever
Selector Lever

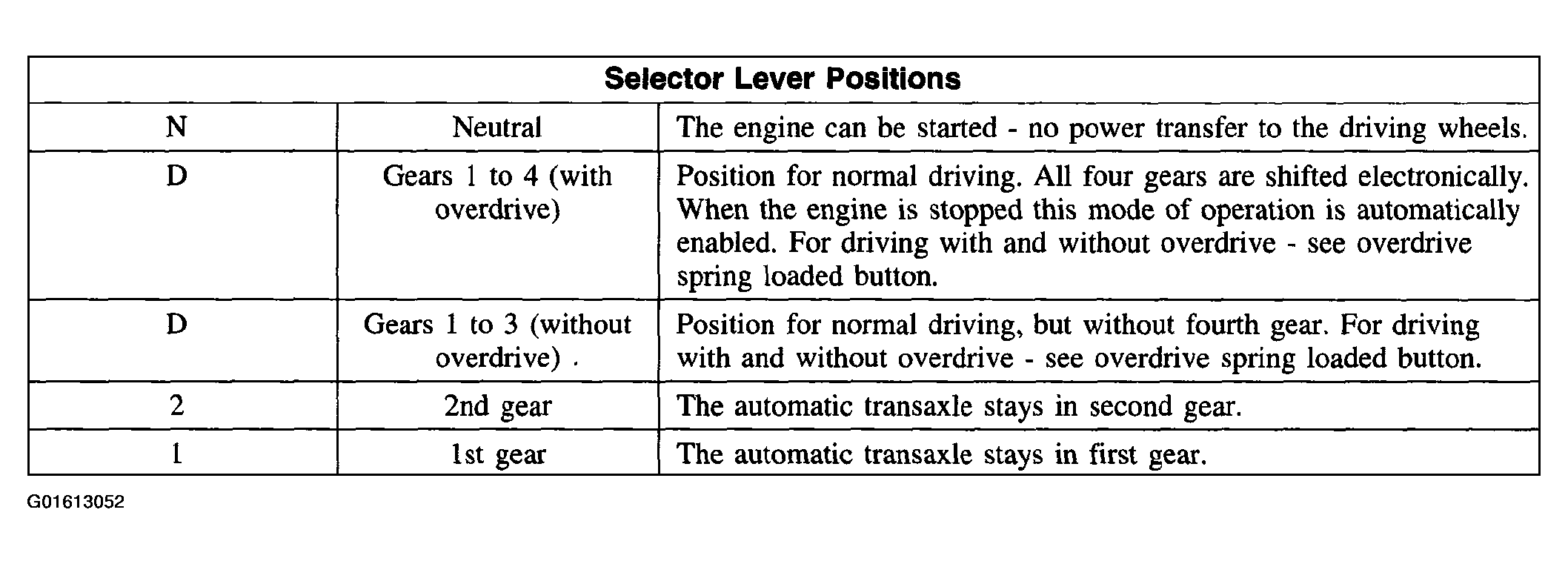

Fig 1: Selector Lever Positions Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

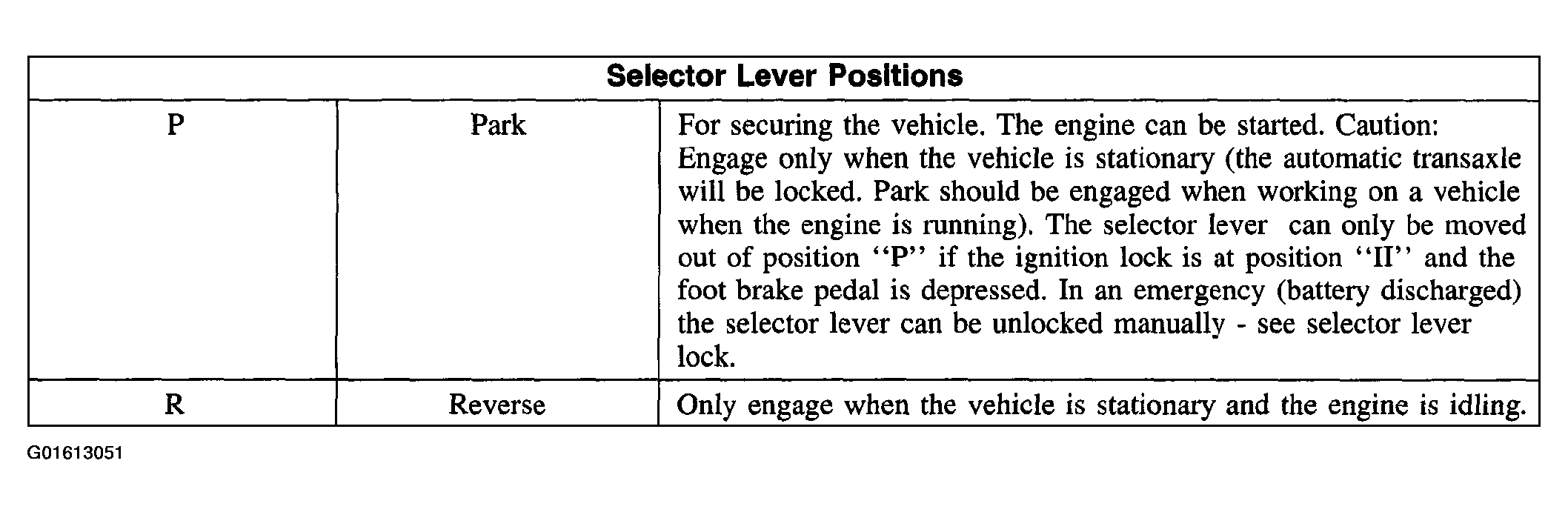

Fig 2: Selector Lever Positions Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
