Transmission External Controls System
›
Diagnosis And Testing
›
External Controls
›
Symptom Chart
Symptom Chart

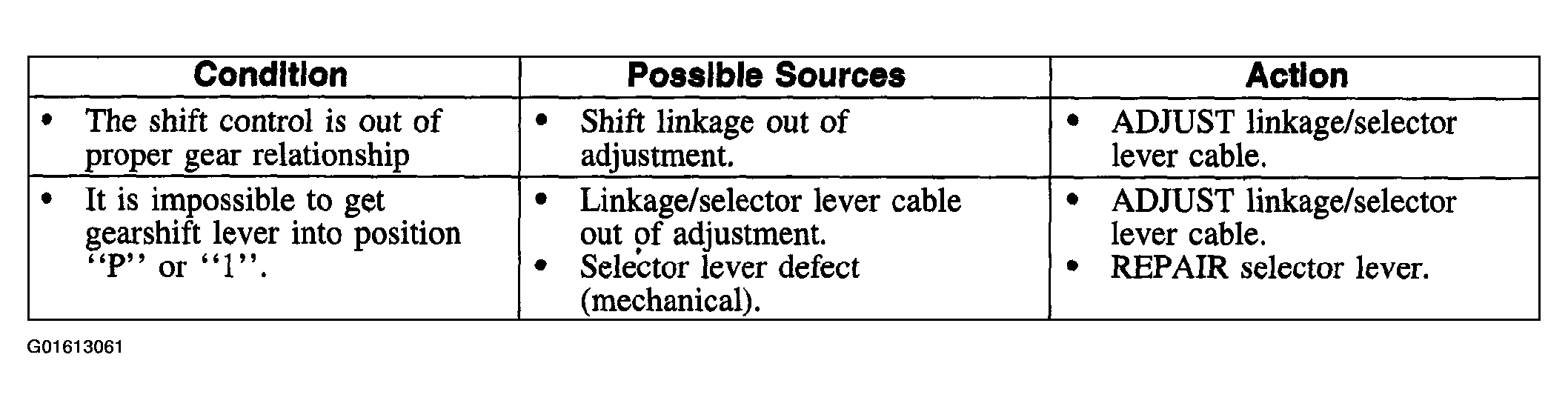

Fig 1: Symptom Chart (1 Of 2)
Courtesy of FORD MOTOR CO.

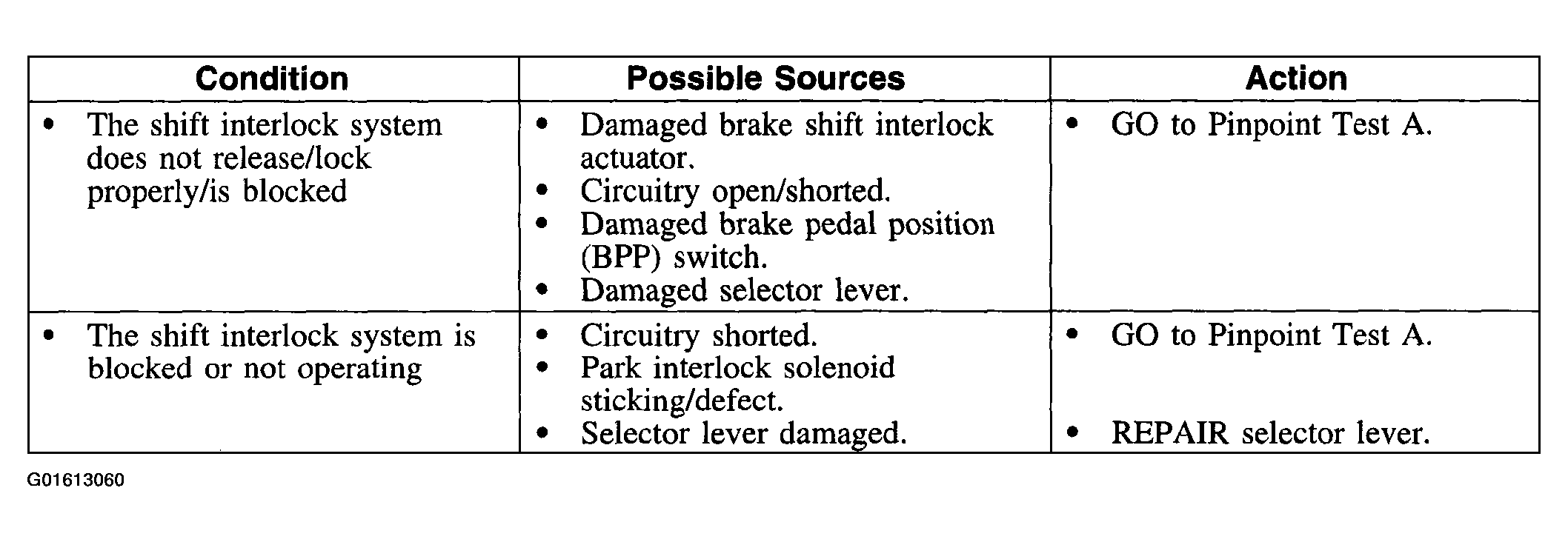

Fig 2: Symptom Chart (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
