Transmission Selector Lever Knob: Installation

Install the selector lever knob.
- Position the knob.
- Install the screw.

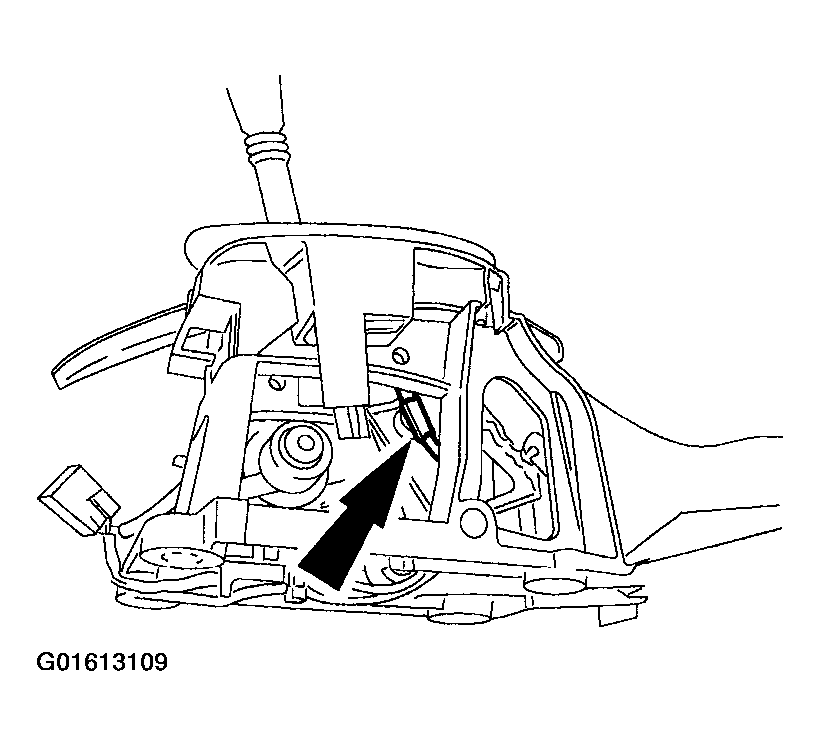

Fig 1: Installing Selector Lever Knob
Courtesy of FORD MOTOR CO.
Connect the O/D switch electrical connector (selector lever assembly removed shown).

Fig 2: Connecting Overdrive Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Install the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
