Pinpoint Tests - OSC Equipped Vehicles: Notes

Special Tool(s)

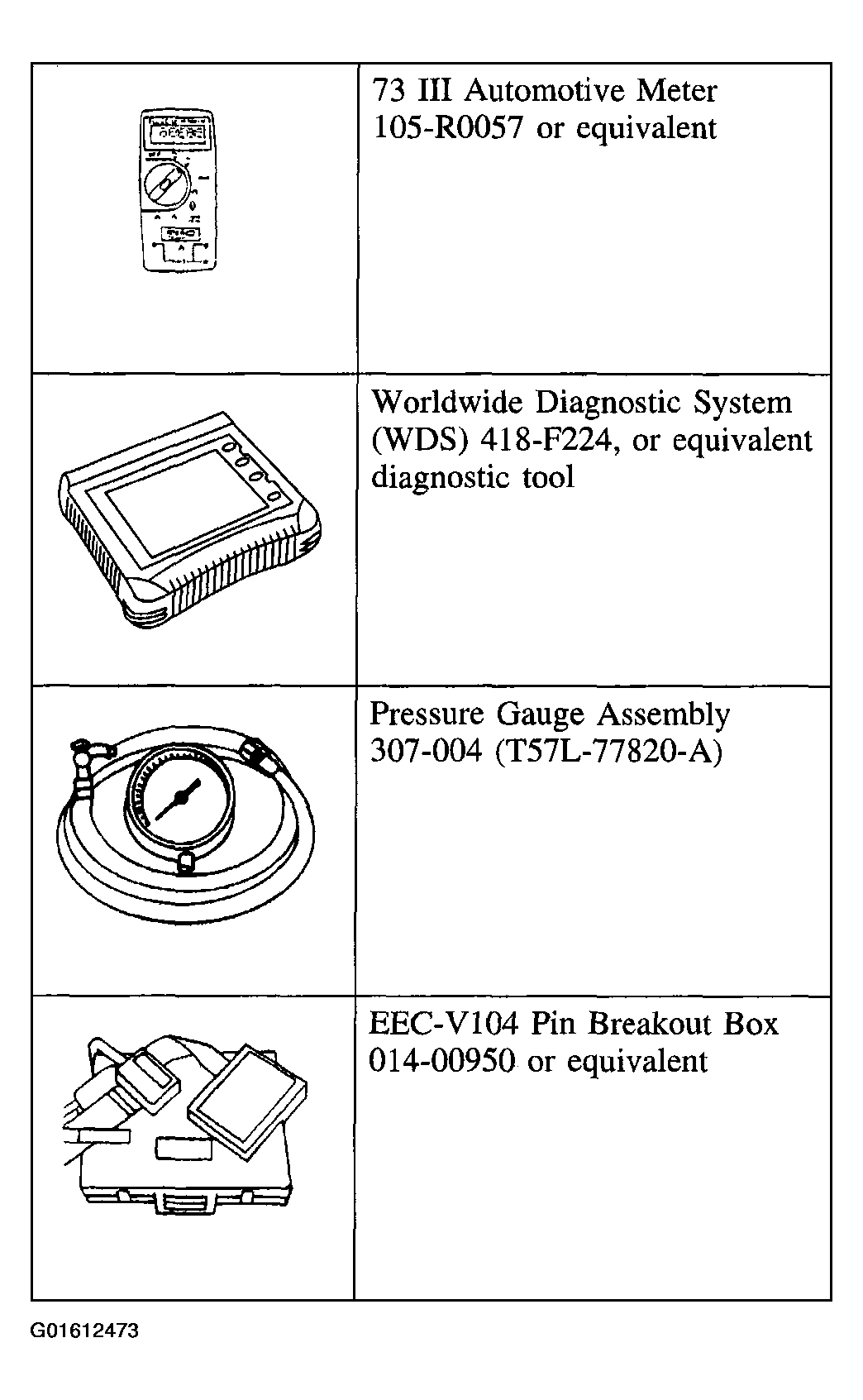

Fig 1: Identifying Special Tools For Pinpoint Tests

Courtesy of FORD MOTOR CO.

Any time an electrical connector or solenoid body is disconnected, inspect the connector for terminal condition, corrosion and contamination. Also inspect the connector seal for damage. Clean, repair or install new as necessary.
