Direct Clutch Hub Shim Selection Chart

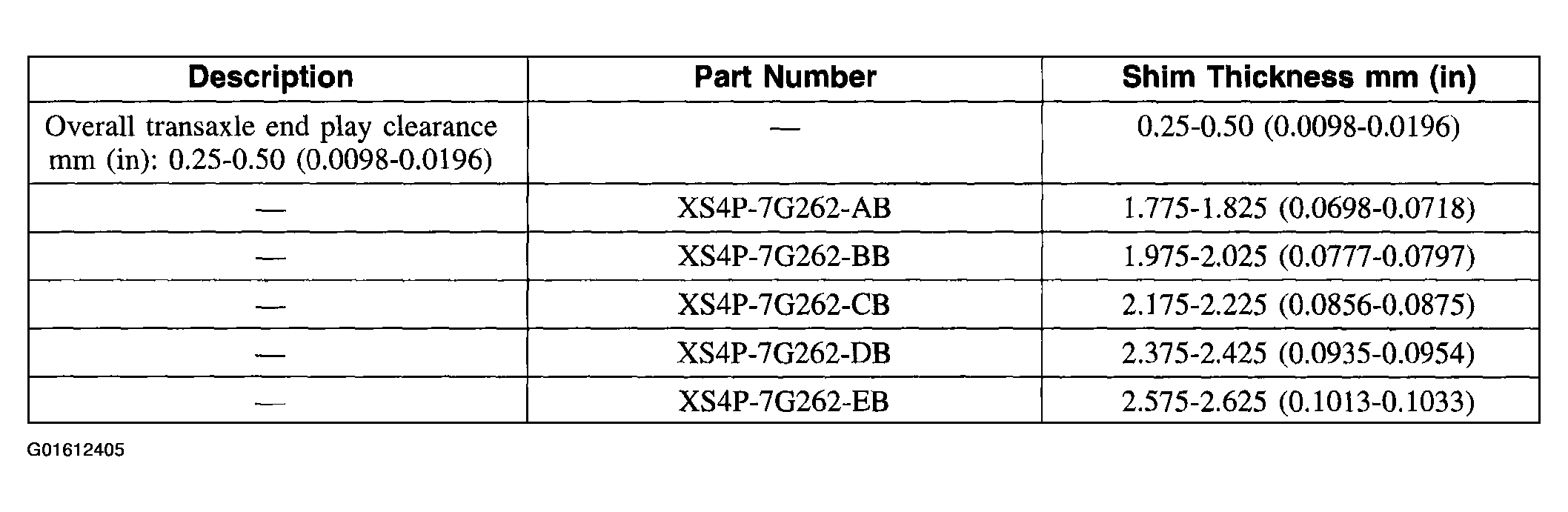

Fig 1: Direct Clutch Hub Shim Selection Chart
G01612405Courtesy of FORD MOTOR CO.
