Pinpoint Test A: The Shift Interlock System Does Not Release/Lock Properly/Is Blocked

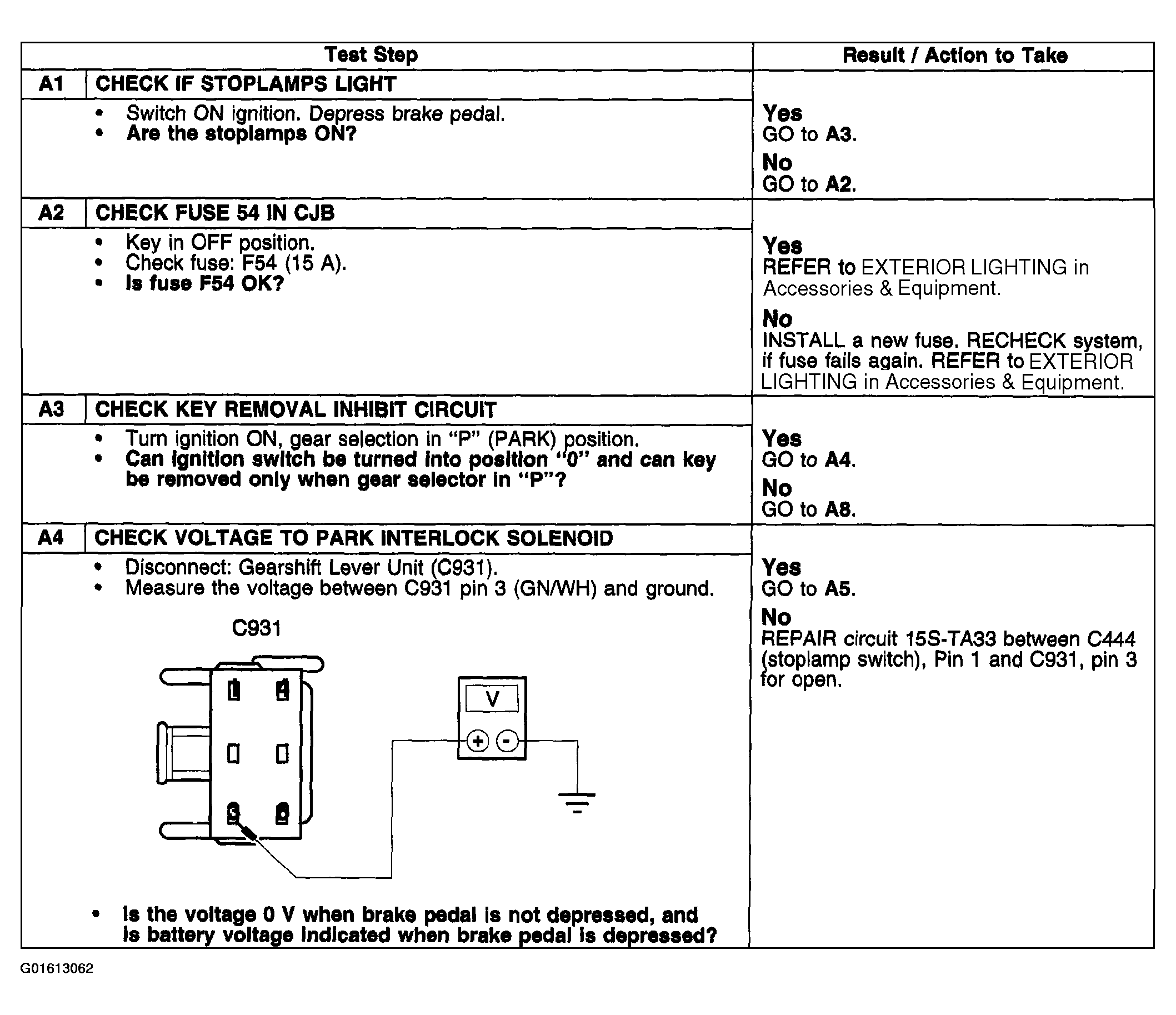

Fig 1: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly/Is Blocked (A1-A4)
G01613062Courtesy of FORD MOTOR CO.

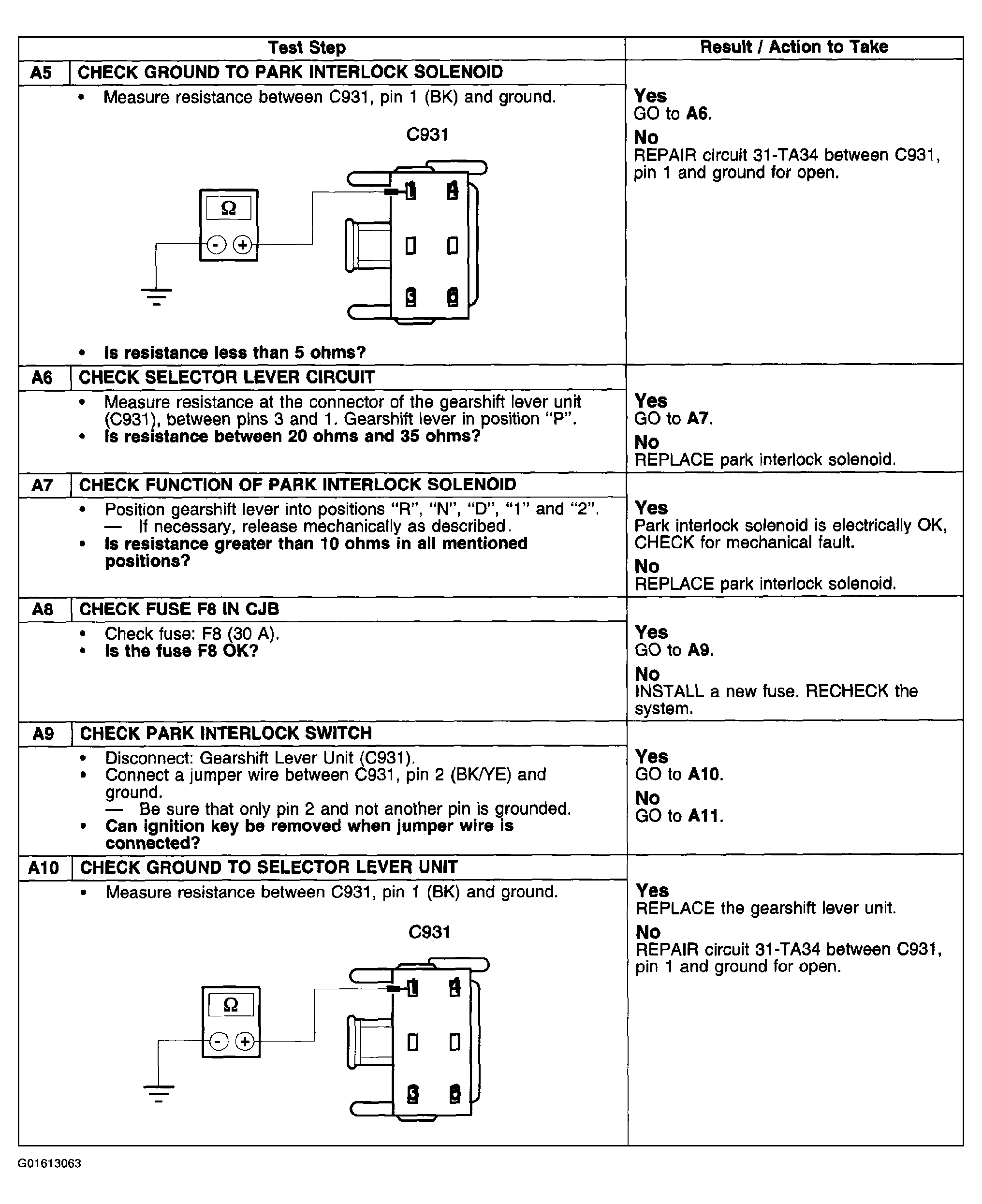

Fig 2: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly/Is Blocked (A5-A10)
G01613063Courtesy of FORD MOTOR CO.

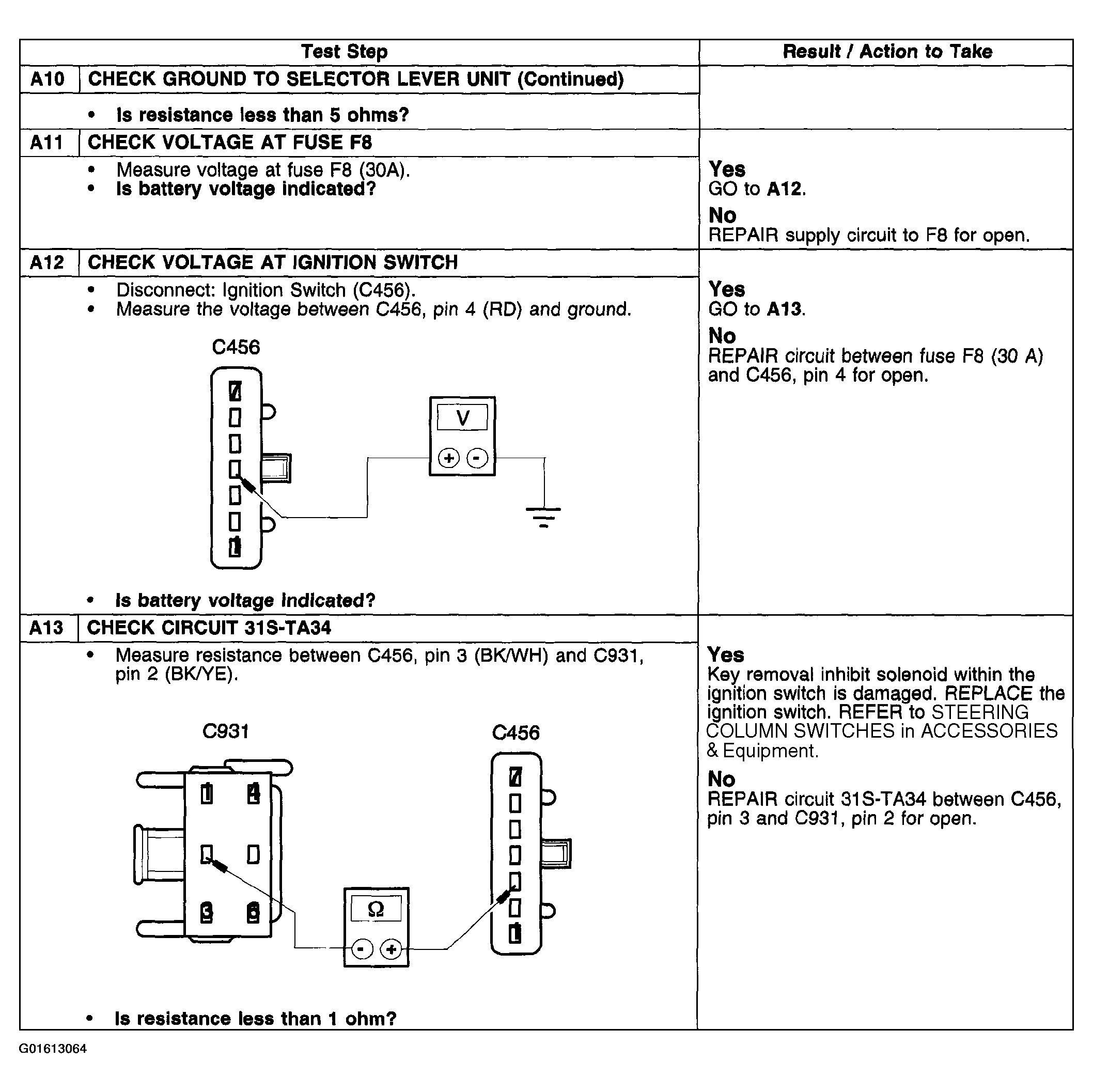

Fig 3: Pinpoint Test A: Shift Interlock System Does Not Release/Lock Properly/Is Blocked (A10-A13)
G01613064Courtesy of FORD MOTOR CO.
