Transmission Selector Lever: Removal

  1. Remove the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
  2. Remove the selector lever cable from the selector.
    1. Shift the selector lever to "P".
    2. Unclip the selector lever cable.
    3. Unclip the selector lever cable outer sleeve.

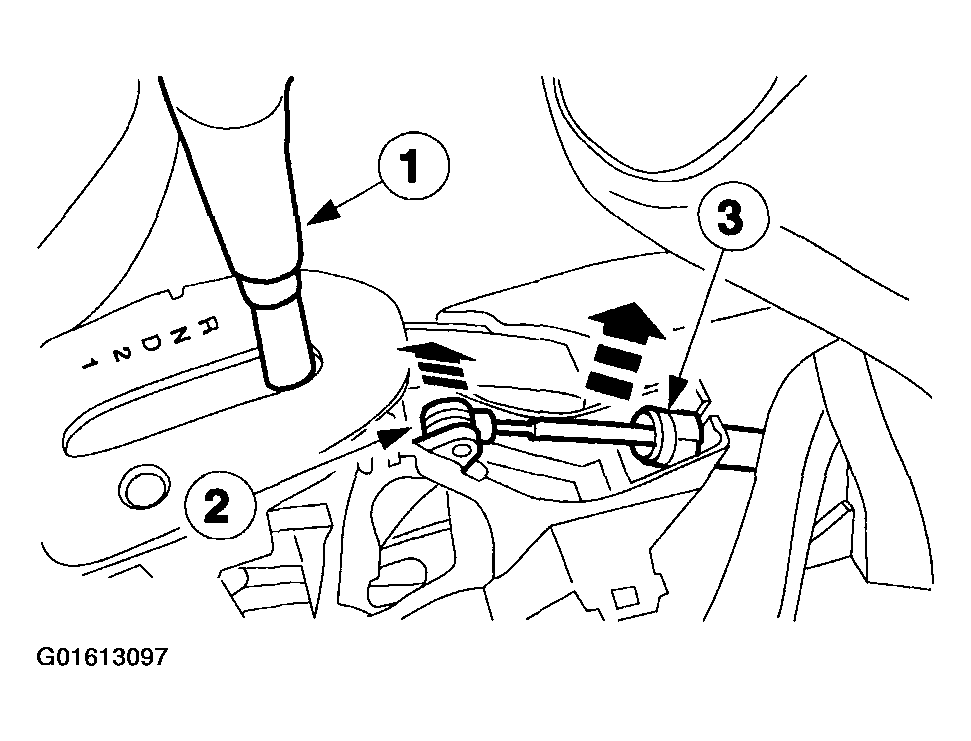

    Fig 1: Removing Selector Lever Cable From Selector
    G01613097Courtesy of FORD MOTOR CO.
  3. Disconnect the selector lever assembly electrical connector.

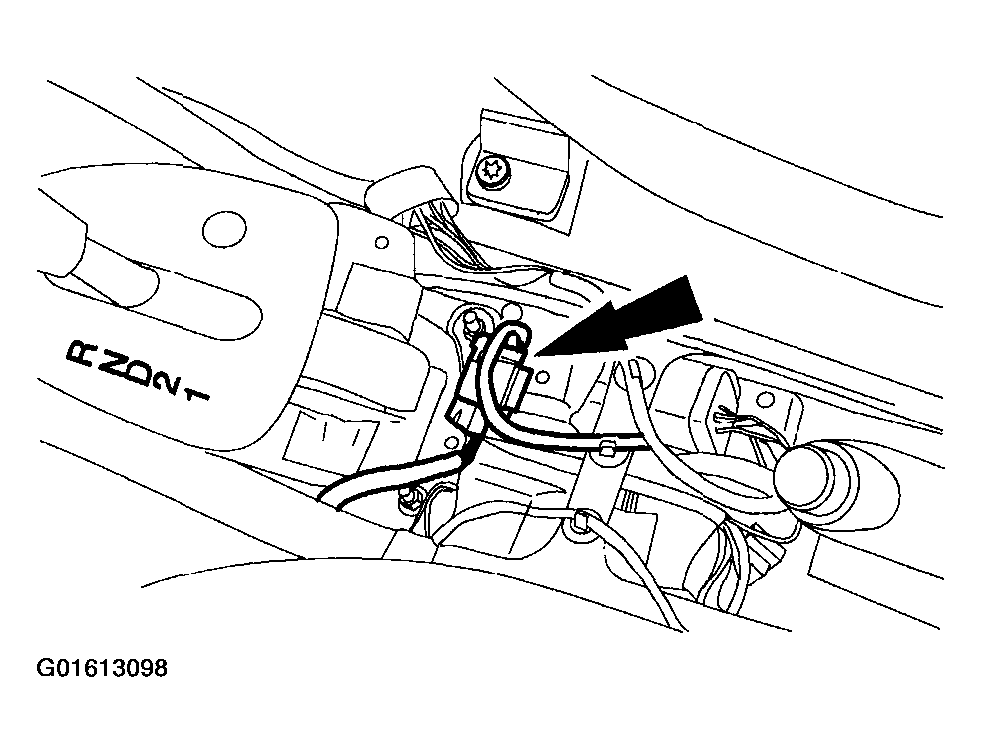

    Fig 2: Disconnecting Selector Lever Assembly Electrical Connector
    G01613098Courtesy of FORD MOTOR CO.
  4. Remove the selector lever assembly.
    • Remove the four nuts.

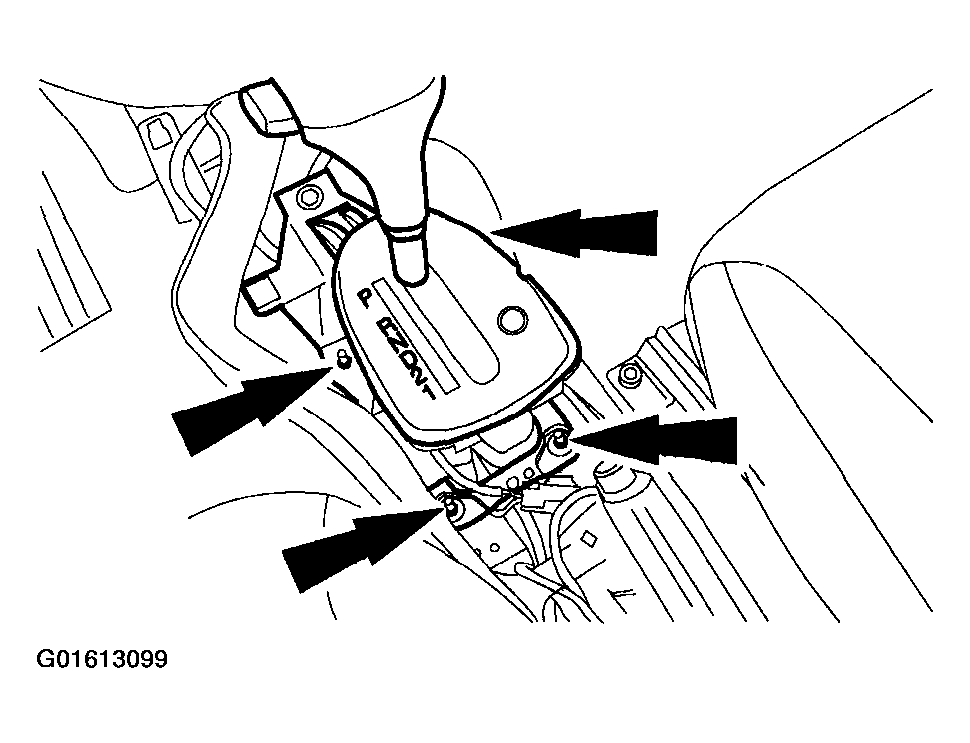

    Fig 3: Removing Selector Lever Assembly
    G01613099Courtesy of FORD MOTOR CO.
