Pinpoint Test M: The Traction Control Indicator Is Inoperative - Traction Control Switch
Pinpoint Test M: The Traction Control Indicator Is Inoperative - Traction Control Switch

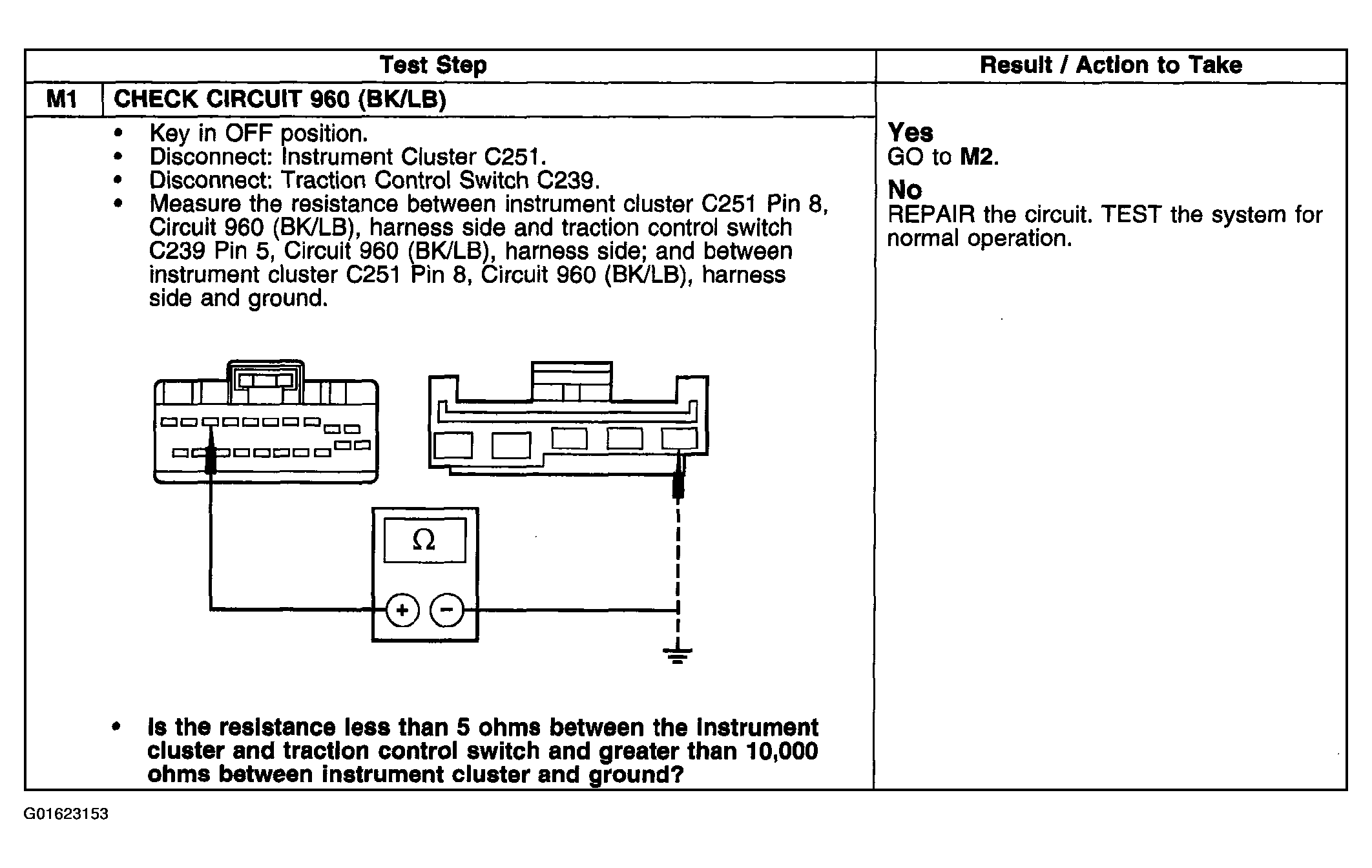

Fig 1: Pinpoint Test M: Traction Control Indicator Is Inoperative - Traction Control Switch (M1)
Courtesy of FORD MOTOR CO.

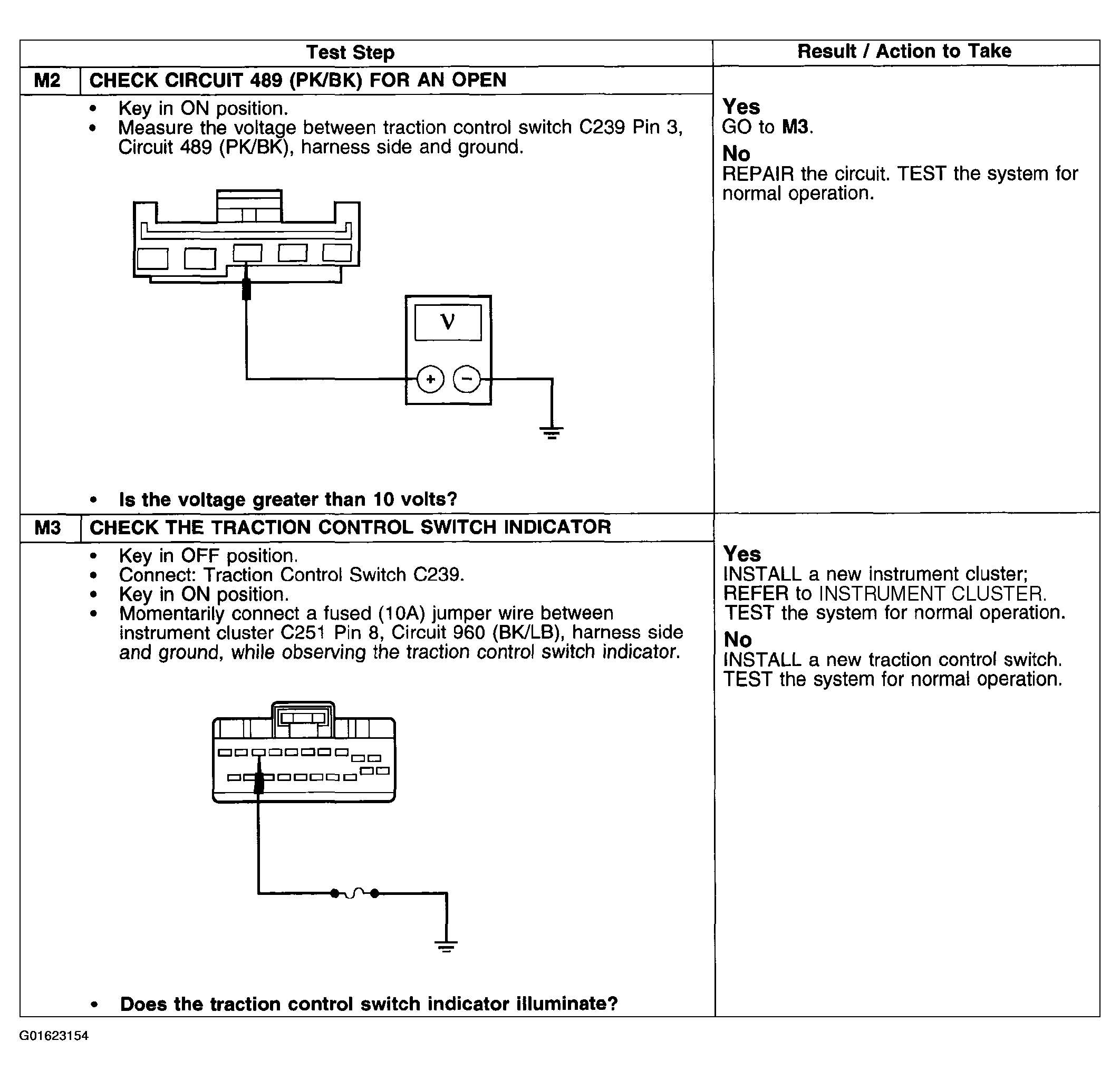

Fig 2: Pinpoint Test M: Traction Control Indicator Is Inoperative - Traction Control Switch (M2 & M3)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
