Engine Dynamic Balance Shaft: Removal

  1. Remove the timing chain (6268). For additional information, refer to TIMING CHAIN .
  2. Disconnect and position the wire harness aside.

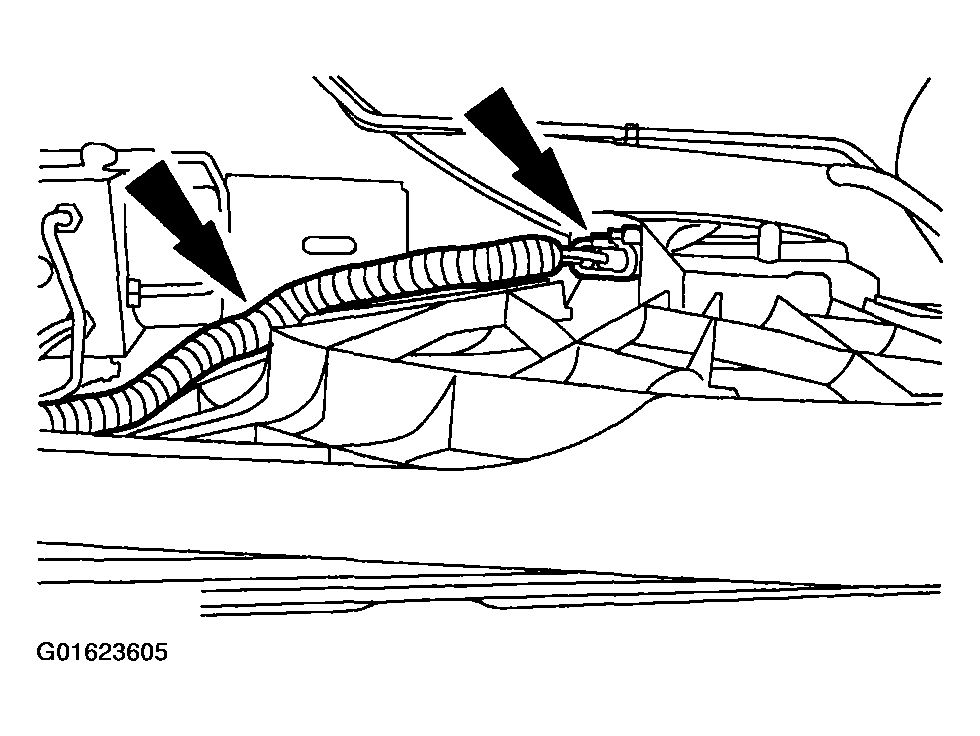

    Fig 1: Disconnecting Wire Harness
    G01623605Courtesy of FORD MOTOR CO.
  3. Remove the radiator fan and shroud assembly (8146).
    Fig 2: Removing Radiator Fan And Shroud Assembly
    G01623606Courtesy of FORD MOTOR CO.
  4. Remove the engine dynamic balance shaft (6A311).
    • Remove the bolts.
    • Remove the balance shaft driver gear, thrust plate and engine dynamic balance shaft as an assembly.

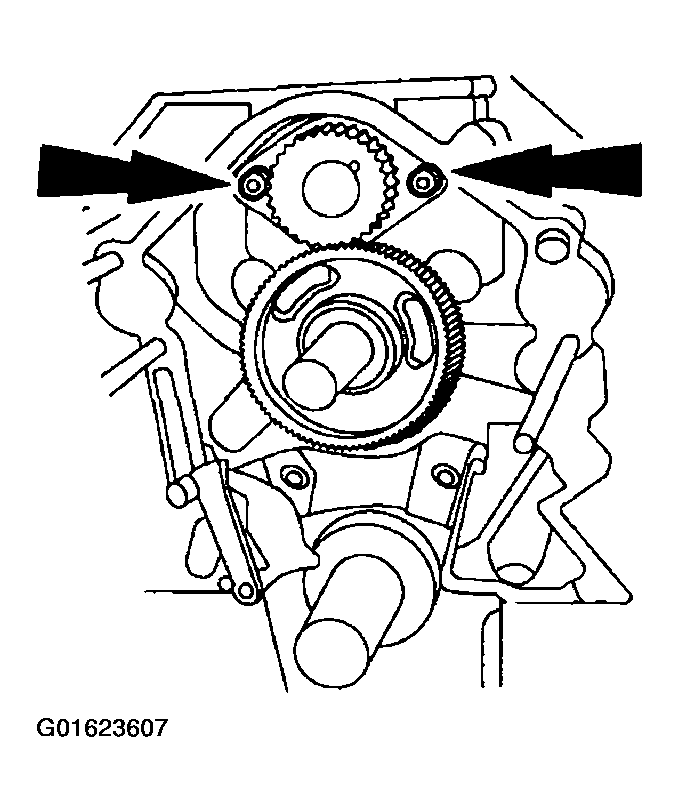

      Fig 3: Removing Engine Dynamic Balance Shaft
      G01623607Courtesy of FORD MOTOR CO.
