Rocker Arm: Removal

CAUTION: If removing more than one rocker arm (6564), mark the components removed for correct location.
  1. Remove the valve covers. For additional information, refer to VALVE COVER-LH  and VALVE COVER-RH .
  2. Remove the rocker arm assembly.
    • Remove the bolt.

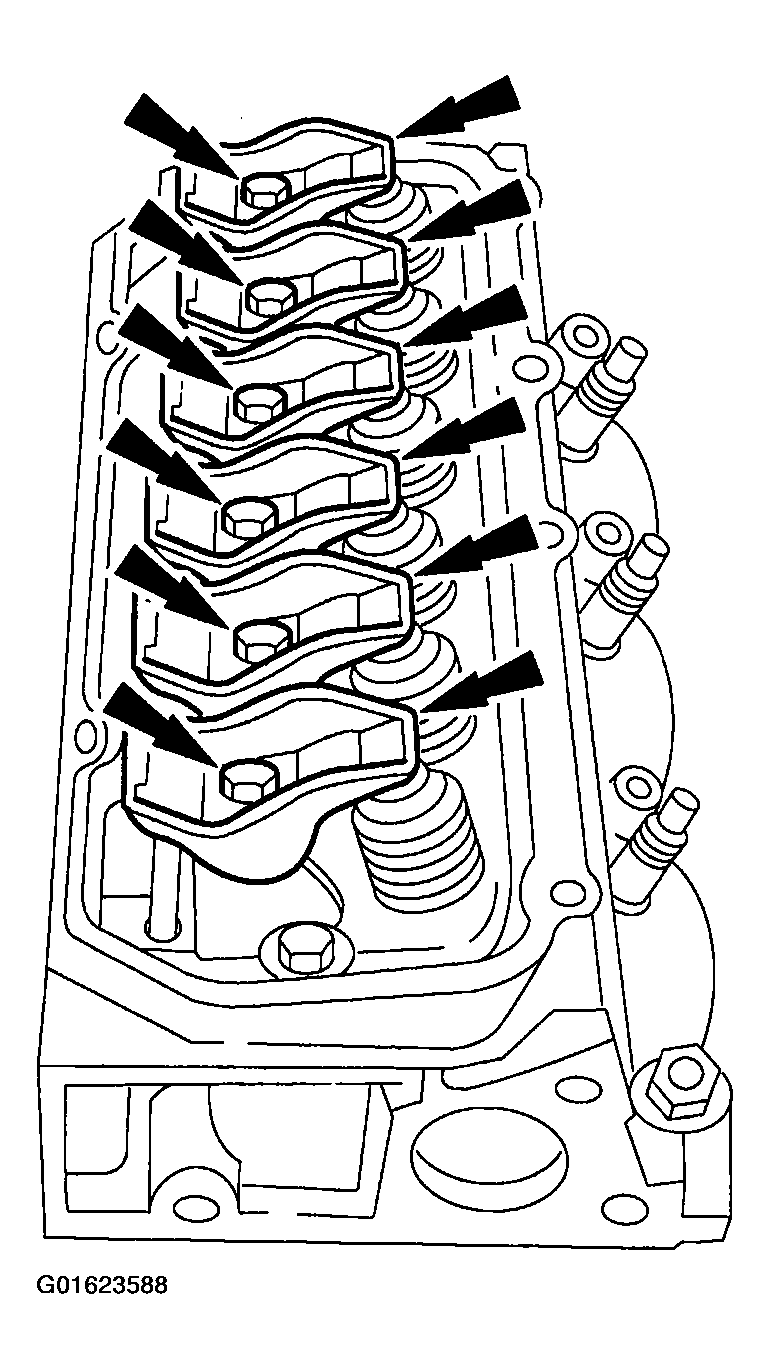

      Fig 1: Removing Rocker Arm Assembly
      G01623588Courtesy of FORD MOTOR CO.
