Valve Tappets: Removal

CAUTION: If removing more than one valve tappet, mark the components removed for correct location.
  1. Remove the lower intake manifold. For additional information, refer to LOWER INTAKE MANIFOLD .
  2. Remove the push rods. For additional information, PUSH ROD .
  3. Remove the eight valve tappets.
    1. Remove the bolts.
    2. Remove the tappet guide plate and retainer.
    3. Remove the valve tappets.

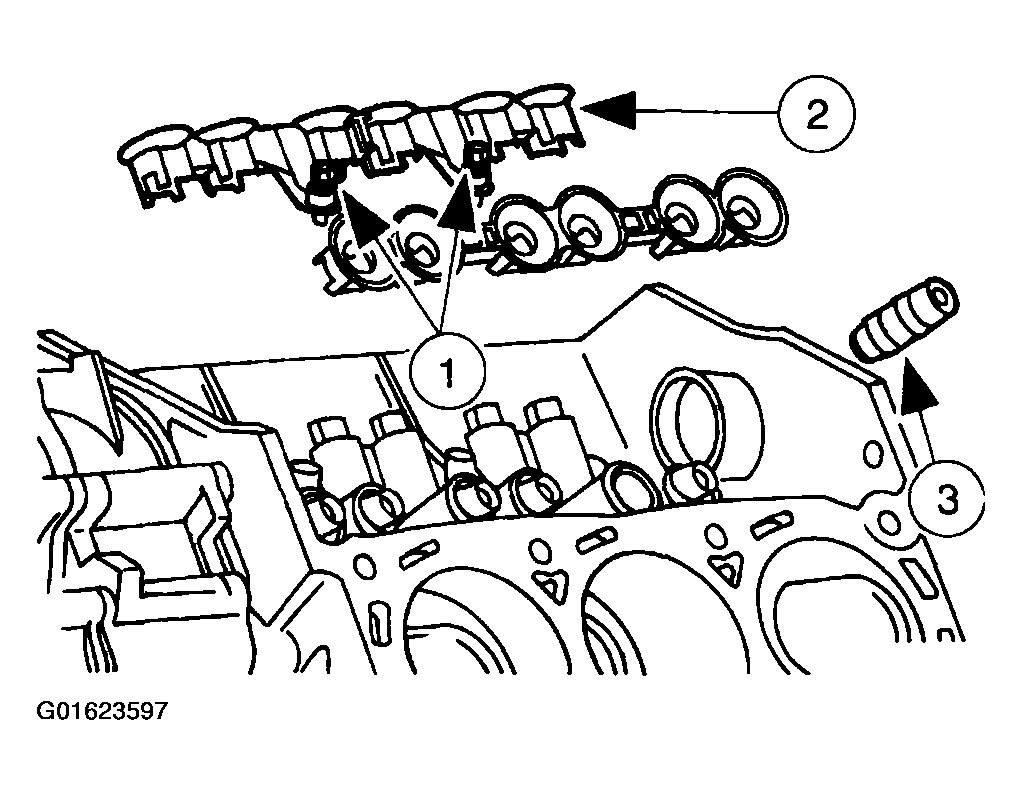

      Fig 1: Removing Valve Tappets
      G01623597Courtesy of FORD MOTOR CO.
