One-Way Clutch-Intermediate

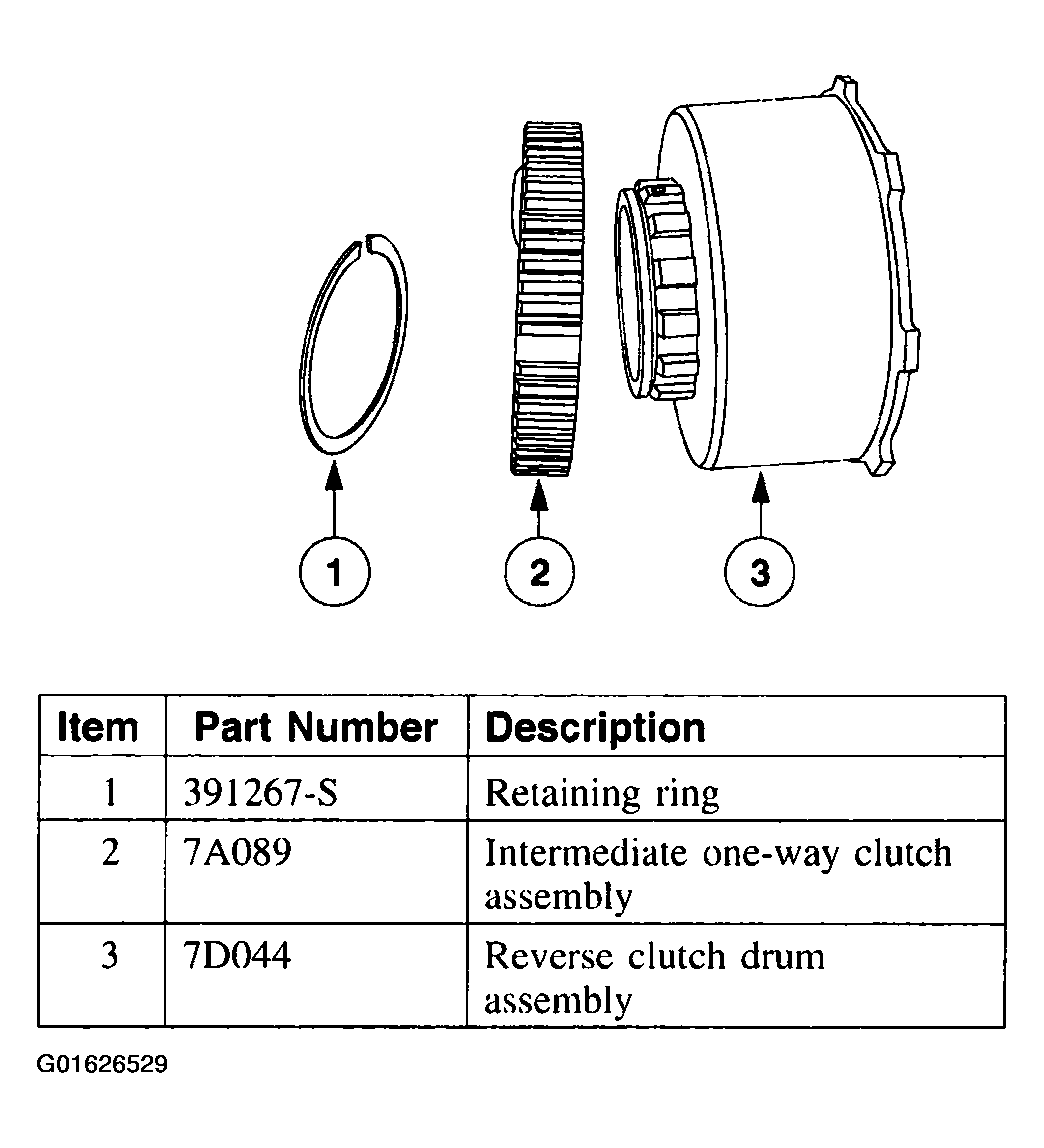

Fig 1: Identifying One-Way Clutch-Intermediate Components
G01626529Courtesy of FORD MOTOR CO.

The intermediate one-way clutch works with the intermediate friction clutch to hold the reverse clutch drum and reverse sun gear stationary in second gear during acceleration. The intermediate one-way clutch freewheels in third gear and during coasting in second gear, (D) and D ranges.
