Actuator - Speed Control Servo: Notes

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

Disconnect the battery ground cable.
Remove the LH wheel and tire: refer to WHEELS & TIRES .
Position aside the LH front splash shield.
1. Remove the pin-type retainers.
2. Remove the screws.
3. Position aside the LH front splash shield.

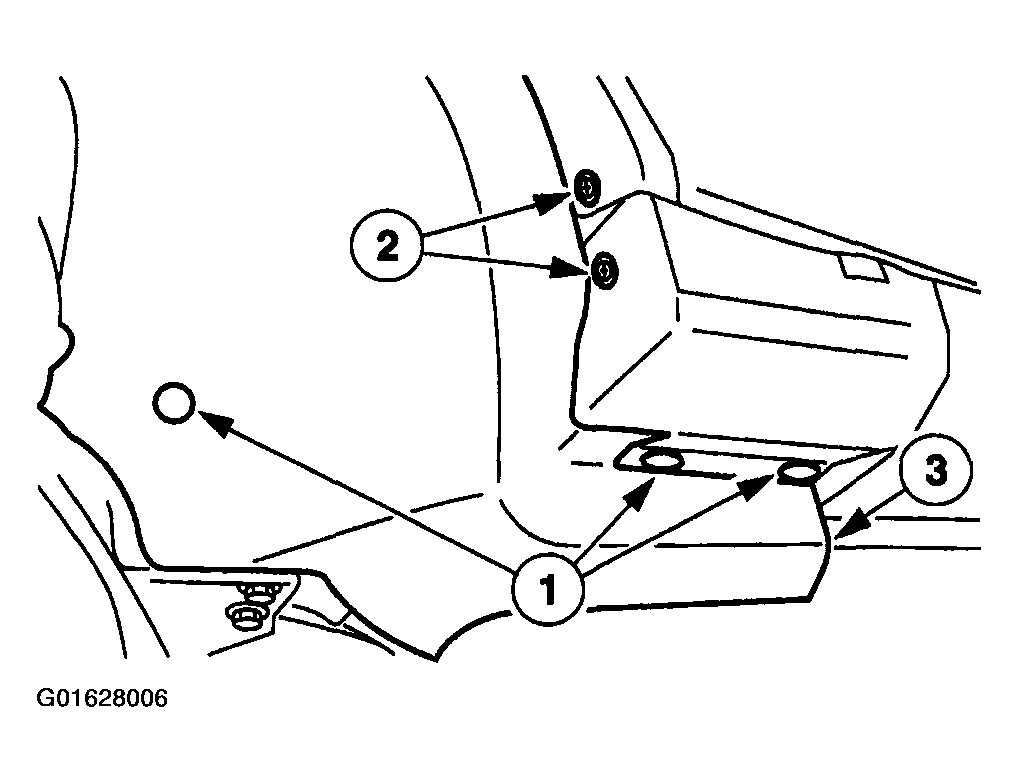

Fig 1: Removing LH Front Splash Shield
Courtesy of FORD MOTOR CO.
Disconnect the speed control servo electrical connector.

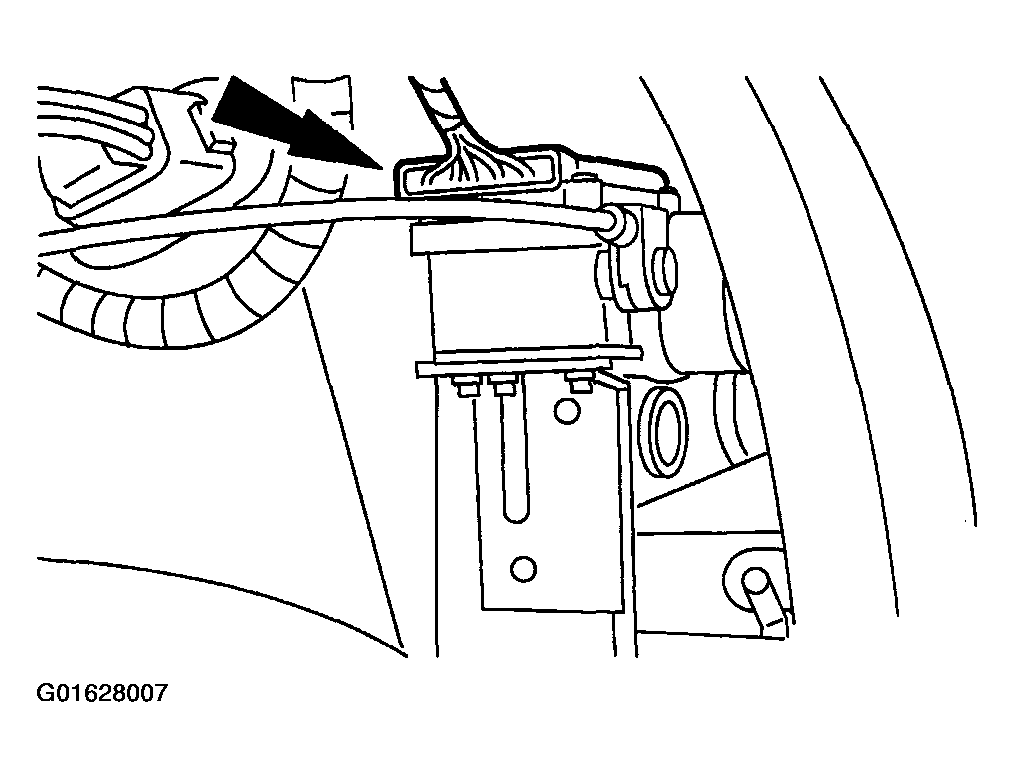

Fig 2: Disconnecting Speed Control Servo Electrical Connector
Courtesy of FORD MOTOR CO.
Depress the locking tab and rotate the speed control actuator cable cap to remove.

Fig 3: Removing Speed Control Actuator Cable Cap
Courtesy of FORD MOTOR CO.
Disconnect the speed control cable from the throttle nailhead.
Disconnect the speed control actuator cable from the speed control servo pulley.
1. Gently push in the retaining spring.
2. Disconnect the speed control cable slug from the speed control servo pulley.
Fig 4: Disconnecting Speed Control Actuator Cable From Speed Control Servo Pulley
Courtesy of FORD MOTOR CO.
Remove the speed control servo.
1. Remove the bolts.
2. Remove the speed control servo.

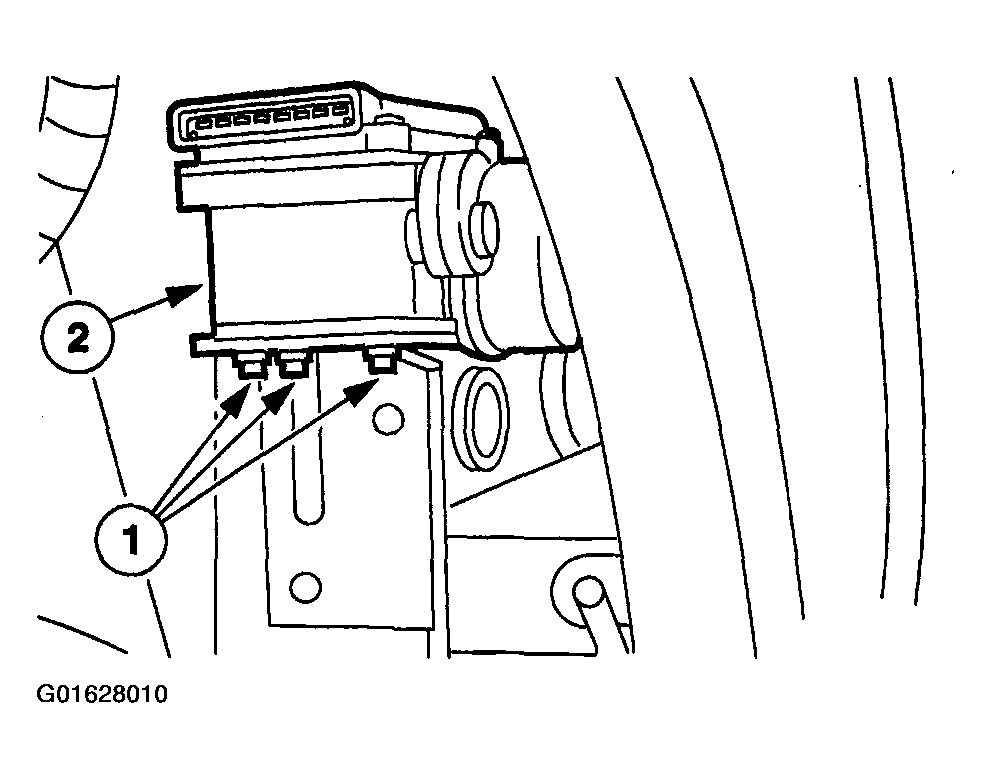

Fig 5: Removing Speed Control Servo
Courtesy of FORD MOTOR CO.
