Description And Operation
›
Power Steering
›
System View
›
Steering System Components - 4.6L Engine
Steering System Components - 4.6L Engine

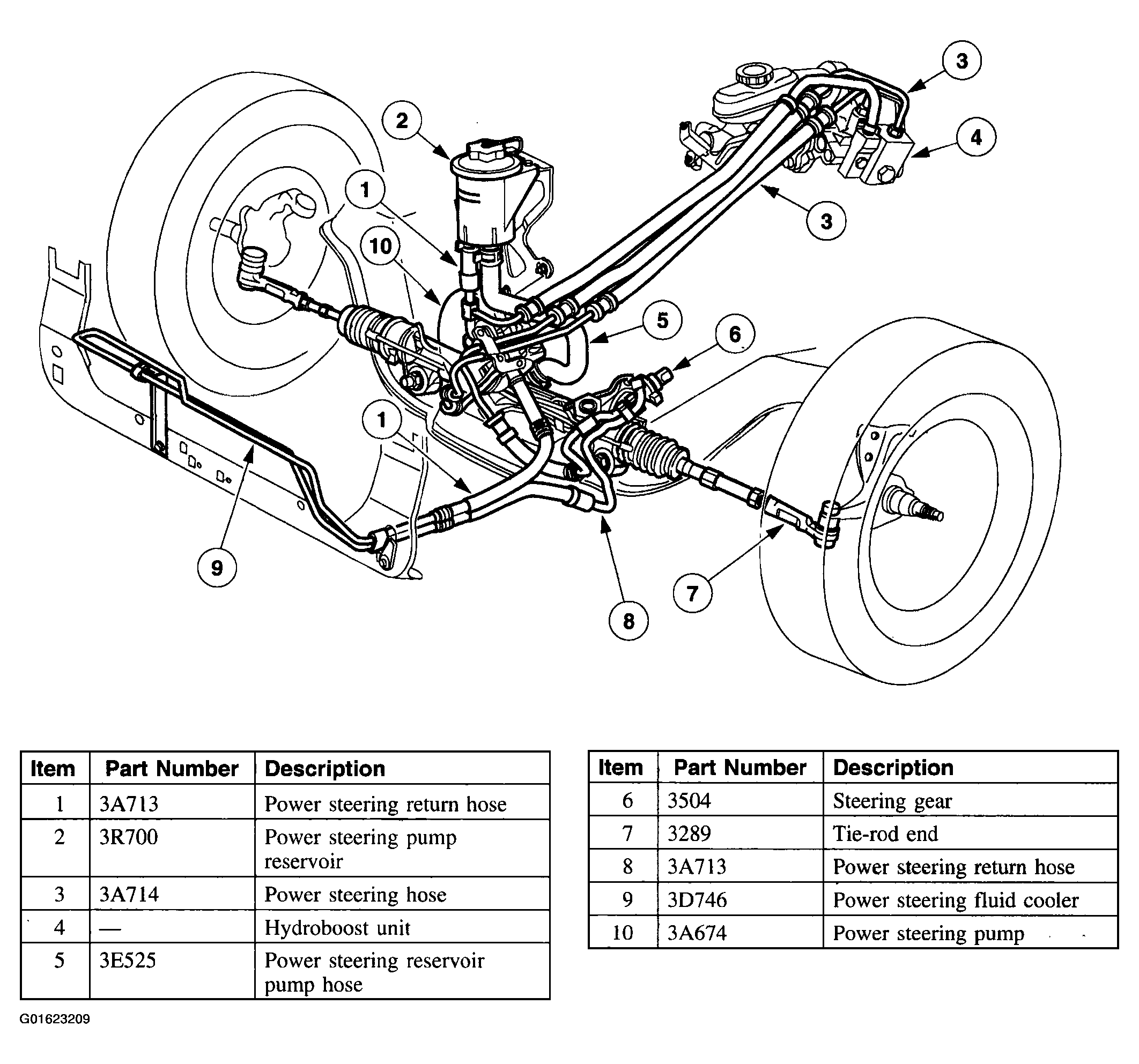

Fig 1: Identifying Steering System Components - 4.6L Engine
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
