Pinpoint Test C: The Doors Do Not Lock/Unlock Using Remote Transmitter

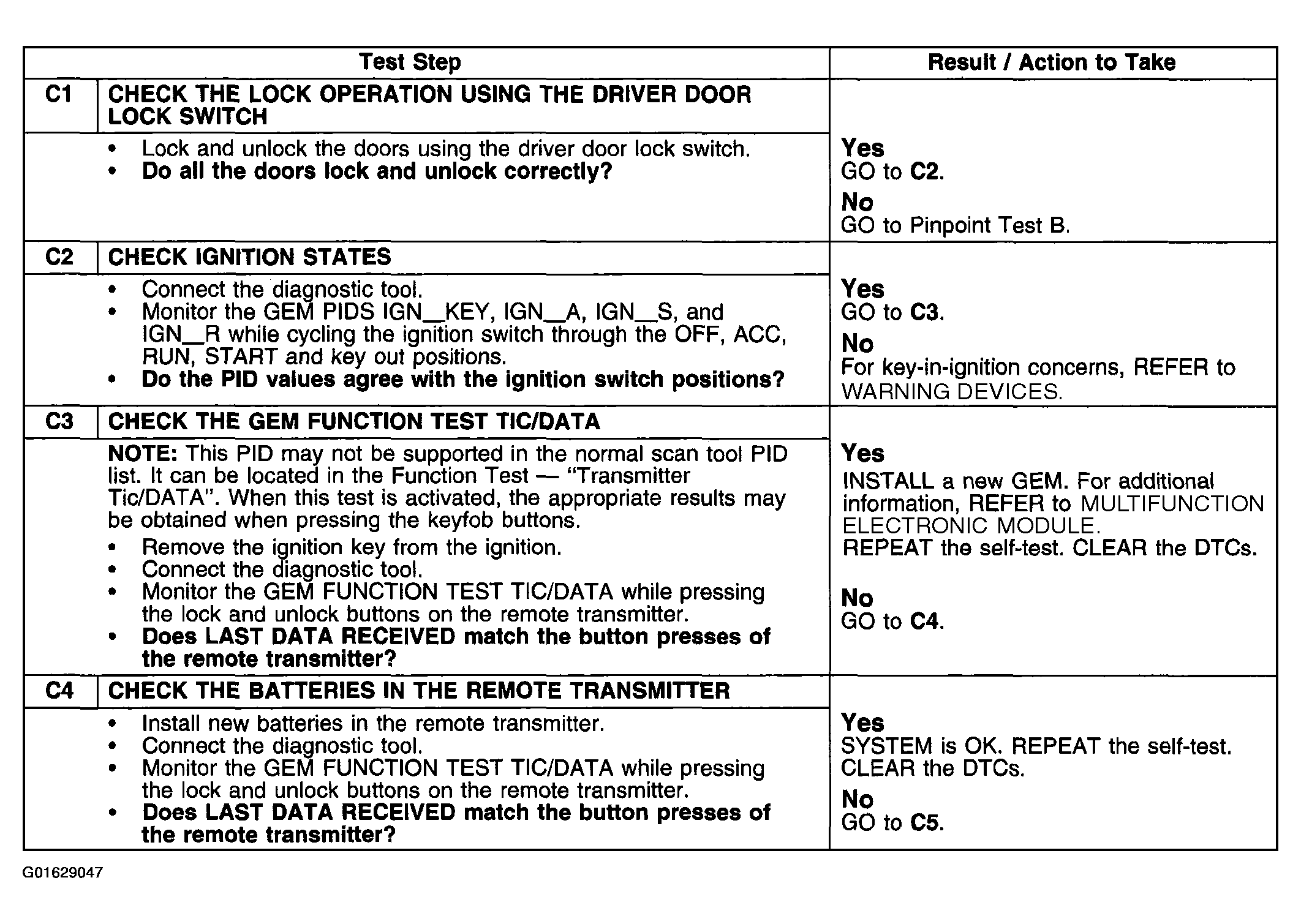

Fig 1: Identifying Pinpoint Test C: Doors Do Not Lock/Unlock Using Remote Transmitter (C1-C4)
G01629047Courtesy of FORD MOTOR CO.

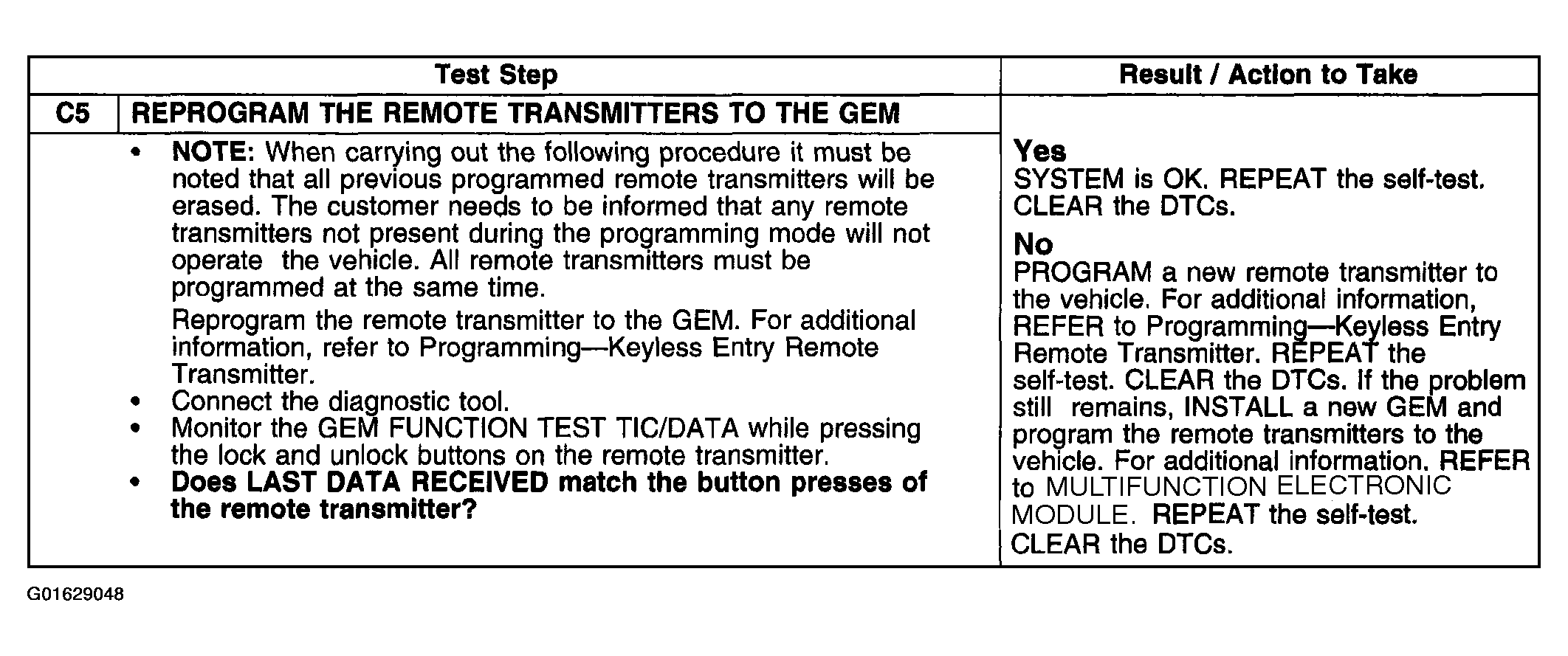

Fig 2: Identifying Pinpoint Test C: Doors Do Not Lock/Unlock Using Remote Transmitter (C5)
G01629048Courtesy of FORD MOTOR CO.
