Pinpoint Test A: No Communication With Anti-Lock Brake Control Module

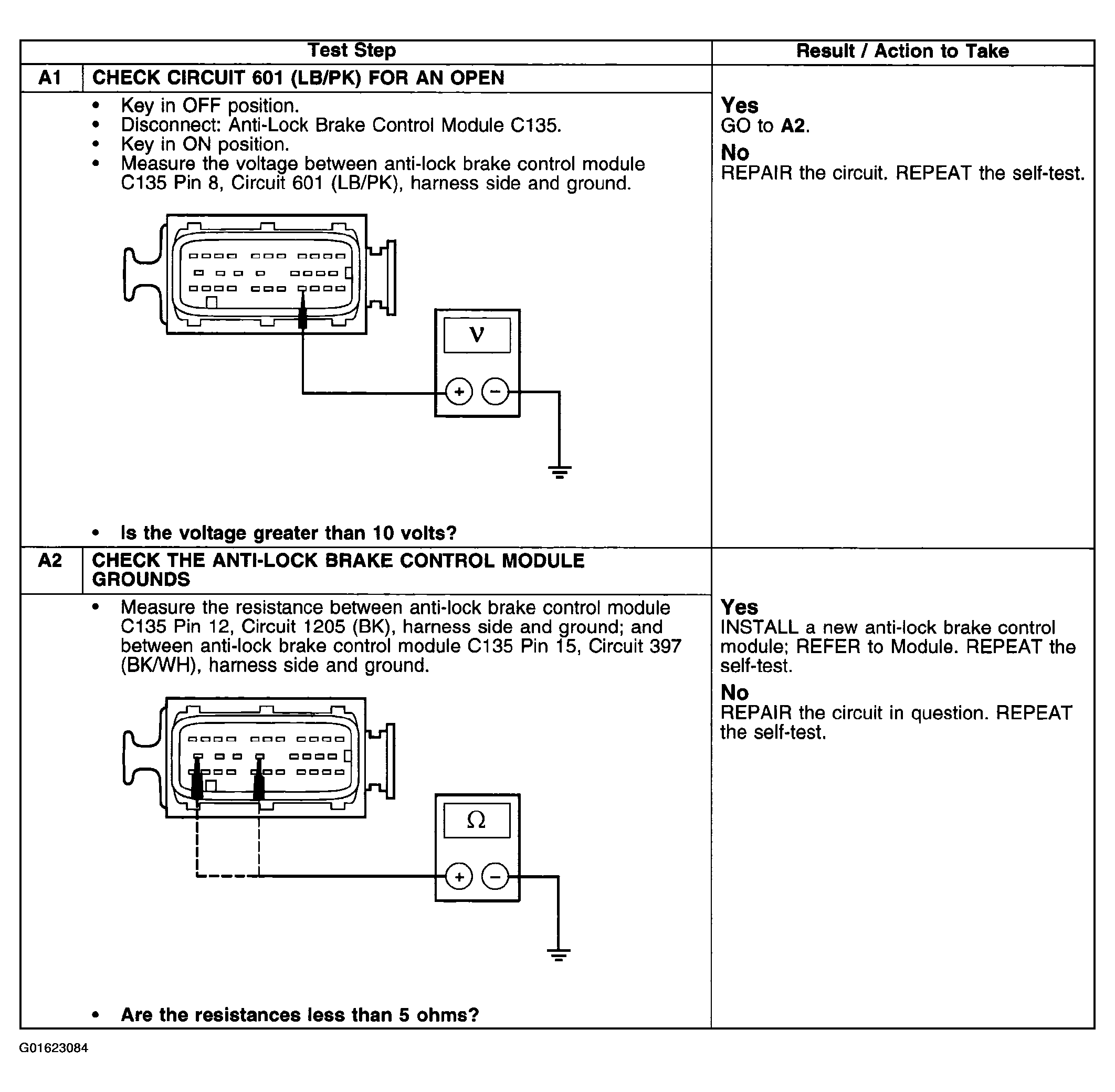

Fig 1: Pinpoint Test A: No Communication With Anti-Lock Brake Control Module (A1 & A2)
G01623084Courtesy of FORD MOTOR CO.
