Removal And Installation: Module: Removal

Remove the hydraulic control unit (HCU).
Refer to HYDRAULIC CONTROL UNIT .
Remove the pump motor electrical connector.

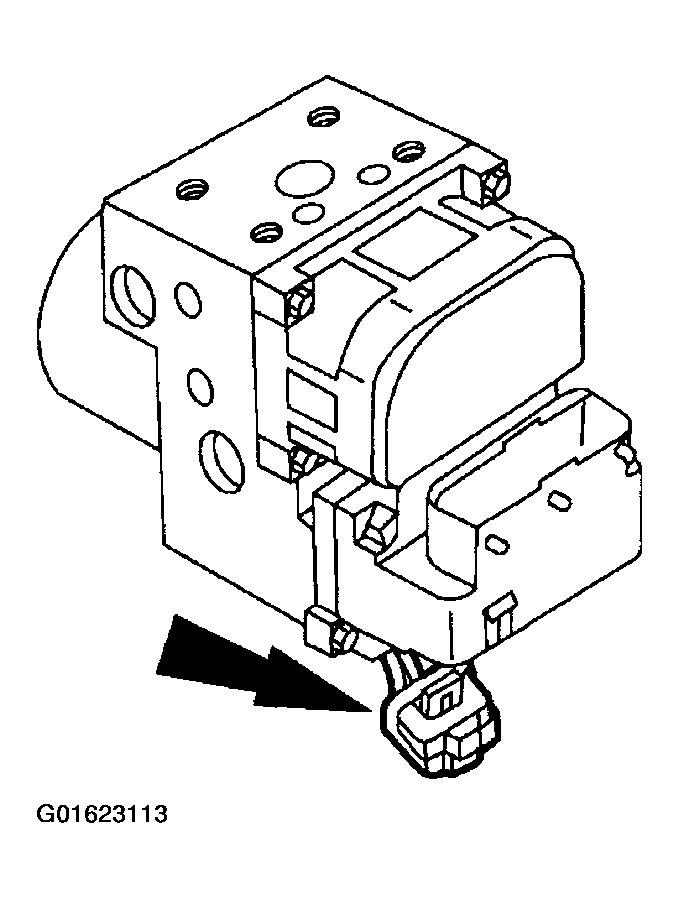

Fig 1: Removing Pump Motor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the anti-lock-brake control module screws.

Fig 2: Removing Anti-Lock-Brake Control Module Screws
Courtesy of FORD MOTOR CO.
Remove the anti-lock-brake control module from the HCU.
