Pinpoint Test H: Anti-Lock Brake Sensor Input Signal Missing

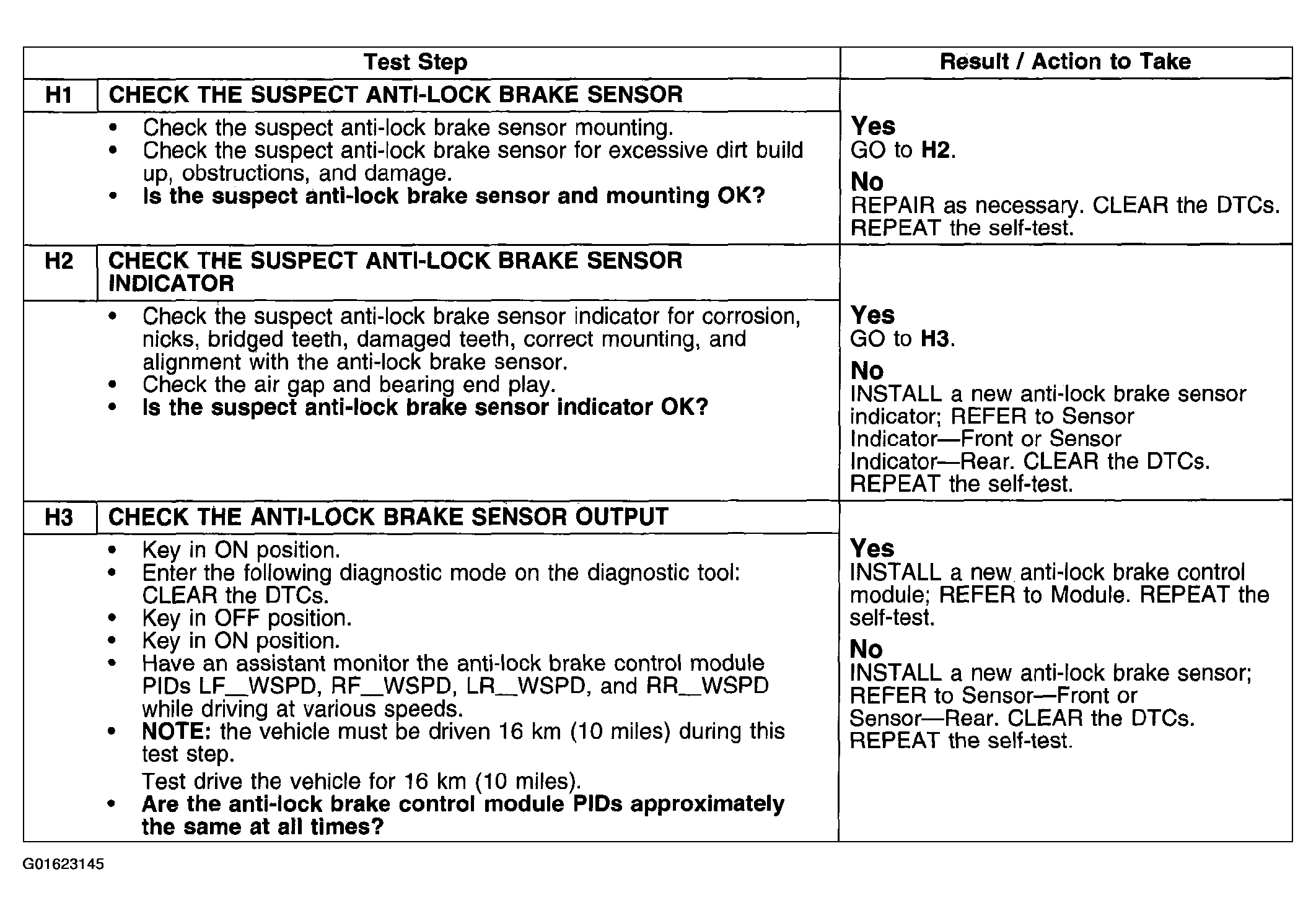

Fig 1: Pinpoint Test H: Anti-Lock Brake Sensor Input Signal Missing (H1-H3)
G01623145Courtesy of FORD MOTOR CO.
