Pinpoint Test K: Poor Vehicle Tracking During Anti-Lock Function

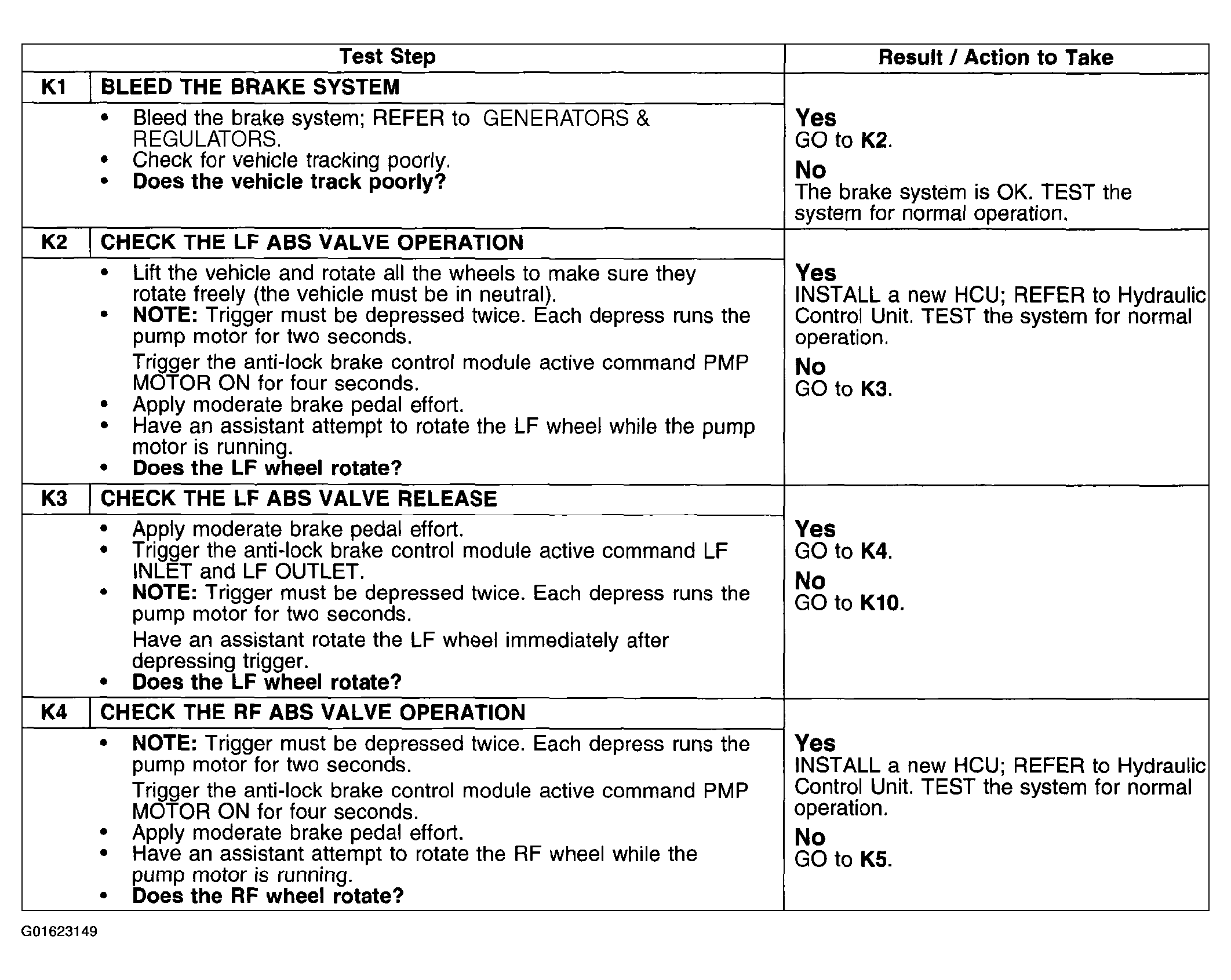

Fig 1: Pinpoint Test K: Poor Vehicle Tracking During Anti-Lock Function (K1-K4)

Courtesy of FORD MOTOR CO.

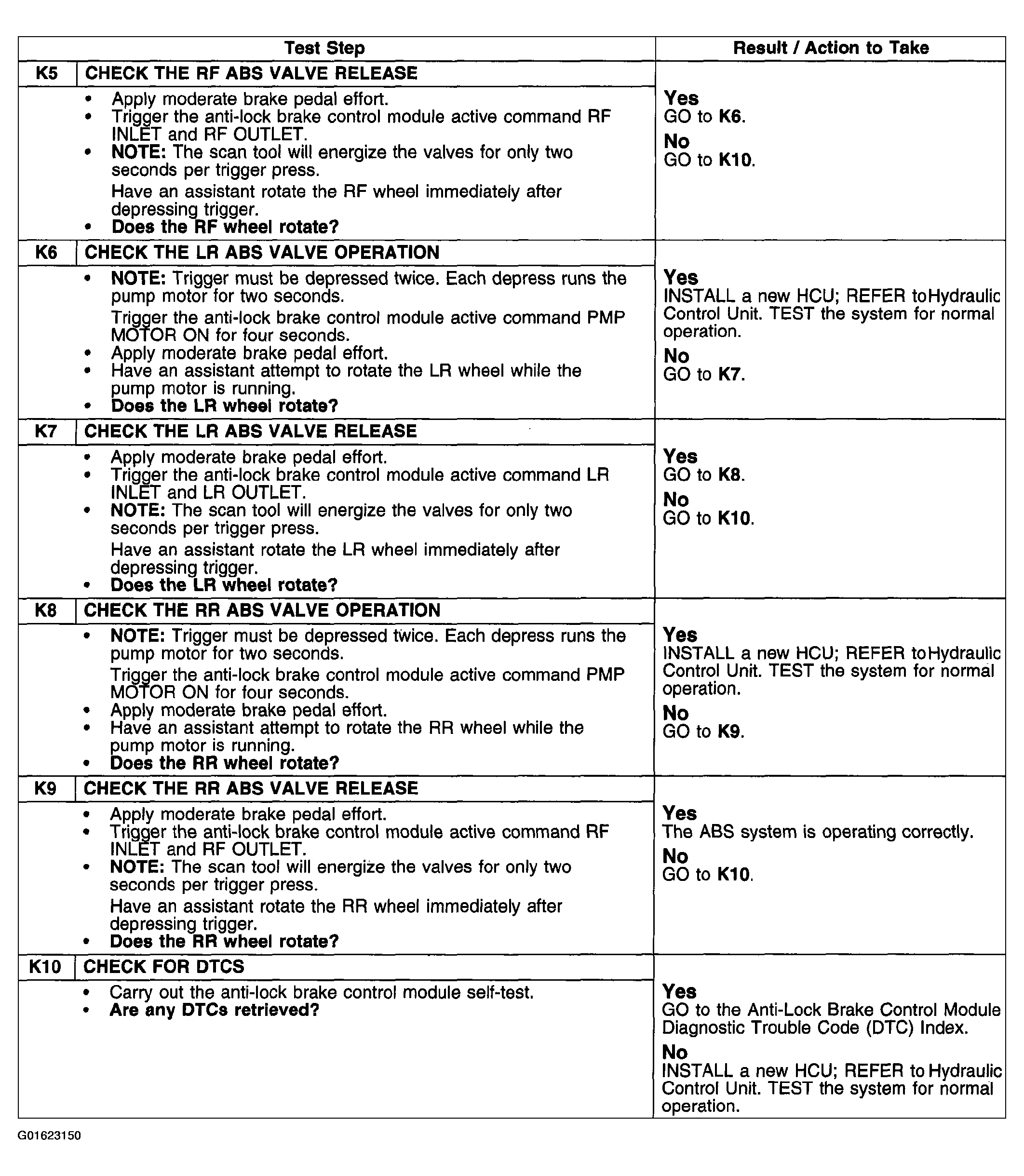

Fig 2: Pinpoint Test K: Poor Vehicle Tracking During Anti-Lock Function (K5-K10)

Courtesy of FORD MOTOR CO.
