Control Assembly: Removal

Remove the center instrument panel register. For additional information, refer to AIR DISTRIBUTION & FILTERING .
Remove the screws.

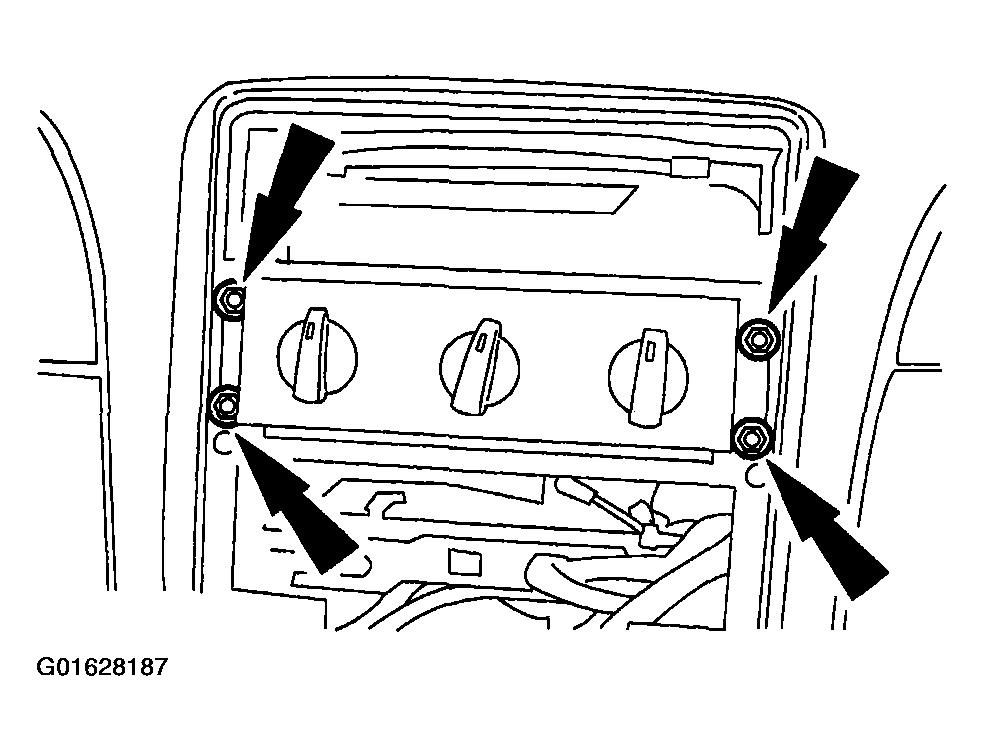

Fig 1: Removing Center Instrument Panel Register Screws
Courtesy of FORD MOTOR CO.
Disconnect the connectors.

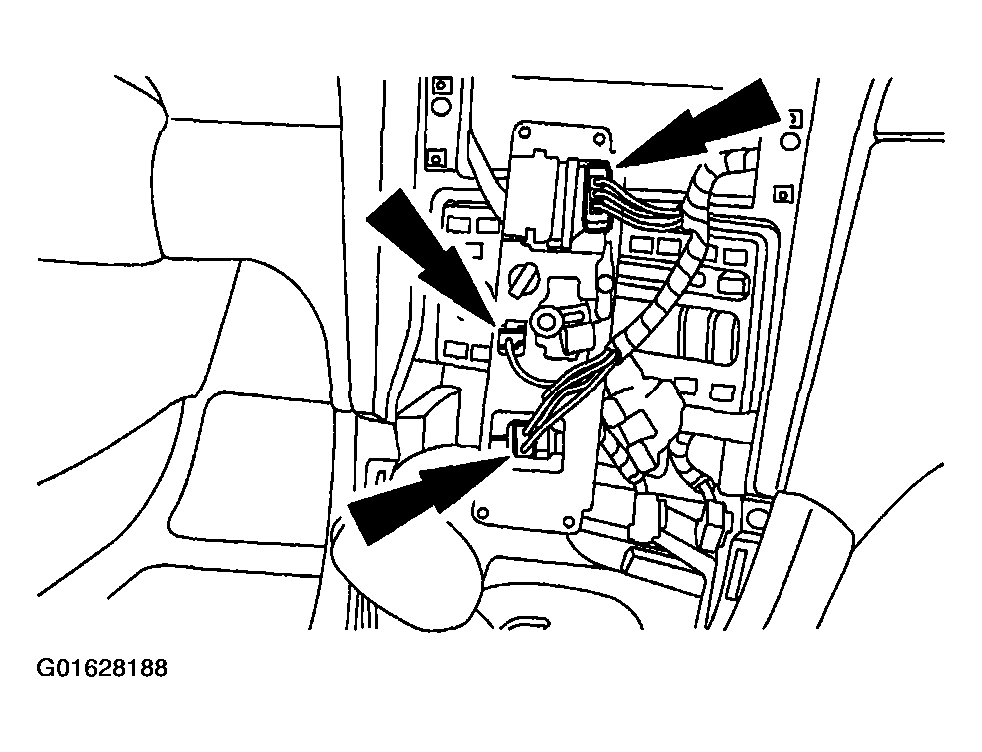

Fig 2: Disconnecting Electrical Connectors
Courtesy of FORD MOTOR CO.
Using the special tool, disconnect the temperature control cable from the control head.

Fig 3: Disconnecting Temperature Control Cable From Control Head
Courtesy of FORD MOTOR CO.
Remove the nuts and disconnect the vacuum connector.

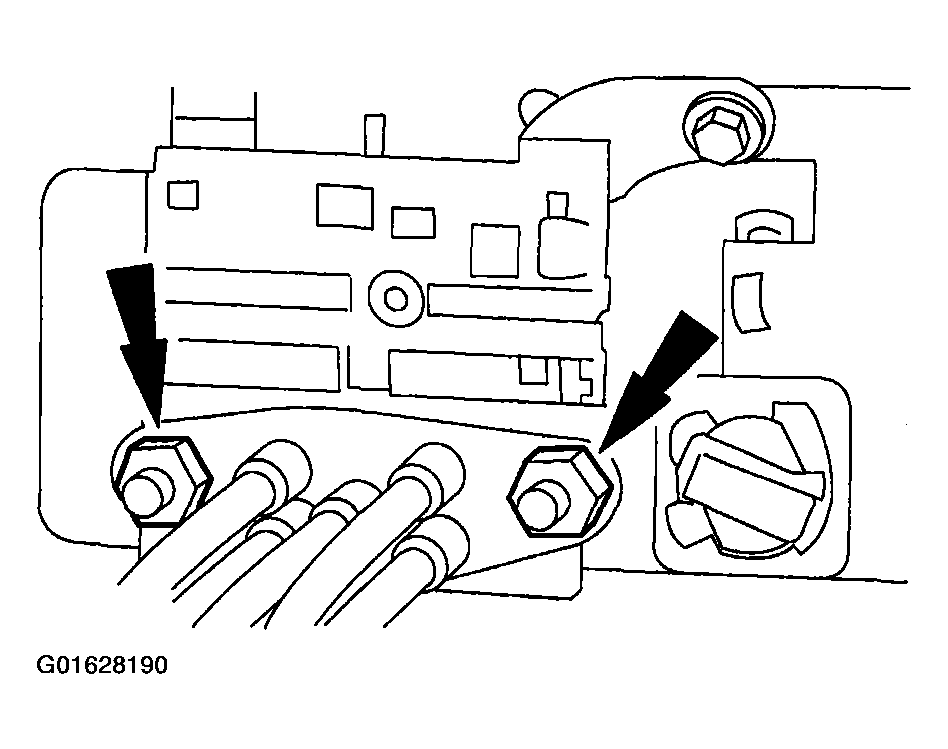

Fig 4: Removing Nuts And Disconnecting Vacuum Connector
Courtesy of FORD MOTOR CO.
