System Flushing - CIII Power Steering Pump

WARNING: Do not mix oil types. Any mixture or any unapproved oil can lead to seal deterioration and leaks. A leak can ultimately cause loss of fluid, which can result in a loss of power steering assist.
  1. Remove the fuel pump fuse from the battery junction box.
  2. Disconnect the power steering return hose. Plug the reservoir.

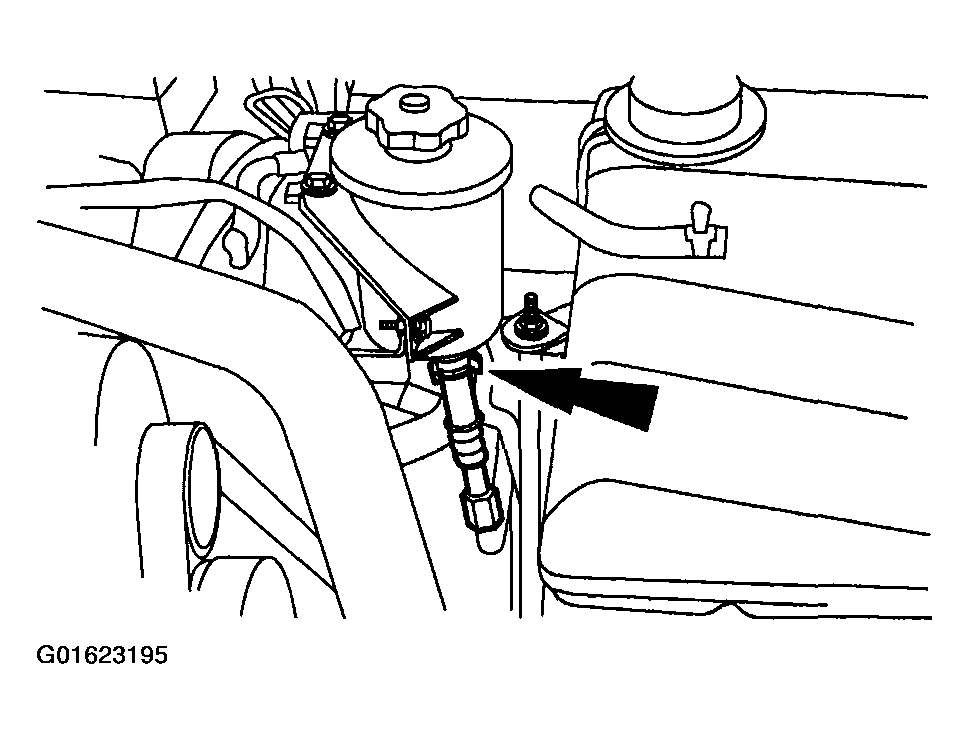

    Fig 1: Disconnecting Power Steering Return Hose
    G01623195Courtesy of FORD MOTOR CO.
  3. Attach an extension hose between the power steering return hose and an empty container.
  4. Raise the front wheels off the floor.
  5. Check the fluid level. If necessary, fill the reservoir to the correct level.
    • Use Motorcraft MERCON® Multi-Purpose ATF XT-2QDX or MERCON® equivalent.
    6. CAUTION: Do not crank the engine for more than 15 seconds at a time. Allow the starter to cool for 1 minute before cranking again. Premature starter failure can occur
    CAUTION: Do not hold the steering wheel against the stops for more than three to five seconds at a time. Damage to the power steering pump could occur
  6. Turn the steering wheel from stop-to-stop while cranking the engine until the fluid exiting the power steering return hose is clear of all contamination and foreign material.
    • Use Motorcraft MERCON® Multi-Purpose ATF XT-2QDX or MERCON® equivalent as needed.
  7. Lower the vehicle.
  8. Disconnect the extension hose from the power steering return hose. Remove the plug. Attach the power steering return hose to the reservoir.

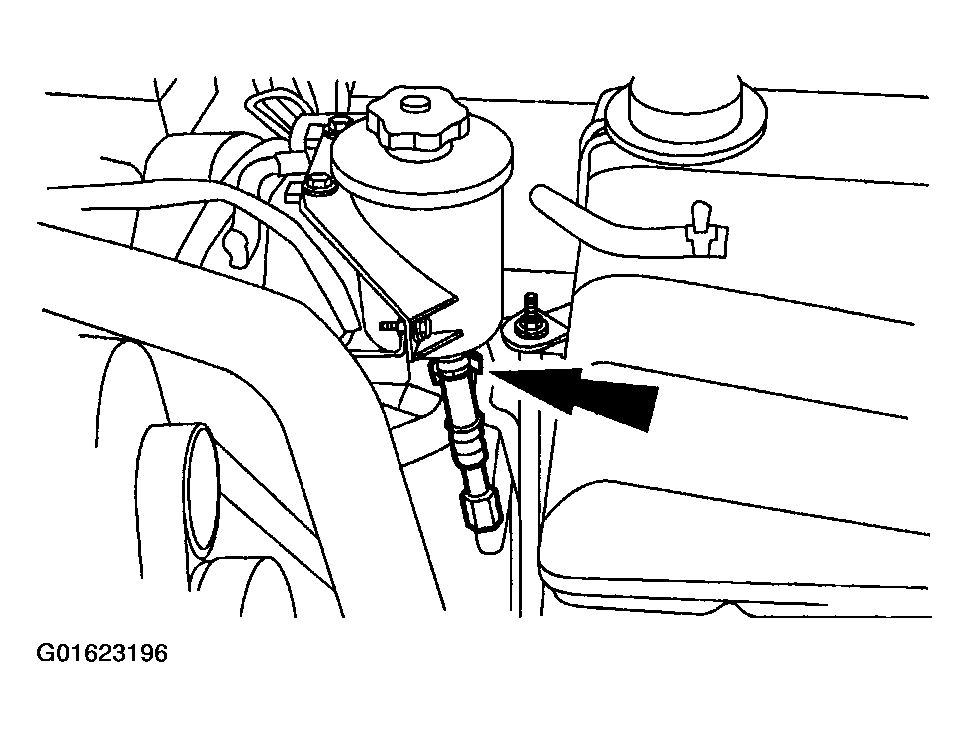

    Fig 2: Connecting Power Steering Return Hose To Reservoir
    G01623196Courtesy of FORD MOTOR CO.
    9. CAUTION: Do not overfill the reservoir
  9. Check the fluid level. If necessary, fill the reservoir to the correct level.
    • Use Motorcraft MERCON® Multi-Purpose ATF XT-2QDX or MERCON® equivalent.
  10. Install the fuel pump fuse.
    11. CAUTION: Do not hold the steering wheel against the stops for more than three to five seconds at a time. Damage to the power steering pump will occur
  11. Start the engine and turn the steering wheel from stop-to-stop.
    12. CAUTION: Do not overfill the reservoir
    NOTE: If the power steering system is noisy and is accompanied by evidence of aerated fluid it will be necessary to purge the power steering system
  12. Check the fluid level. If necessary, fill the reservoir to the correct level.
    • Use Motorcraft MERCON® Multi-Purpose ATF XT-2QDX or MERCON® equivalent.
