Wheel Alignment Specifications

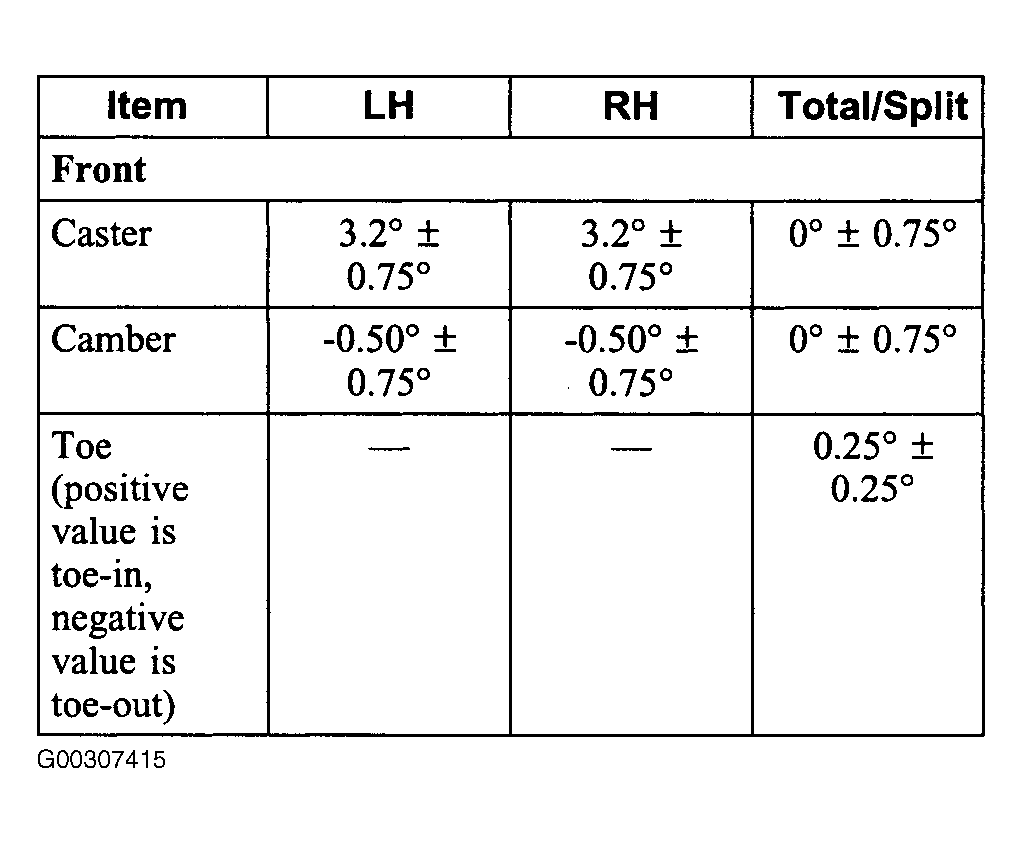

Fig 1: Wheel Alignment Specifications (Base & GT)
G00307415Courtesy of FORD MOTOR CO.

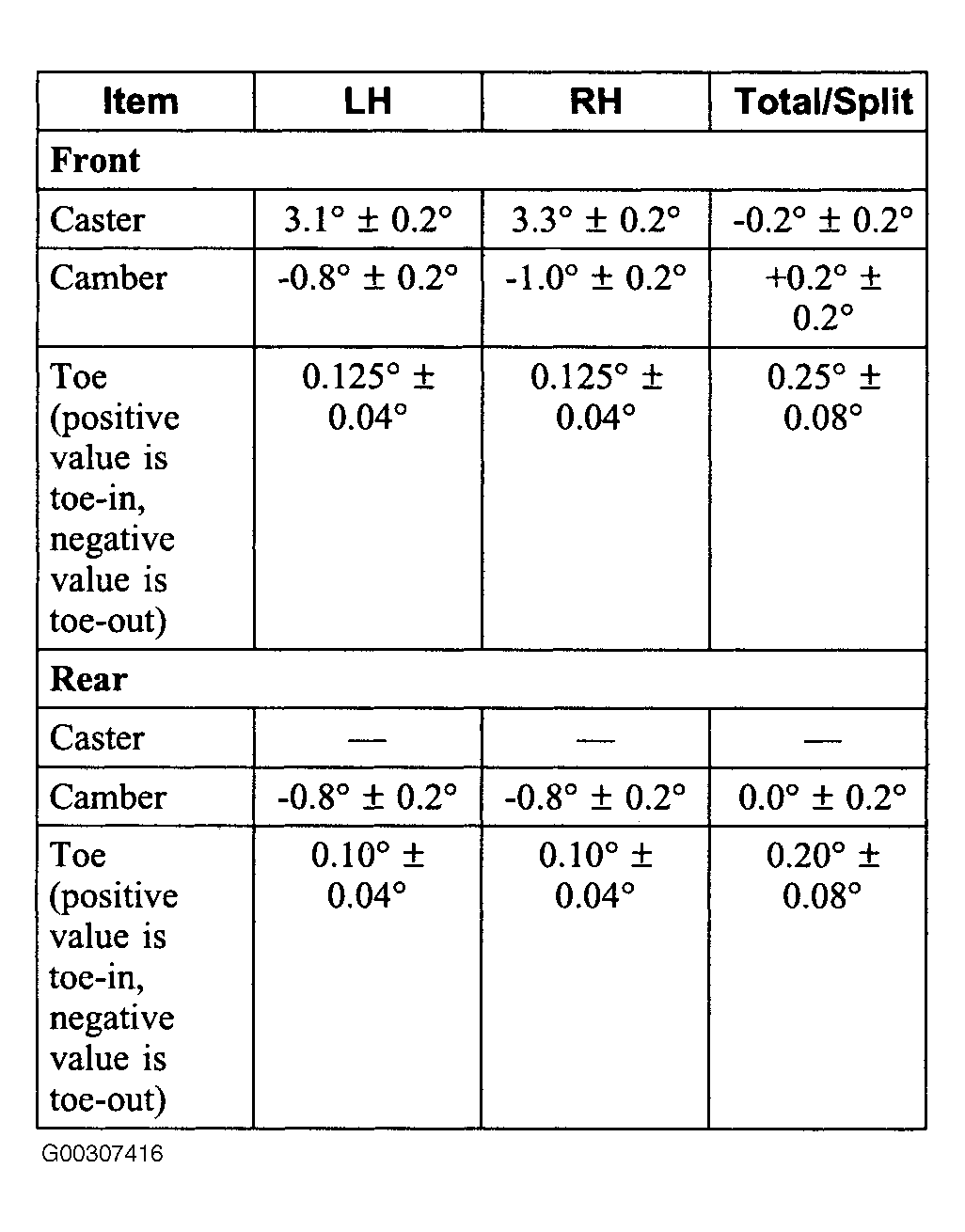

Fig 2: Wheel Alignment Specifications (Cobra)
G00307416Courtesy of FORD MOTOR CO.
