Digital Transmission Range (Tr) Sensor: Removal

  1. Disconnect the battery ground cable. For additional information, refer to BATTERY, MOUNTING AND CABLES .
  2. Raise and support the vehicle.
  3. Disconnect the connector.
    Fig 1: Disconnecting Connector
    G01626742Courtesy of FORD MOTOR CO.
  4. Disconnect the manual lever shift control cable.

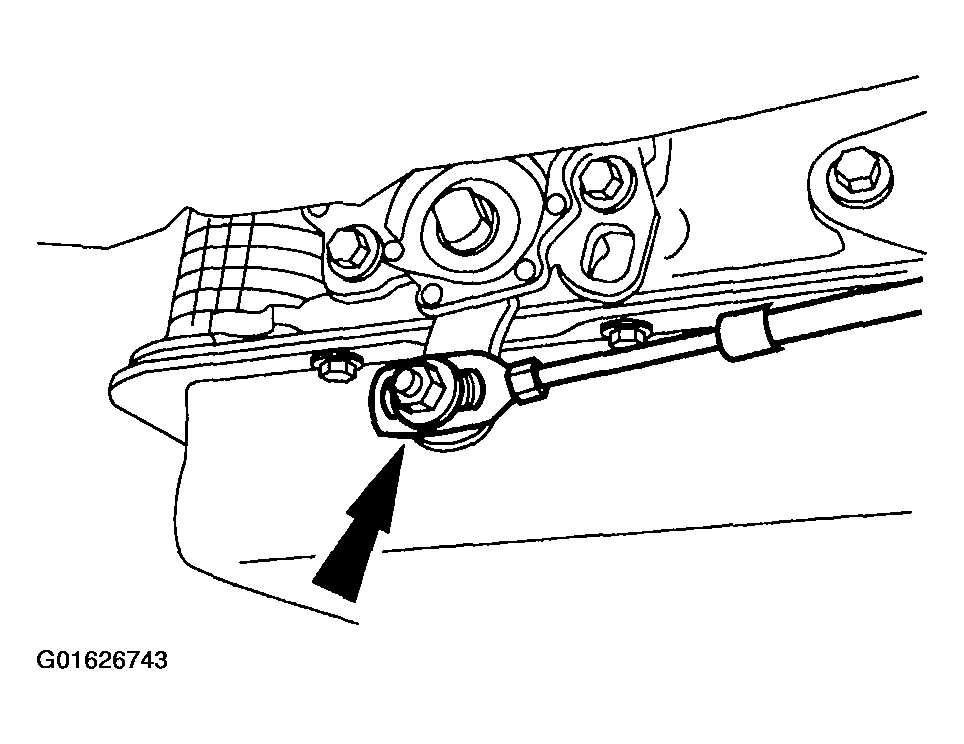

    Fig 2: Disconnecting Manual Lever Shift Control Cable
    G01626743Courtesy of FORD MOTOR CO.
  5. Remove the digital TR bolts and the TR sensor.
    Fig 3: Removing Digital TR Bolts
    G01626744Courtesy of FORD MOTOR CO.
