Home › Ford › 2003 › Mustang Mach 1, Automatic › Repair and Diagnosis › Transmission › Automatic Trans › Automatic Transmission › Specifications › Band And Clutch Application Chart

Band And Clutch Application Chart

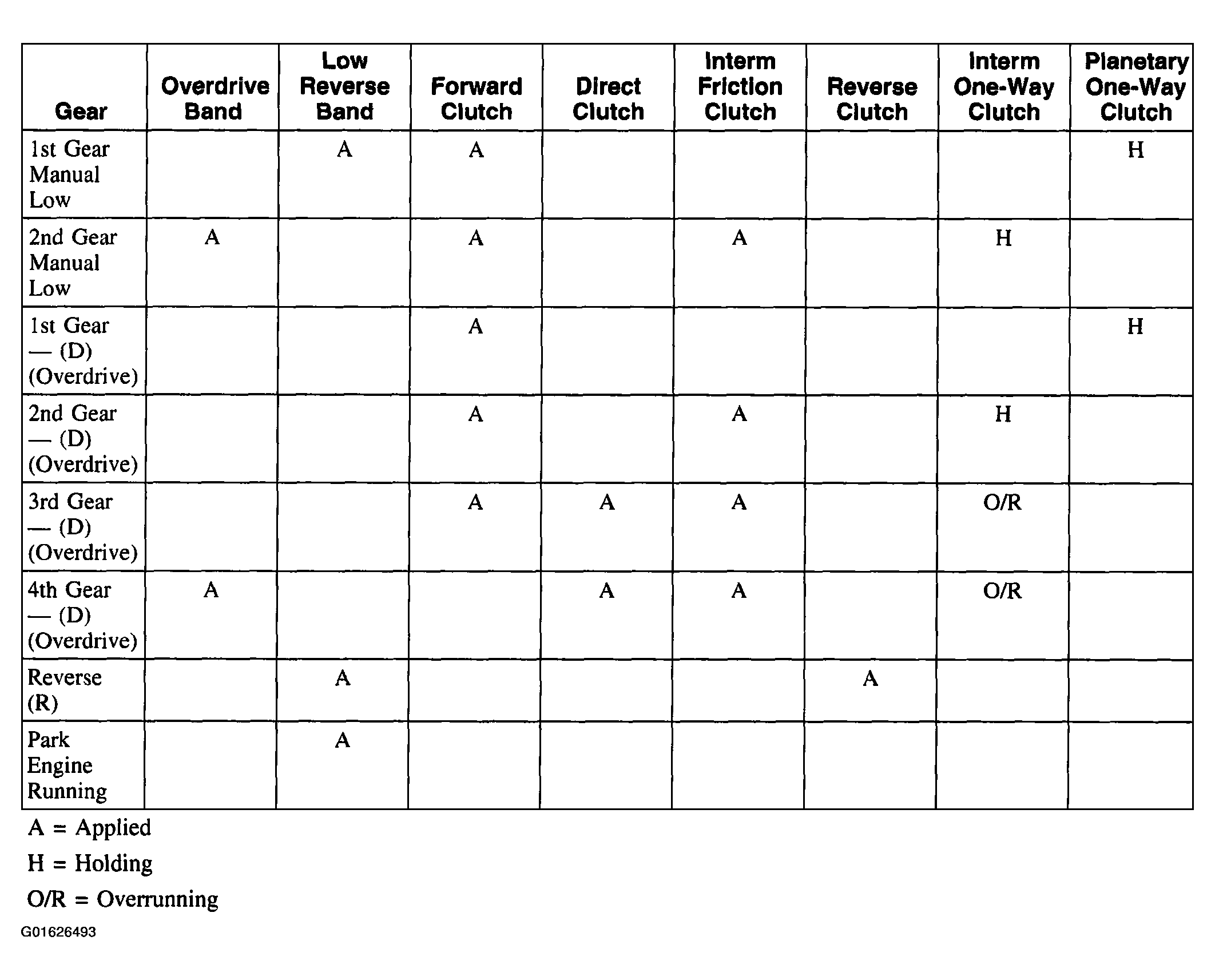

Fig 1: Identifying Band And Clutch Application Chart
G01626493Courtesy of FORD MOTOR CO.
