Inspection and Verification
- Verify the customer concern by operating the transmission external control.

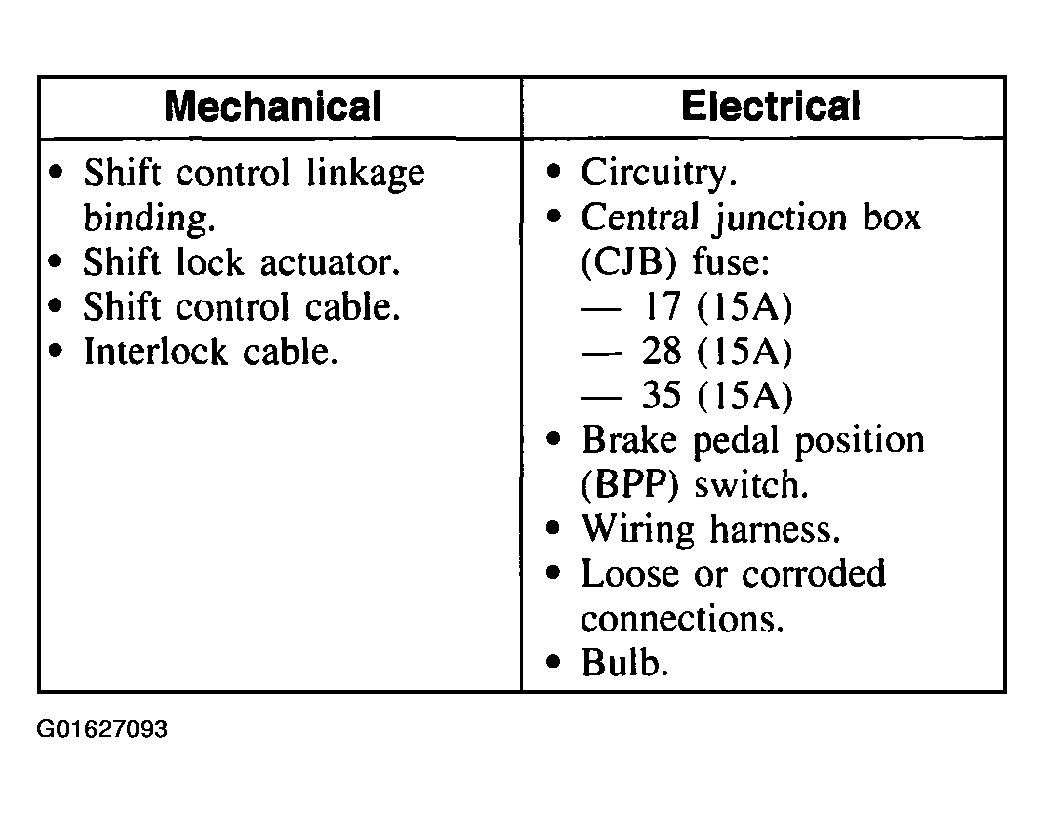

- Visually inspect for obvious signs of mechanical and electrical damage; refer to the Fig 1 .
- If the concern is not visually evident, determine the symptom. GO to SYMPTOM CHART .
